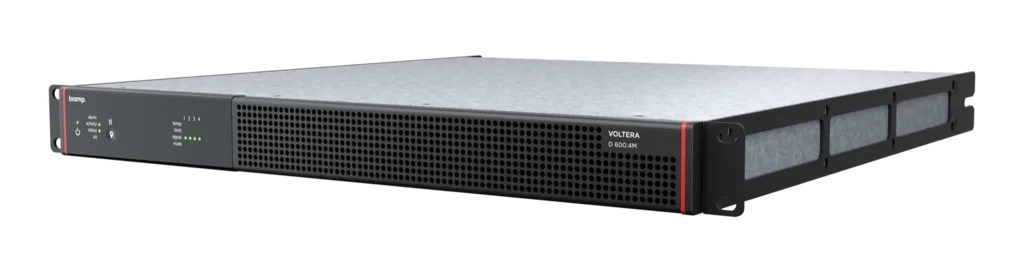

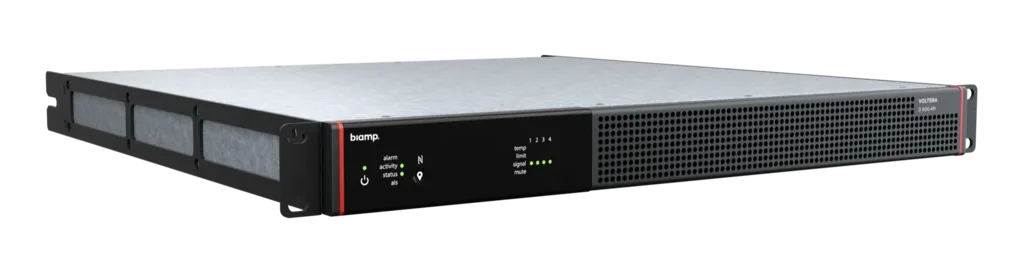

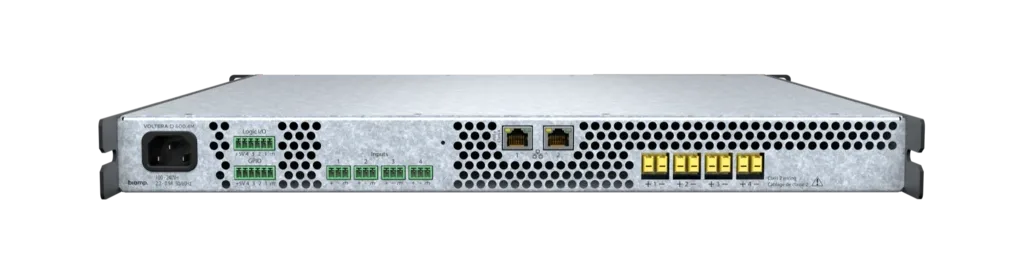

Biamp Voltera D 600.4M Amplifier

The Biamp Voltera D 600.4M is an amplifier built for sight and sound reinforcement systems. Frequency response is quoted at +/-0.5 dB (20 - 20000 Hz, 8 ohm, unweighted). THD+N is THD+N (1000 Hz, at 1 dB below max output) <0.05%; THD+N (20 - 20000 Hz for 1 W) <0.05%. Dynamic range is 117 dB.

Power handling is rated at Hi-Z (70 / 100 V): 150 W; 16 ohm: 150 W; 8 ohm: 150 W; 4 ohm: 150 W. Rated output power is 600 W; Maximum output voltage: 145 Vpk; Maximum output current: 23 Apk. Network connections are Ports: 2 1000Base-T ports; Networked media formats supported: Dante, AES67 and AVB; Network modes supported: Converged, split and redundant. Power consumption is 100-240 VAC, 50/60 Hz.

Frequency Response	+/-0.5 dB (20 - 20000 Hz, 8 ohm, unweighted)
Power	Power per channel all channels driven: Hi-Z (70 / 100 V): 150 W; 16 ohm: 150 W; 8 ohm: 150 W; 4 ohm: 150 W
THD+N	THD+N (1000 Hz, at 1 dB below max output) <0.05%; THD+N (20 - 20000 Hz for 1 W) <0.05%
Dynamic Range	117 dB
Crosstalk	>70 dB
Network Connection(s)	Ports: 2 1000Base-T ports; Networked media formats supported: Dante, AES67 and AVB; Network modes supported: Converged, split and redundant
Dimensions (H x W x D)	1.7 inches (44 mm) rack rail to rear panel x 17.5 inches (444 mm) rack rail to rear panel x 16.9 inches (430 mm) rack rail to rear panel
Power Output	Total output all channels driven: 600 W; Maximum output voltage: 145 Vpk; Maximum output current: 23 Apk
