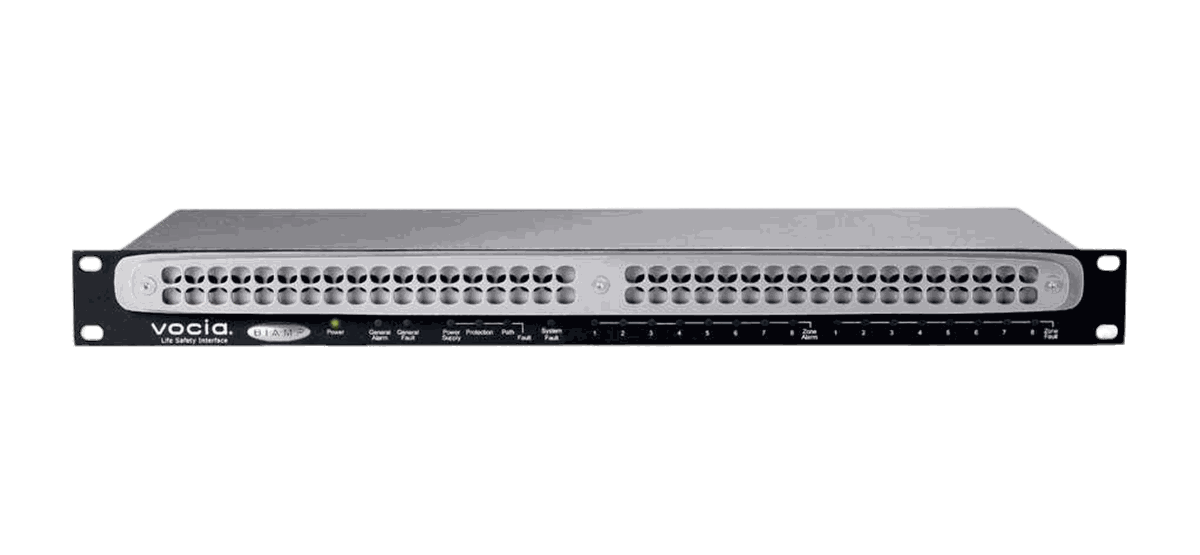

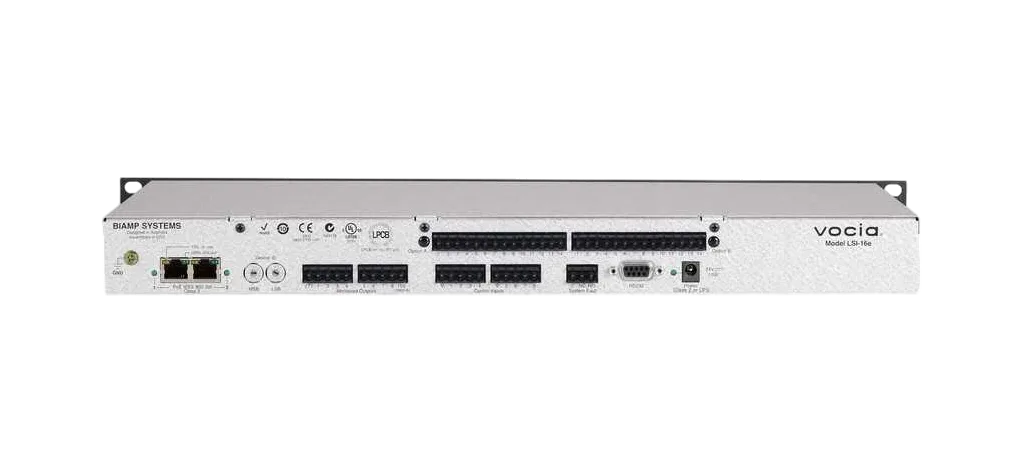

Biamp Vocia LSI-16e Interface

The Biamp Vocia LSI-16e is an interface built for emergency communication and life-safety systems. Inputs are CONTROL INPUYS: Number: Eight; Type: Opto Isolator LED; Cathode presented at input - pull low to enable; Sink Current: Min: 1mA; Max: 6mA.

Power handling is rated at Main: 24V DC 15W; PoE: 802.3af Class 3. It weighs 6.4 lbs (2.9 kg). It measures 1.75 inches (44.5 mm) high by 19.0 inches (483 mm) wide by 10.0 inches (254 mm) deep.

Power	Main: 24V DC 15W; PoE: 802.3af Class 3
Input Type	CONTROL INPUYS: Number: Eight; Type: Opto Isolator LED; Cathode presented at input - pull low to enable; Sink Current: Min: 1mA; Max: 6mA; Maximum Terminal Voltage: 24V
Ambient Operating Temperature Range	23-104 deg F (-5 - 40 deg C)
Humidity	0 - 95% non-condensing
Altitude	0-10,000 Feet (0-3000 Meters) MSL
Weight	6.4 lbs (2.9 kg)
Dimensions (H x W x D)	1.75 inches (44.5 mm) x 19.0 inches (483 mm) x 10.0 inches (254 mm)
RS-232	PORT: Type: DTE; Baud Rate: 57600
