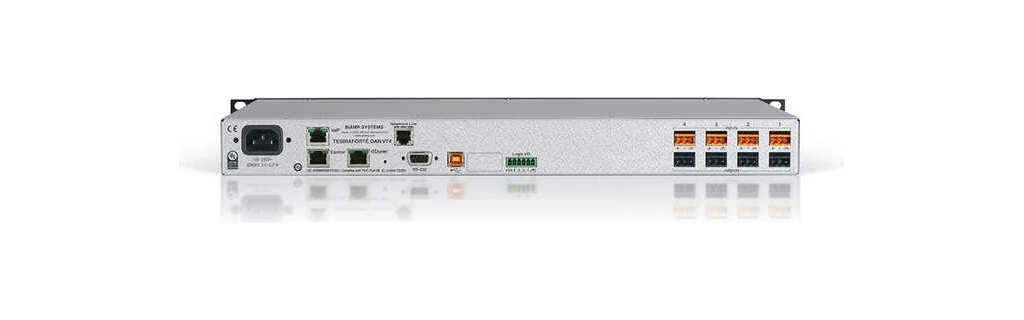

Biamp TesiraFORTE DAN VT4 Audio DSP

The Biamp TesiraFORTE DAN VT4 is an audio dsp built for business audio and installed sound systems. Frequency response is quoted at 20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB. Maximum output is (selectable): +24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu. Inputs are USB: Bit Depth: 16- or 24-bit Number of Channels: up to 8 Sample Rate: 48kHz.

Nominal impedance is (balanced): 8k ohms. Power consumption is 100-240VAC 50/60Hz: < 35W.

Frequency Response	20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB
Impedance	(balanced): 8k ohms
Maximum Output	(selectable): +24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu
Maximum Input	+24dBu
Input Type	USB: Bit Depth: 16- or 24-bit Number of Channels: up to 8 Sample Rate: 48kHz
Dynamic Range	(in presence of signal): 22Hz to 22kHz, 0dB gain: > 108dB
Dimensions (H x W x D)	1.75 inches (44 mm) x 19.0 inches (483 mm) x 10.5 inches (267 mm)
Sampling Rate	48kHz
