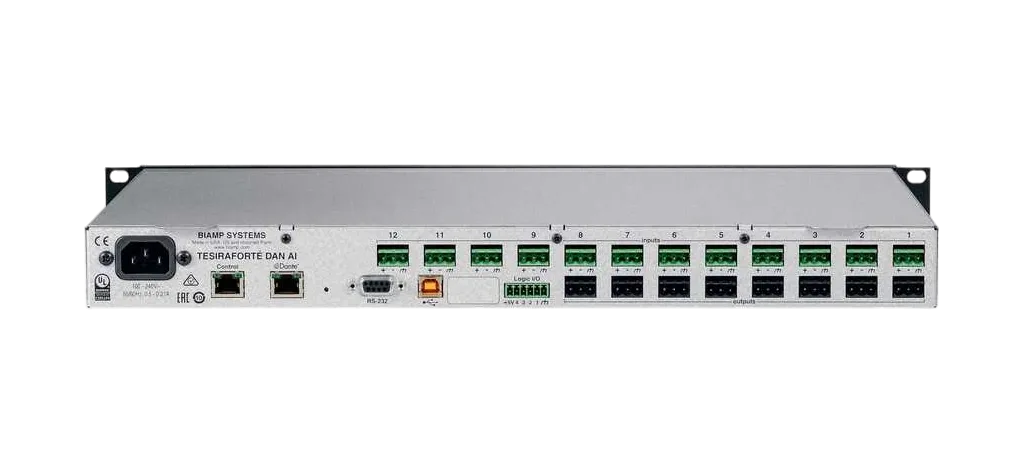

Biamp TesiraFORTE DAN AI Audio DSP

The Biamp TesiraFORTE DAN AI is an audio dsp built for meeting rooms and conference AV. Frequency response is quoted at 20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB. Maximum output is (selectable): +24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu. Inputs are USB: Bit Depth: 16- or 24-bit Number of Channels: up to 8 Sample Rate: 48kHz.

Nominal impedance is (balanced): 8k ohms. Power consumption is 100-240VAC 50/60Hz: < 35W.

Frequency Response	20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB
Impedance	(balanced): 8k ohms
Maximum Output	(selectable): +24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu
Maximum Input	+24dBu
Input Type	USB: Bit Depth: 16- or 24-bit Number of Channels: up to 8 Sample Rate: 48kHz
Audio	Fixed I/O DSP with 32 bi-directional channels of Dante digital audio, 12 analog inputs, 8 analog outputs, and includes up to 8 channels of configurable USB audio
Dimensions (H x W x D)	1.75 inches (44 mm) x 19.0 inches (483 mm) x 10.5 inches (267 mm)
Dynamic Range	(in presence of signal): 22Hz to 22kHz, 0dB gain: > 108dB
