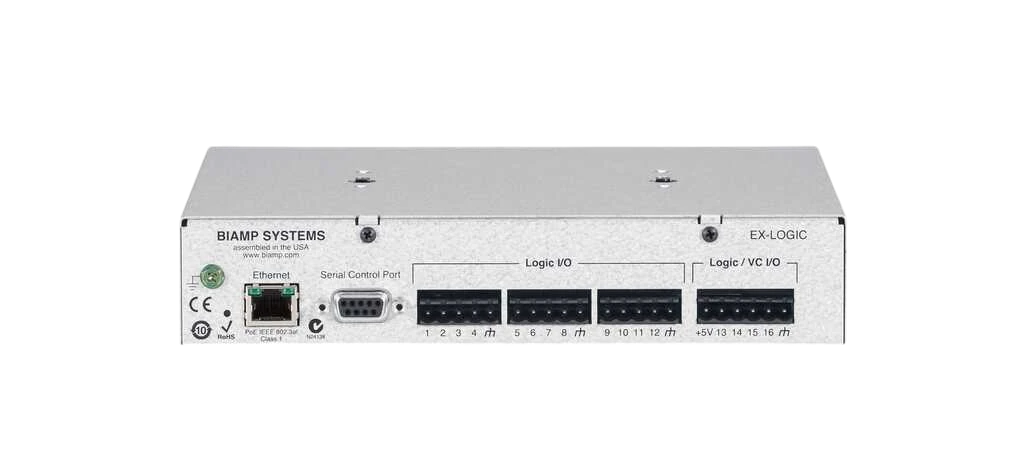

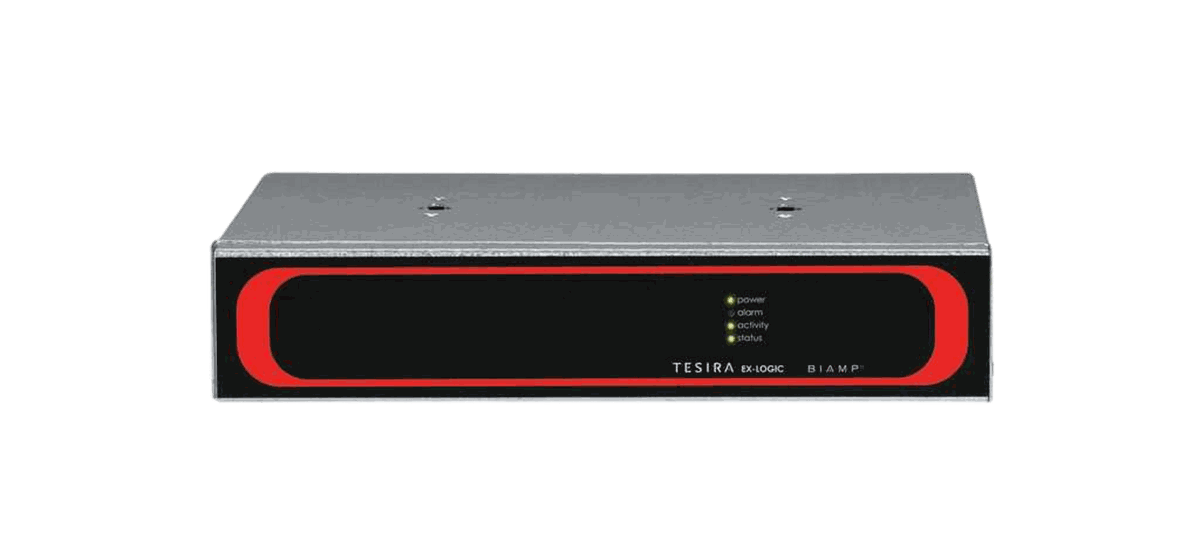

Biamp Tesira EX-LOGIC Tesira Expander

The Biamp Tesira EX-LOGIC is a tesira expander built for sight and sound reinforcement systems. Power handling is rated at PoE (IEEE 802.3at Class 1, 4W).

Network connections are Ethernet. Control connection is Logic Input Trigger: Contact Closure or 5V TTL; Logic Output Type: Open Collector; Sink 40V/300mA per output; LED Driver: 5V/10mA per output.

Power	PoE (IEEE 802.3at Class 1, 4W)
Network Connection(s)	System Network Connection: Ethernet
Control	Logic Input Trigger: Contact Closure or 5V TTL; Logic Output Type: Open Collector; Sink 40V/300mA per output; LED Driver: 5V/10mA per output
Weight	2 lbs (1 kg)
Certifications	FCC Part 15B (USA); CE Marked* (Europe); RCM (Australia); EAC (Eurasian Customs Union); RoHS Directive (Europe); *Requires PoE insertion device to be CE marked
Dimensions (H x W x D)	1.75 inches (44 mm) x 8.5 inches (216 mm) x 7.75 inches (197 mm)
TAA Compliance	TAA Compliant
