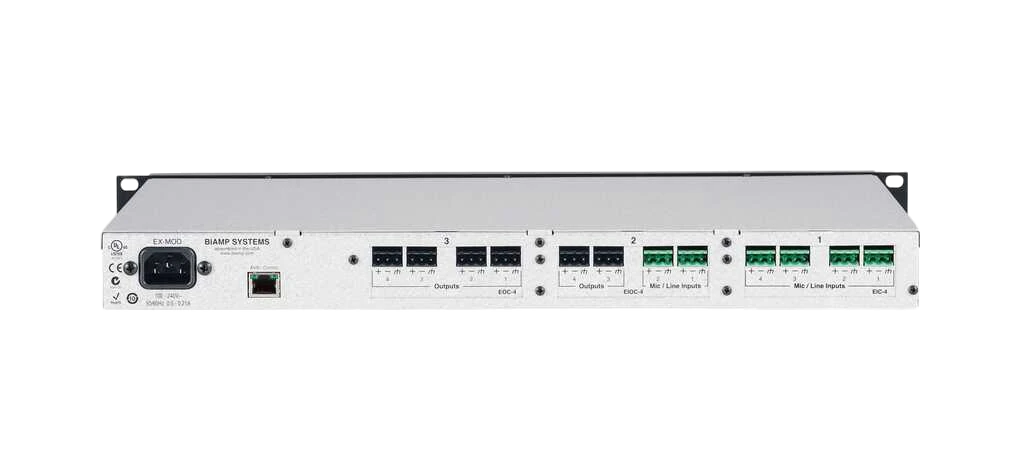

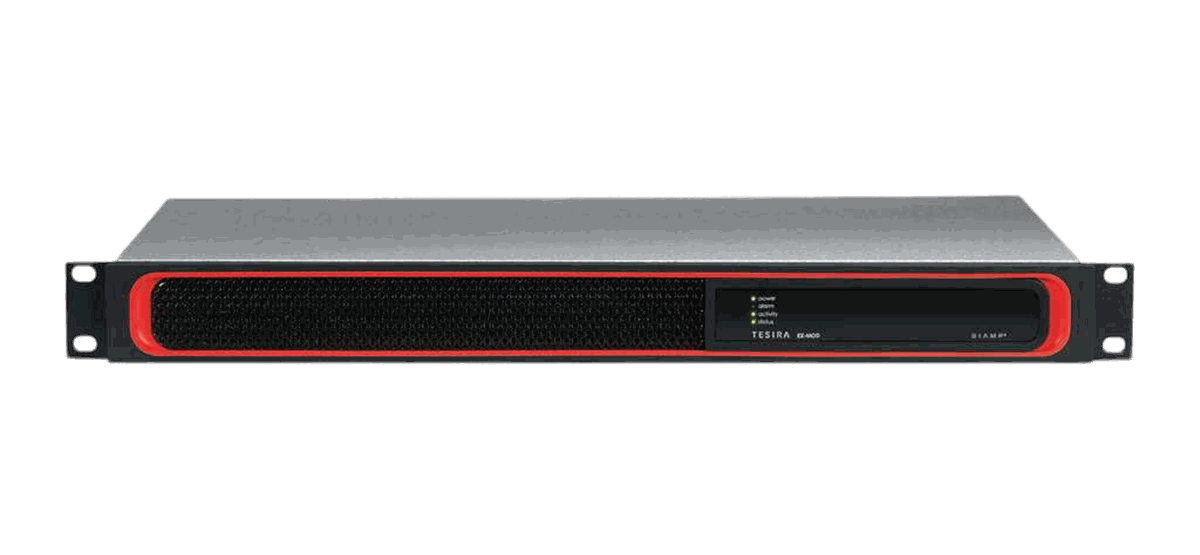

Biamp Tesira EX-MOD Expander

The Biamp Tesira EX-MOD is a tesira expander built for business audio and installed sound systems. Frequency response is quoted at (20Hz~20kHz @ +4dBu): +0/-0.25dB. Maximum output is +24dBu. THD+N is (20Hz~20kHz): @ 0dB Gain, +4dBu In: < 0.006%; @ 54dB Gain, -50dBu In: < 0.040%.

Nominal impedance is (balanced):* 8k ohms. Power consumption is (100~240VAC 50/60Hz): < 40W.

Frequency Response	(20Hz~20kHz @ +4dBu): +0/-0.25dB
Impedance	(balanced):* 8k ohms
Maximum Output	+24dBu
THD+N	(20Hz~20kHz): @ 0dB Gain, +4dBu In: < 0.006%; @ 54dB Gain, -50dBu In: < 0.040%
Dynamic Range	(20Hz~20kHz, 0dB):* > 108dB
Sampling Rate	48kHz
Dimensions (H x W x D)	1.75 inches (44 mm) x 10.5 inches (267 mm) x 19.0 inches (483 mm)
Crosstalk	(channel to channel @ 1kHz): @ 0dB Gain, +4dBu In: < -85dB; @ 54dB Gain, -50dBu In: < -75dB
