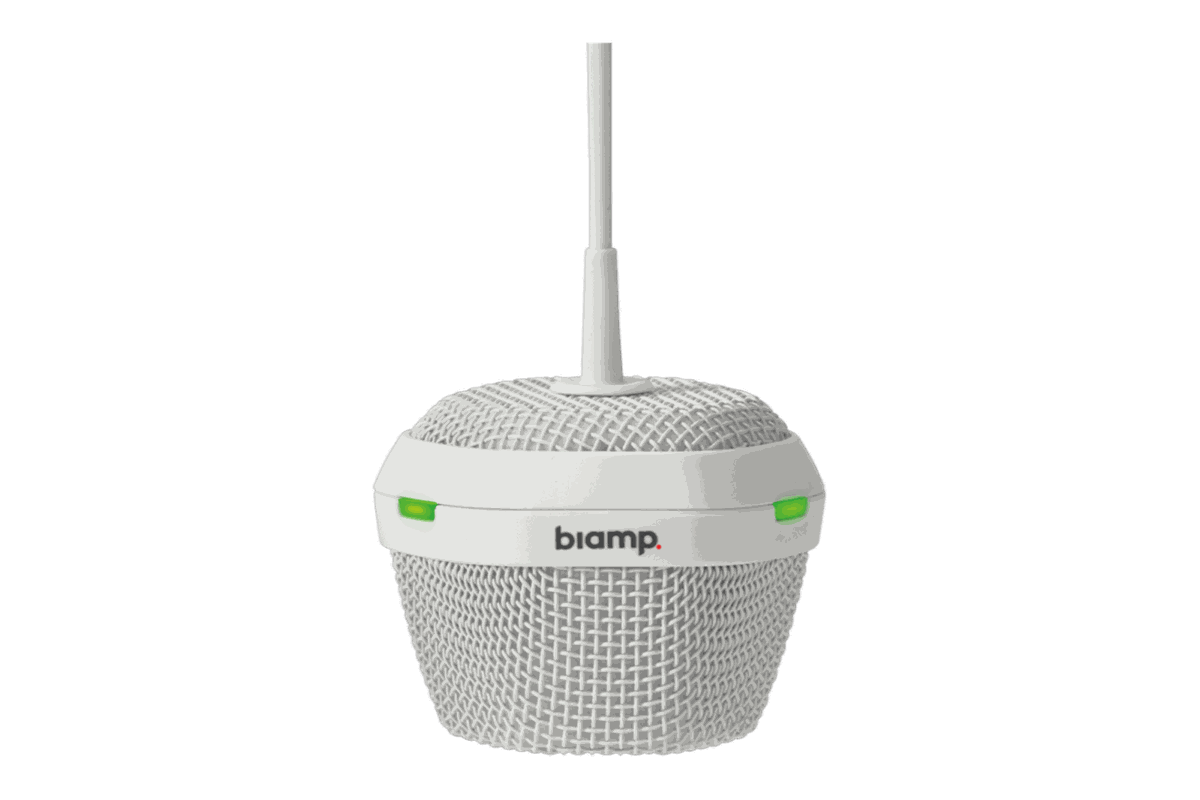

Biamp Parle TCM-1EX Microphone

The Biamp Parle TCM-1EX is a microphone built for meeting rooms and conference AV. Frequency response is quoted at (150 Hz - 16 kHz): +/- 3dB. Rated SPL is (at 0.5% THD): 106dB. Dynamic range is (THD+N < 10%): 92dB, A-Weighted.

Power handling is rated at Plenum Box: Custom/Proprietary. It weighs Microphone: 0.4 lbs (0.2 kg); Plenum Box: 0.8 lbs (0.4 kg). It measures Microphone: 2 inches (51 mm); Plenum Box: 2 inches (51 mm) high by Microphone: 2.5 inches (63 mm); Plenum Box: 4 inches (102 mm) wide by Microphone: 2.5 inches (63 mm); Plenum Box: 5.25 inches (133 mm) deep. Order it in 2 versions: TCM-1EXBlack, Pendant Microphone (White).

Frequency Response	(150 Hz - 16 kHz): +/- 3dB
Power	Plenum Box: Custom/Proprietary
SPL	(at 0.5% THD): 106dB
Dynamic Range	(THD+N < 10%): 92dB, A-Weighted
Included Accessories	Plenum Box (included): Connectors: Two RJ-45: one between TCM-1EX plenum box and TCM-1 or TCM-1A, the other between TCM-1EX plenum box and additional TCM-1EX plenum box
Weight	Microphone: 0.4 lbs (0.2 kg); Plenum Box: 0.8 lbs (0.4 kg)
Dimensions (H x W x D)	Microphone: 2 inches (51 mm); Plenum Box: 2 inches (51 mm) x Microphone: 2.5 inches (63 mm); Plenum Box: 4 inches (102 mm) x Microphone: 2.5 inches (63 mm); Plenum Box: 5.25 inches (133 mm)
Microphone	Pendant: Microphone Technology: 8-Element Digital Array; Polar Pattern: Beamformed; Sensitivity (94dB SPL, 1kHz): > 70dB; Digital Interface: Custom/Proprietary
