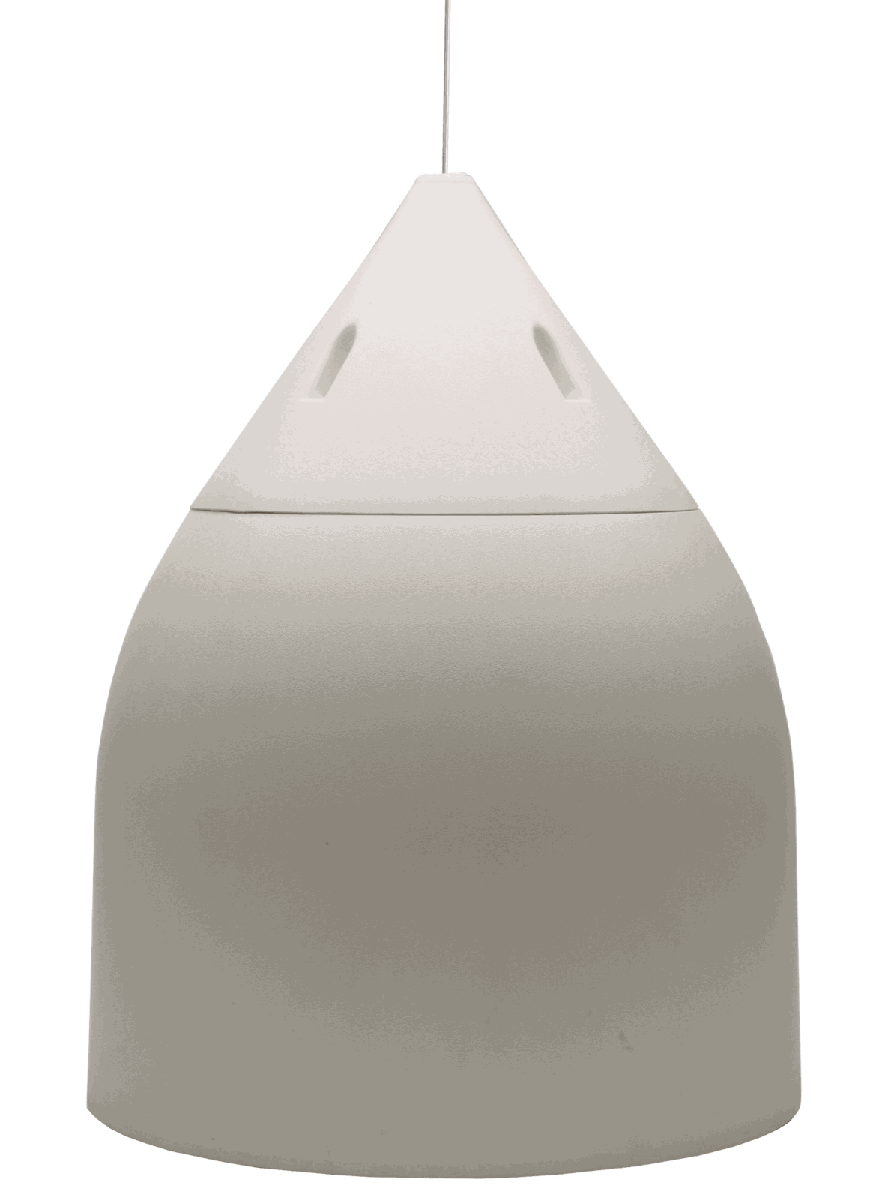

Biamp Desono DP6 Pendant Loudspeaker

The Biamp Desono DP6 is a two-way, full-range, coaxial pendant mount loudspeaker, 8 ohm or 70V/100V operation built for business audio and installed sound systems. Drivers are LF 1 x 6.5-inch; HF 1 x 1-inch exit compression driver; Driver Protection: Self-resetting solid state circuit breaker. Its operating range is 65 Hz - 22 kHz. Frequency response is quoted at 80 Hz - 20 kHz (+/-5 dB).

Nominal impedance is 8 ohms; Minimum Impedance: 6.9 ohms @ 210 Hz. Transformer tap settings are 70V: 60W, 30W, 15W, 7.5W and low impedance; 100V: 60W, 30W, 15W. Control connection is Front-face wattage / low impedance selector switch. The enclosure is Baffle: Reflex loaded UL 94V-0 rated ABS. Order it in 2 versions: DP6-B, DP6-W.

Loudspeaker Type	Two-way, full-range, coaxial pendant mount loudspeaker, 8 ohm or 70V/100V operation
Drivers	LF 1 x 6.5-inch; HF 1 x 1-inch exit compression driver; Driver Protection: Self-resetting solid state circuit breaker
Operating Range	65 Hz - 22 kHz
Frequency Response	80 Hz - 20 kHz (+/-5 dB)
Sensitivity	(1W/1m): 94 dB SPL (125 Hz to 12.5 kHz 1/3 octave bands); 92 dB SPL (250 Hz to 4 kHz speech range)
Impedance	Nominal Impedance: 8 ohms; Minimum Impedance: 6.9 ohms @ 210 Hz
Maximum Output	114 dB SPL / 120 dB SPL (peak 8 ohm)
Maximum Input	100W continuous, 250W program; 28 volts RMS, 63 volts momentary peak
