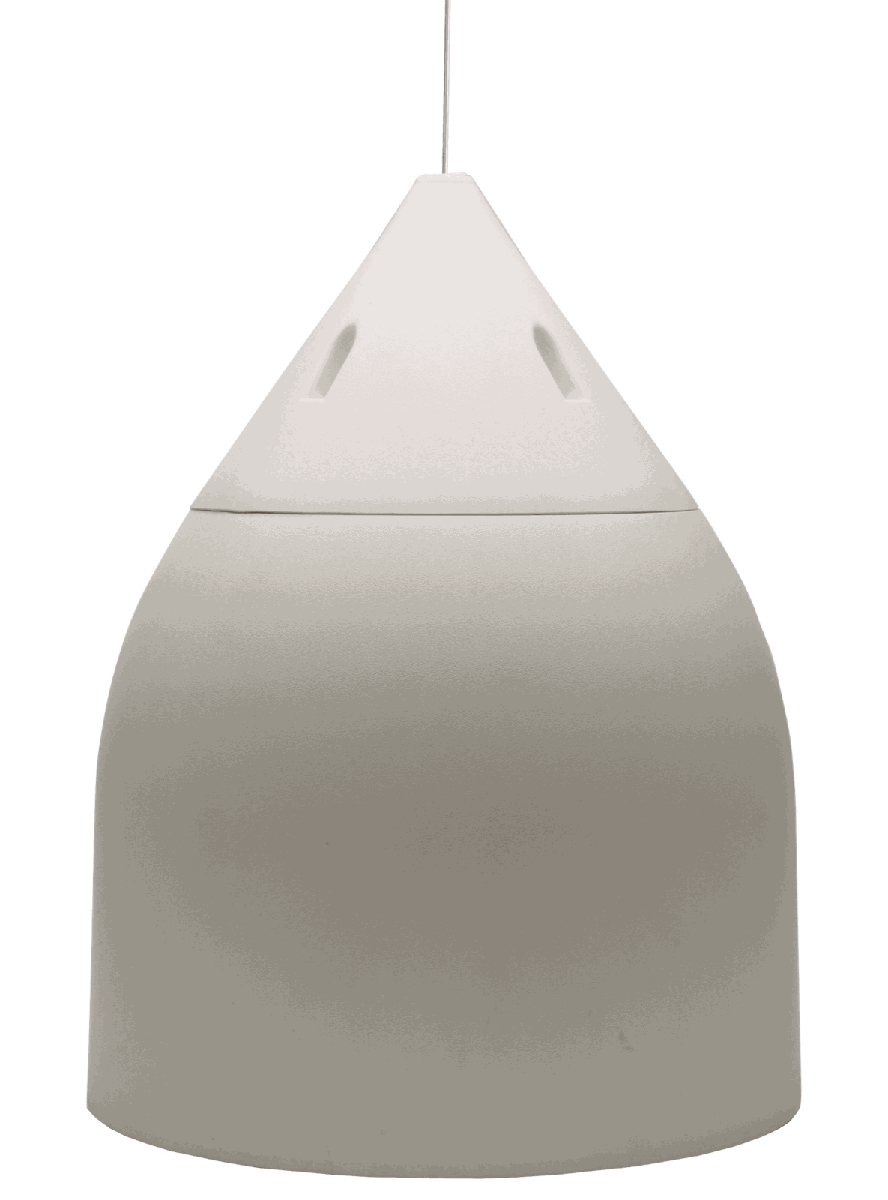

Biamp Desono DP8 Pendant Loudspeaker

The Biamp Desono DP8 is a 2-way, full-range, coaxial pendant mount loudspeaker, 8 ohm or 70V/100V operation built for business audio and installed sound systems. Drivers are LF 1 x 8-inch; HF 1 x 1.25-inch exit compression driver; Driver Protection: Self-resetting solid state circuit breaker. Its operating range is 60 Hz - 22 kHz. Frequency response is quoted at 80 Hz - 20 kHz (+/-5 dB).

Nominal impedance is 8 ohms; Minimum Impedance: 5.6 ohms @ 200 Hz. Transformer tap settings are 70V: 60W, 30W, 15W, 7.5W and low impedance; 100V: 120,60W, 30W. Audio: Input Connection: Two 2-position Euroblock connectors. Control connection is Front-face wattage / low impedance selector switch. Order it in 2 versions: DP8-B, DP8-W.

Loudspeaker Type	2-way, full-range, coaxial pendant mount loudspeaker, 8 ohm or 70V/100V operation
Drivers	LF 1 x 8-inch; HF 1 x 1.25-inch exit compression driver; Driver Protection: Self-resetting solid state circuit breaker
Operating Range	60 Hz - 22 kHz
Frequency Response	80 Hz - 20 kHz (+/-5 dB)
Sensitivity	95 dB SPL (120 Hz to 12.5 kHz 1/3 octave bands); 94 dB SPL (250 Hz to 4 kHz speech range)
Impedance	Nominal Impedance: 8 ohms; Minimum Impedance: 5.6 ohms @ 200 Hz
Maximum Output	117 dB SPL / 123 dB SPL (peak 8 ohm)
Maximum Input	150W continuous, 375W program; 34.6 volts RMS, 69.3 volts momentary peak
