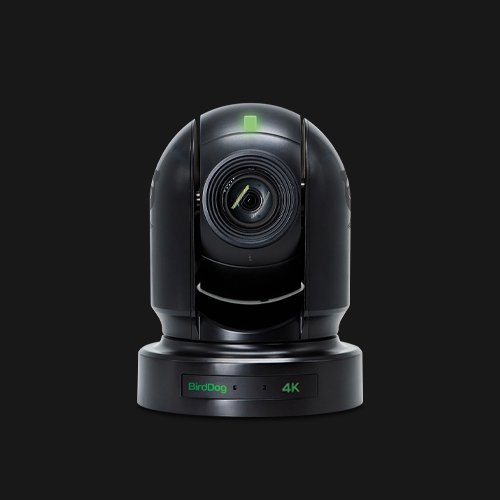

The P400 is BirdDog's 4K PTZ camera, built around a 1/2.5-inch, 8.5-megapixel Sony backlit sensor behind a 20x optical zoom lens (F2.0 wide to F3.8 tele), with a super-resolution digital zoom that extends reach to 30x in 4K and 40x in Full HD. It outputs NDI (both High Bandwidth and NDI|HX), HDMI, and 6G-SDI at the same time, all at 10-bit 4:2:2, so one camera can feed a full NDI production switcher and an SDI router without a converter box in between.
Pan covers a full 175 degrees each direction and tilt runs from +90 to -30 degrees at speeds up to 150 degrees per second, with 128 onboard presets for repeatable shots. Control is over VISCA IP or RS232/RS422/RS485 with PELCO D support, and the camera pulls 23-27 watts from 12V DC or PoE+, so a single Cat5e run can power and control it from a rack. At 2.7 kg it's a heavier, sturdier build than BirdDog's HD P-series cameras, sized for a broadcast truck or a permanently installed venue rig.
Sensor
1/2.5" CMOS, 8.5MP Sony backlit
Lens / Zoom
20x optical (F2.0-F3.8); up to 30x in 4K, 40x in Full HD (super-resolution)
Video Outputs
(High Bandwidth/HX), , 6G- - simultaneous,
Formats
4K UHD 29.97/25/24/23.98p; HD up to 1080p60, 720p60
Pan / Tilt
±175° pan; +90°/-30° tilt; up to 150°/s; 128 presets
Control
NDI Control (auto-configuring), VISCA IP, RS232/RS422/RS485 (VISCA/PELCO D)
Power
12V DC or + (802.3at); 23.2-26.8W
Dimensions / Weight
142 x 159 x 217mm; 2.7kg
NDINetwork Device Interface. Sends video and audio between devices over an ordinary computer network.
HDMIThe digital video and audio connector on cameras, monitors and computers. Cable runs are shorter than SDI.
SDISerial Digital Interface. The coaxial video connection used in broadcast. It carries uncompressed video and embedded audio over long cable runs.
10-bit1,024 tonal steps per colour channel, against 256 in 8-bit. Smoother gradients and more room for grading.
4:2:2A colour sampling scheme: colour is stored at half the horizontal resolution of brightness. The broadcast standard; 4:2:0 keeps less colour detail.
PoEPower over Ethernet. Power and data on one network cable.
