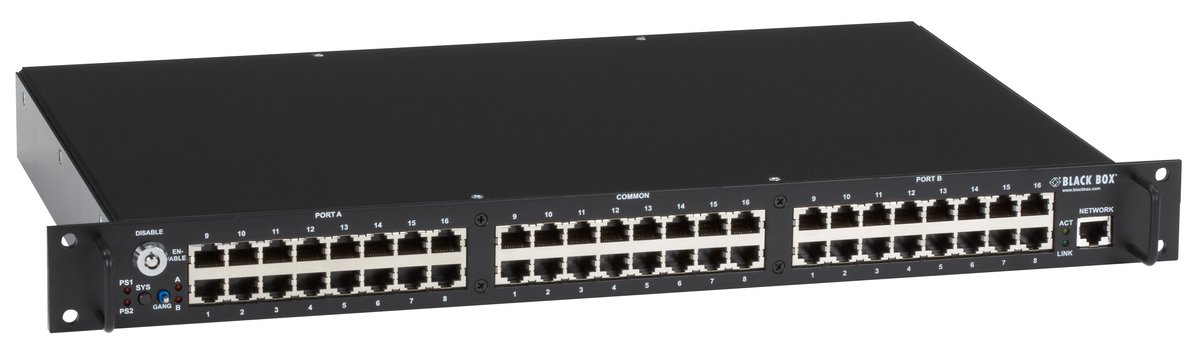

Black Box NBS016MA Rackmount Gang Switch - 19-in., 1U, (16) RJ-45 A/B (Pins 1/2 and 3/6), Network Manageable

The NBS016MA puts one line on either of two paths: Rackmount Gang Switch, 19-in., 1U, (16) RJ-45 A/B (Pins 1/2 and 3/6), Network Manageable. Connectors are Switch Circuits: (16) Circuits containing (3) RJ45 (A/B/C) for a total of (48) RJ45. Latches the A/B position to keep signals moving even if power is lost. Enables individual or simultaneous (ganged) control of circuits.

Power: Input: (2) 110-230 VAC, 60-Hz adapters for redundancy. It measures 1.75-in. H (1U) x 17.25-in. W x 10.5-in. D (4.4 x 43.8 x 26.7-cm). Front-panel indication: Power supply LEDs: (1) status 1, (1) status 2.

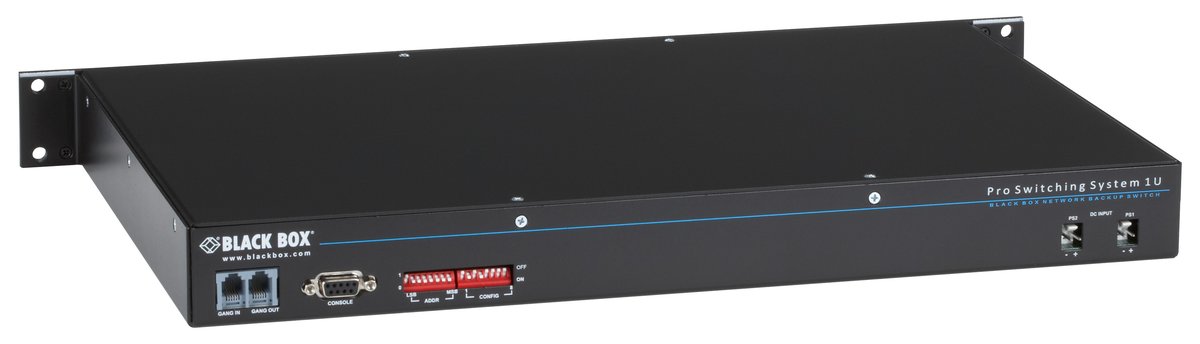

Connectors	Switch Circuits: (16) Circuits containing (3) RJ45 (A/B/C) for a total of (48) RJ45; Management Port: (1) RJ45 (10BASE-T); Serial Control Port: (1) DB9 (Female) (RS-232); Daisychain Port: (2) RJ-11 (gang in/gang out)
Indicators	Power supply LEDs: (1) status 1, (1) status 2; Switch position LEDs: (1) all ports position A, (2) all ports position B; Network status LEDS: (1) management port ON, (1) command activity
Power	Input: (2) 110-230 VAC, 60-Hz adapters for redundancy; Output: 12 VDC, 350 mA nominal, additional 374 mA while switching
Dimensions	1.75-in. H (1U) x 17.25-in. W x 10.5-in. D (4.4 x 43.8 x 26.7-cm)
Weight	5-lb. (2.27-kg) excluding external power supplies
MTBF	>1.3 million hours (based on field failure rate data for redundant supply configurations in a ground benign environment)
Country of Origin	United States
Switches	A/B gang switch: (1) momentary toggle switch; Gang switch enable: (1) key-lock switch; System select switch: (1) momentary push-button switch; Rack address switch: (1) 8-position DIP switch; Configuration switch: (1) 8-position DIP switch
