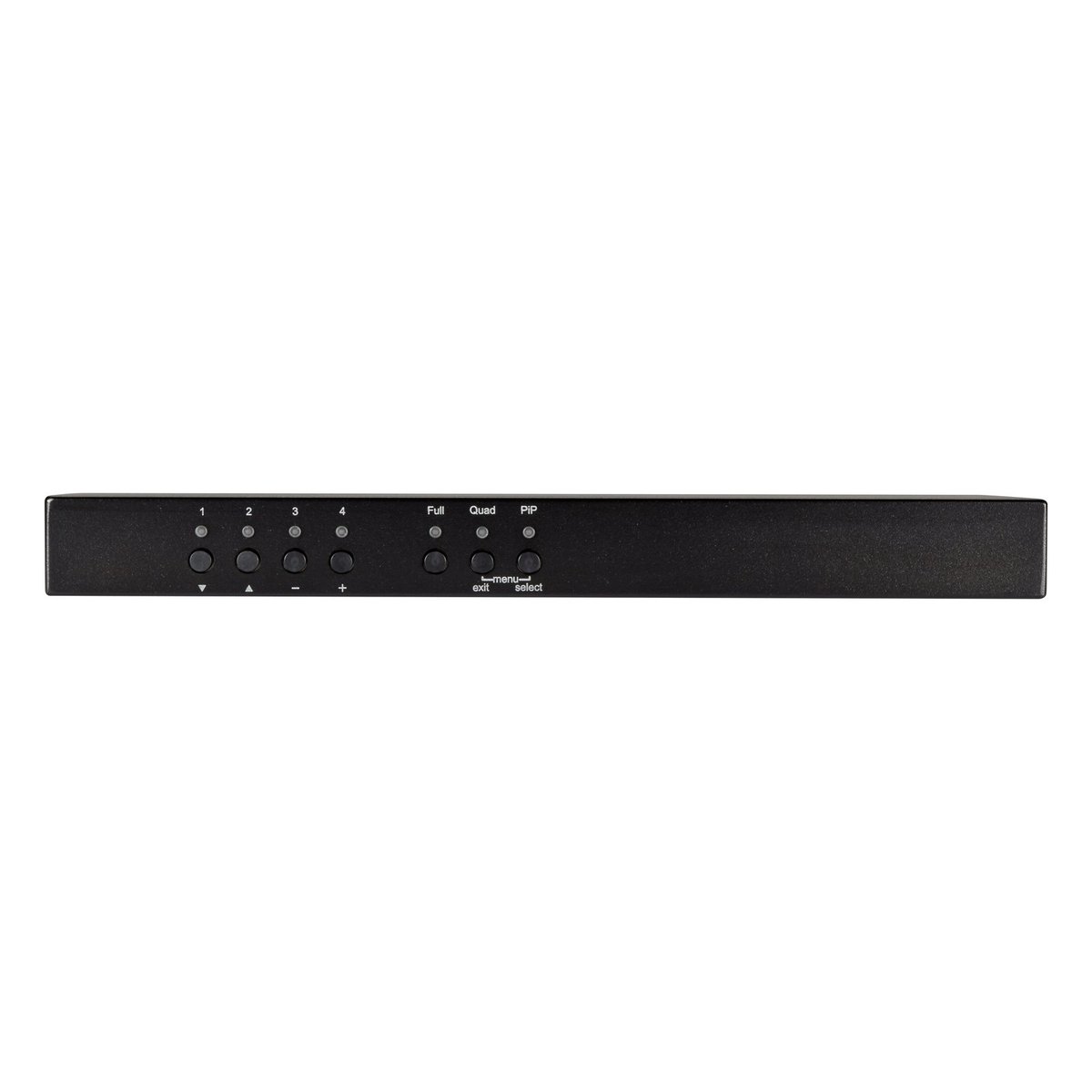

Black Box KVP4000A-R3 ServSwitch Multiviewer with 4-Port KVM Switch

This is a KVM switch and a multiviewer in the same sub-1U chassis. One keyboard, one mouse and one VGA or DVI monitor control four PS/2 or USB servers, and the video from all four can be on screen at once. Full-screen mode gives one machine the whole panel at maximum resolution and moves keyboard and mouse control with it; quad mode splits the screen into four equal live windows; picture-in-picture puts one machine full size with up to three scalable thumbnails down the right margin.

It takes any combination of analogue VGA and digital DVI cards, monitors and cameras, and detects the resolution of the display and of each of the four sources automatically - up to 1600 x 1200 on VGA and 1900 x 1200 on DVI. Up to four USB 2.0 peripherals switch automatically or manually between ports. Mode and channel selection is by front-panel button, keyboard command or mouse, no software involved, and the rackmount kit is included.
