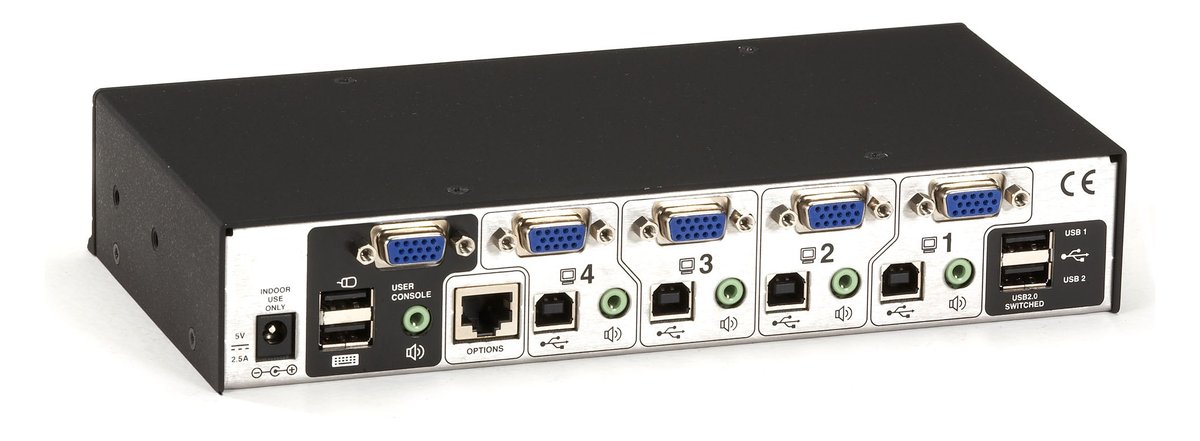

Black Box KV3004A KVM Switch - Single-Monitor, VGA, USB True Emulation, Audio, 4-Port

The KV3004A puts several machines behind one keyboard, monitor and mouse: Single-Monitor, VGA, USB True Emulation, Audio, 4-Port. Connectors are KVM user Console: Video: (1) high resolution VGA.

Power: Input: 100-240 VAC, 50-60 Hz. It measures 1.73-in. H (1U) x 9.17-in. W x 4.5-in. D (4.4 x 23.3 x 11.5-cm) and weighs 2.1-lb. (0.95-kg). In the box: (1) ServSwitch Wizard VGA, USB KVM Switch Unit, (1) AC Power Adapter, (4) Self-Adhesive Rubber Feet, Safety Guide.

ConnectorsKVM user Console: Video: (1) high resolution VGA; Keyboard/Mouse: (2) USB Type-A (emulated); Audio: (1) 3.5-mm Stereo Jack; Switched USB: (2) USB Type-A (USB 2.0, not emulated); Computer channels (each of 4): (1) high resolution VGA; Keyboa
PowerInput: 100-240 VAC, 50-60 Hz; Output: 5 VDC, 2 A
Dimensions1.73-in. H (1U) x 9.17-in. W x 4.5-in. D (4.4 x 23.3 x 11.5-cm)
Weight2.1-lb. (0.95-kg)
ApprovalsCE, RoHS
Country of OriginUnited Kingdom

Resources and support

Compatibility helpCall (201) 791-1400 to confirm signal format, connections, and workflow fit. Black Box product familyContinue browsing the full Black Box range we carry.
