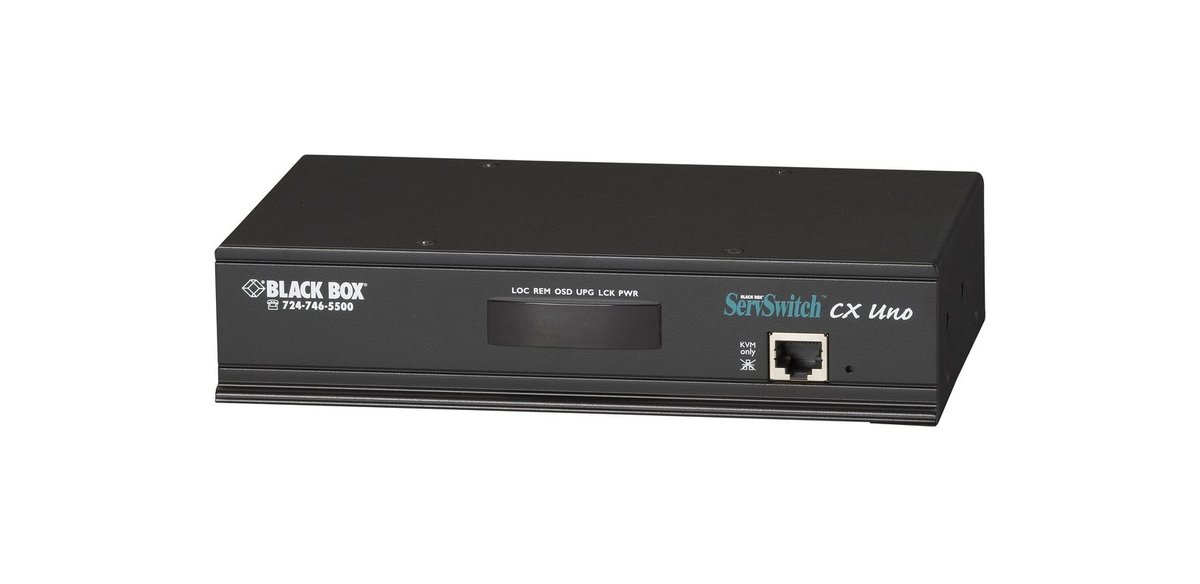

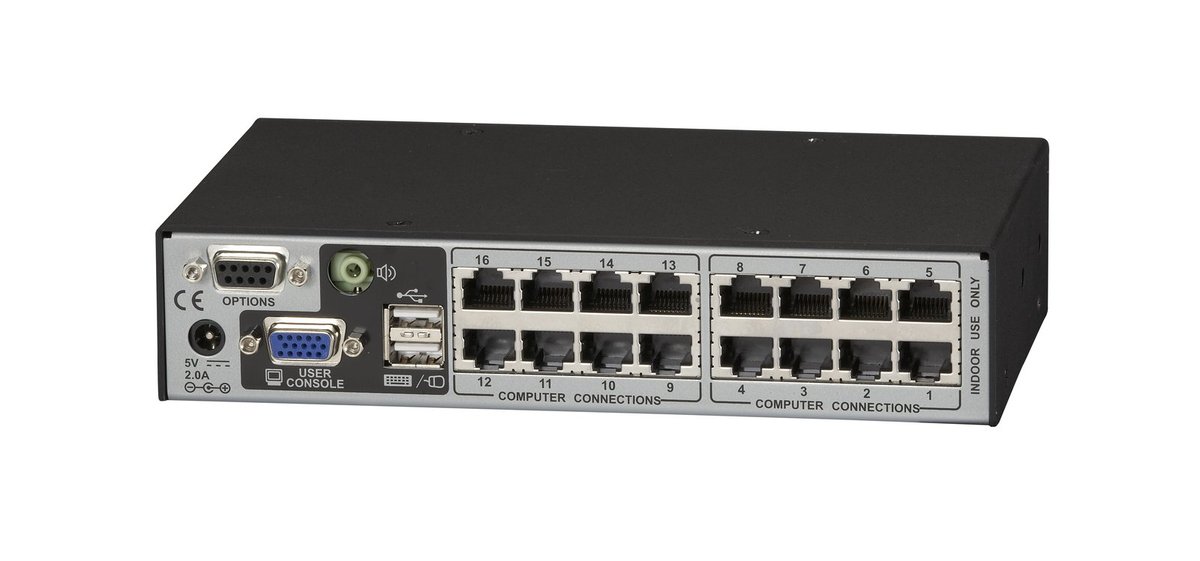

Black Box KV0161A ServSwitch CX Uno 16-Port CATx KVM Switch

Sixteen CATx server ports in a chassis narrower than half a 19-inch rack. Servers connect through PS/2, USB or Sun Server Access Modules and can sit up to 32.8 feet (10 m) away on ordinary CATx cable; audio is supported across all platforms. Video reaches 1920 x 1200 when the distance between server and user stays under 164 feet.

Cascading takes it to 31 CPUs inside 1U of rack, and a CX Remote Unit (KV04-REM or KV04U-REM series) puts a second console more than 900 feet from the switch on a single CATx run. The local and remote consoles share access. RS232 switching commands are supported, multiple units can be synchronised for multi-head video, and the firmware is field upgradeable.

Server ports	16

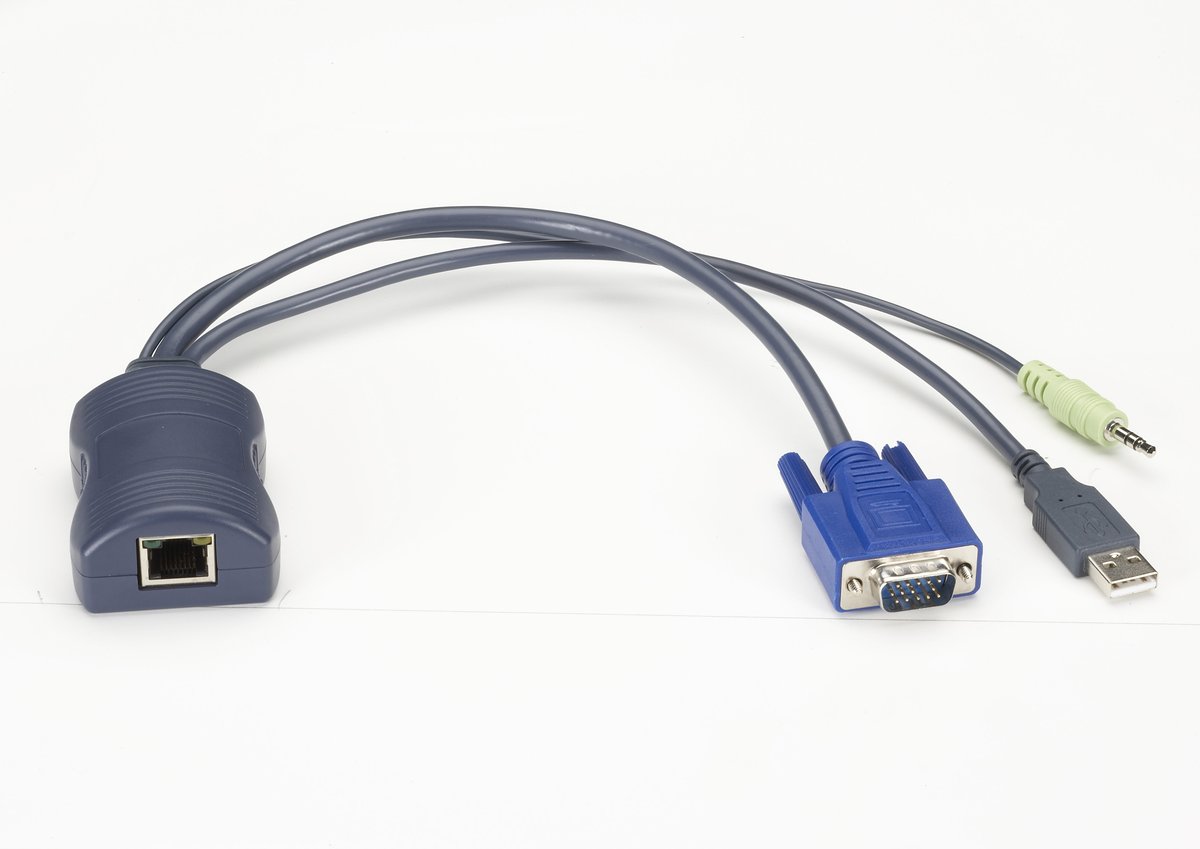

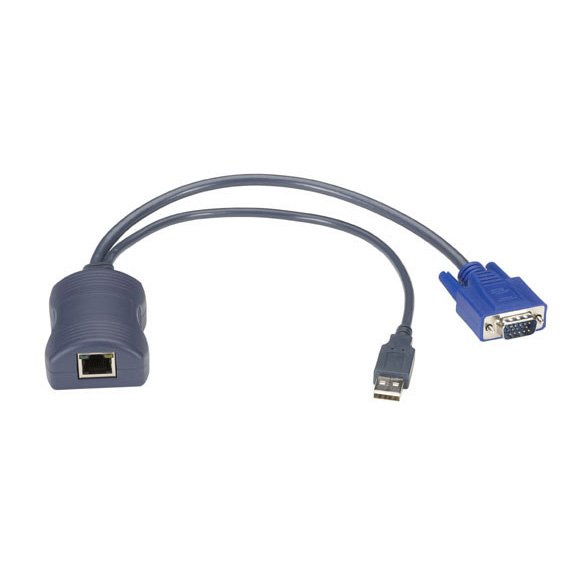

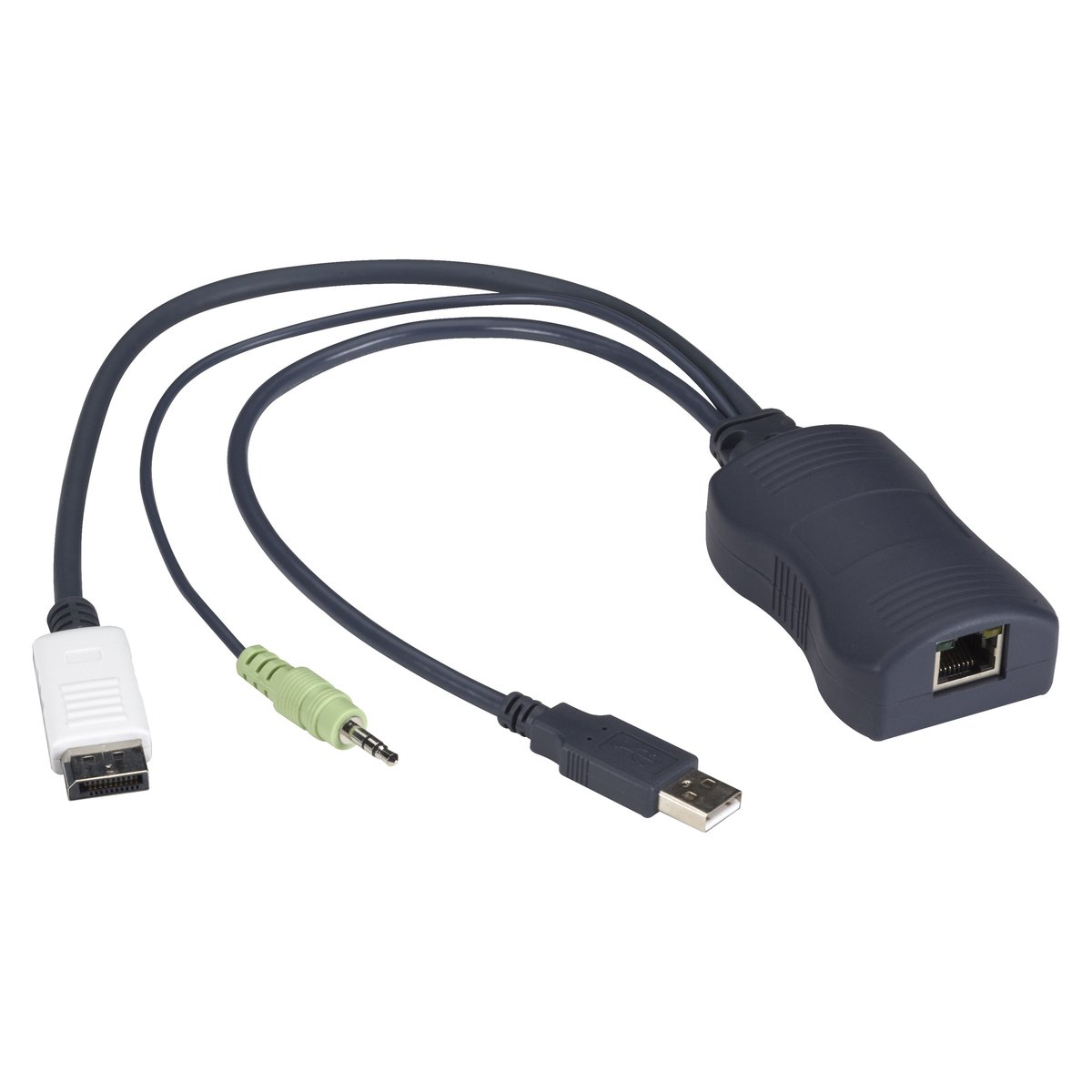

Server connection	CATx to PS/2, USB or Sun Server Access Modules (sold separately)
Server distance	Up to 32.8 ft (10 m) from the switch
Video	VGA or DisplayPort, up to 1920 x 1200 under 164 ft between CPU and user
Remote user	Up to 980 ft (300 m) over CATx with a CX Remote Unit
Cascade capacity	Up to 31 CPUs in 1U
Control	On-screen display, hotkeys, mouse, RS232 commands; flash upgradeable
Ships with	Switch, (4) rubber feet, power supply, DB9 M/F serial upgrade cable
