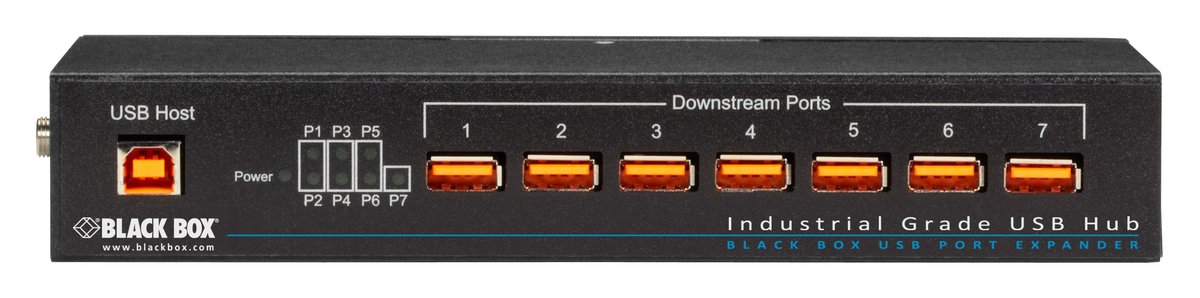

Black Box ICI207A Industrial USB 2.0 Hub - 7-Port

The ICI207A fans one port out to several devices: 7-Port. Connectors are Upstream Port: (1) USB Type-B (Female) (high retention with withdrawal of >15 N).

Power: Input: External 10-30-VDC power supply* (via a terminal block or locking barrel plug input). It measures 1.4-in. H x 5.5-in. W x 3.5-in. D (3.6 x 14 x 8.8-cm) and weighs 1.4-lb. (0.64-kg). Front-panel indication: (6) LEDs: (1) USB Bus Power, (1) External Power, (7) USB Port Ready.

Connectors	Upstream Port: (1) USB Type-B (Female) (high retention with withdrawal of >15 N); Downstream Ports: (7) USB Type-A (Female) (high retention with withdrawal of >15 N)
Standards	USB 1.1, USB 2.0
Indicators	(6) LEDs: (1) USB Bus Power, (1) External Power, (7) USB Port Ready
Power	Input: External 10-30-VDC power supply* (via a terminal block or locking barrel plug input); Output: 5 VDC
Dimensions	1.4-in. H x 5.5-in. W x 3.5-in. D (3.6 x 14 x 8.8-cm)
Weight	1.4-lb. (0.64-kg)
MTBF	211,773 hours (MIL 217F parts count reliability calculated)
Country of Origin	United States
