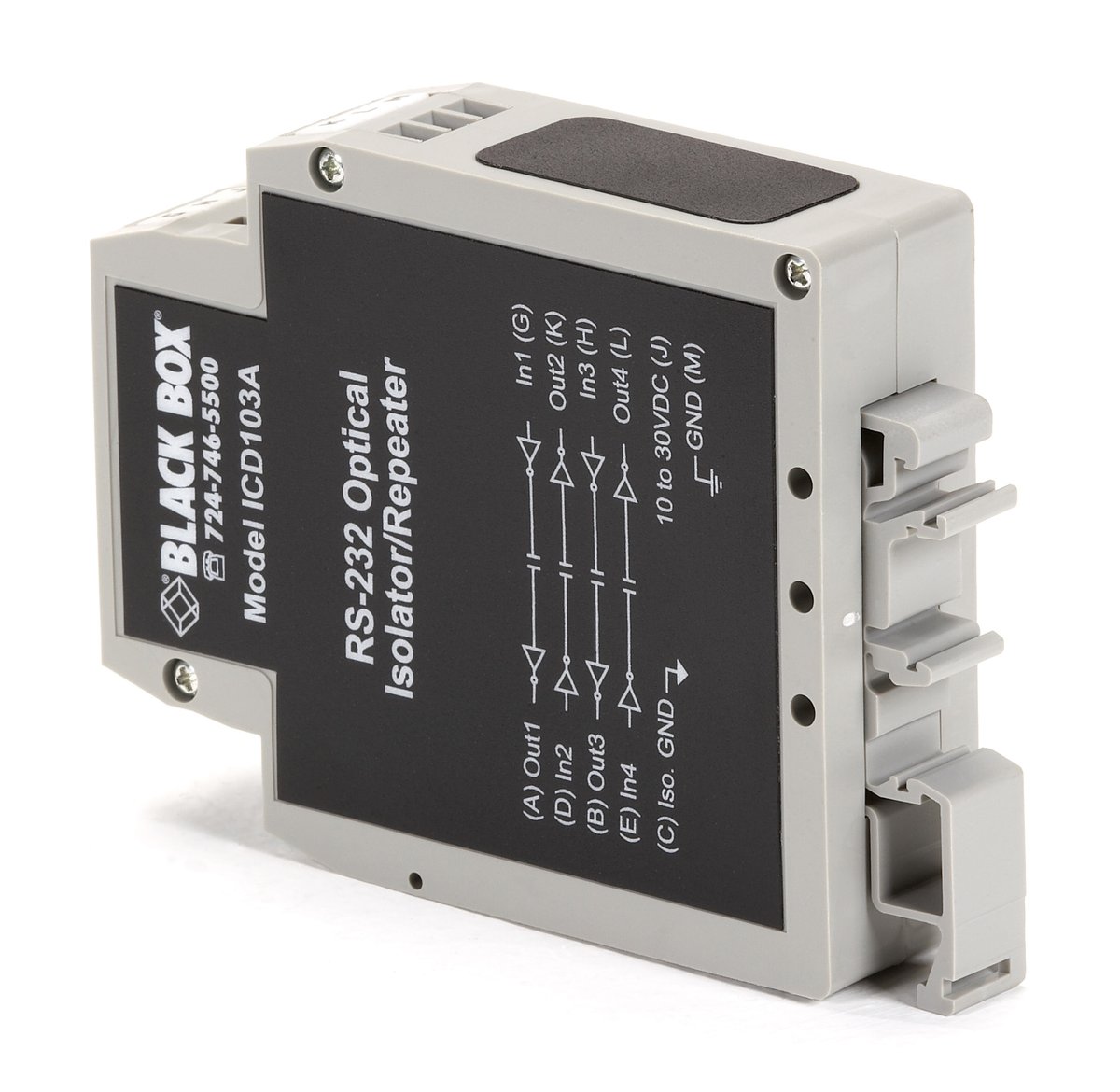

Black Box ICD103A Async RS232 Repeater - (2) Terminal Block

The ICD103A handles the serial side of an installation: (2) Terminal Block. Speed: Up to 115.2 kbps. Connectors are (2) 6-Position Terminal Blocks.

Power: 10-30 VDC, 100 mA. It measures 1-in. H x 2.75-in. W x 2.25-in. D (2.5 x 6.9 x 5.7-cm). Front-panel indication: (5) LEDs: (4) data flow direction, (1) power.

Speed	Up to 115.2 kbps
Connectors	(2) 6-Position Terminal Blocks
Operation	RS-232: Half- or full-duplex
Indicators	(5) LEDs: (4) data flow direction, (1) power
Power	10-30 VDC, 100 mA
Dimensions	1-in. H x 2.75-in. W x 2.25-in. D (2.5 x 6.9 x 5.7-cm)
Country of Origin	United States
Isolation	2000 VDC for 1 minute
