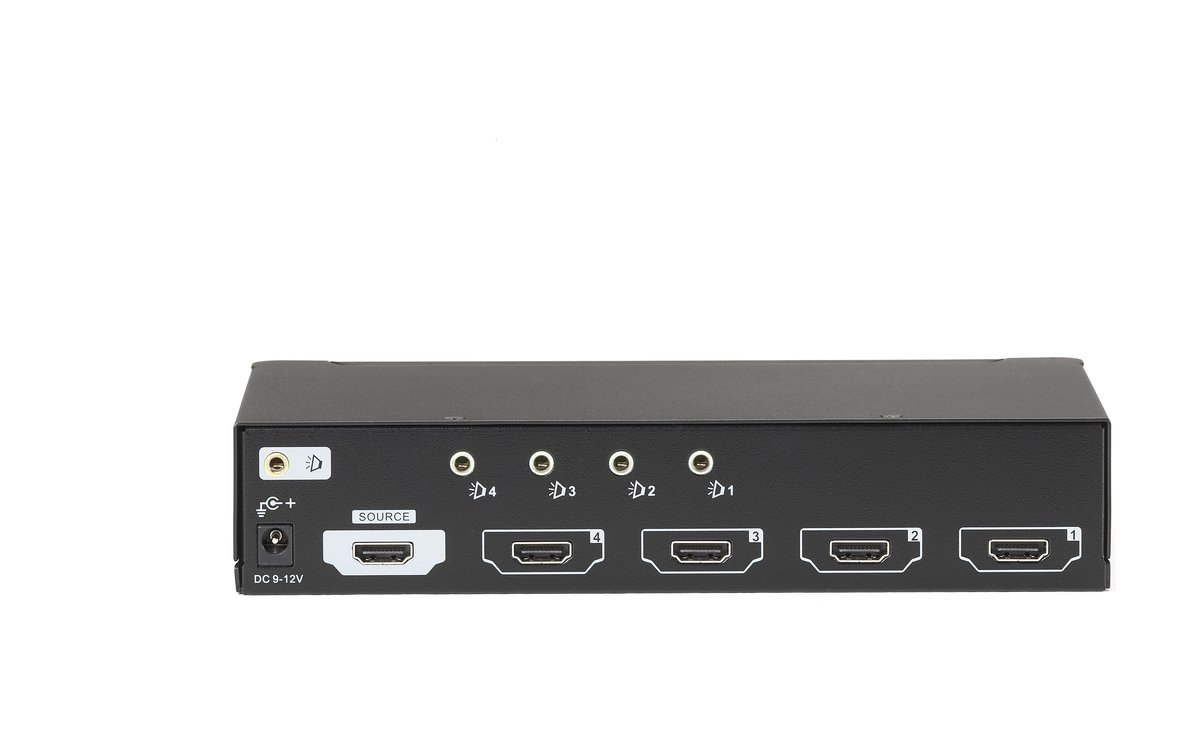

Black Box AVSP-HDMI1X4 HDMI Splitter with Audio, 1 x 4

The four-output member of the family: one HDMI source duplicated across four displays with no signal loss, ready as soon as the cables are in and the power is on. Outputs reach 16.4 feet (5 m), and units cascade if the job needs more screens than one box can drive.

HDCP compliance and Blu-ray readiness mean protected content passes, EDID display information is supported, and the splitter carries UXGA 1600 x 1200, WUXGA 1920 x 1200 and Full HD 1080p. Audio comes off the HDMI ports or the separate 3.5 mm analogue jacks. Activity LEDs sit on each port and the unit powers down automatically when the input disappears. No software or interface card to install.

Configuration	1 x 4 - one HDMI input, four outputs
Resolutions	UXGA 1600 x 1200, WUXGA 1920 x 1200, Full HD 1080p
Content protection	Fully HDCP compliant, Blu-ray ready
EDID	Supports EDID display information
Audio	Embedded HDMI audio or separate 3.5 mm analog jacks
Output distance	Up to 16.4 ft (5 m)
Expansion	Cascadable for additional outputs
Indicators and power	Per-port activity LEDs; automatic power-save on signal loss
Ships with	Splitter, AC power adapter with cord, foot pads, user manual
