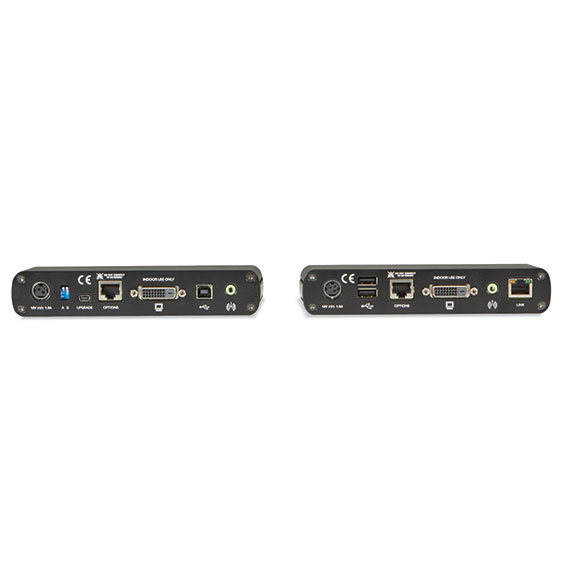

Black Box ACU5700A LRX Series KVM Extender - DVI-D, USB 2.0, RS232, Audio, CATx
The LRX pushes DVI-D video, USB 2.0, RS232 and audio up to 150 metres over CATx. At shorter distances - 330 feet (100 m) - it carries the full 1920 x 1200 at 60 Hz, so the resolution you get is a straightforward trade against the run length you need.
Intelligent EDID management is built in, which keeps the source and the remote display in agreement without manual intervention. The receiver includes a four-port USB hub so several devices can be connected at the far end. The kit ships complete with both units, two 12 VDC power supplies with cords, a USB A-to-B cable and a DVI-D cable.
| Video | DVI-D, 1920 x 1200 at 60 Hz at up to 330 ft (100 m) |
|---|---|
| Maximum distance | Up to 150 m over CATx |
| USB | USB 2.0, 4-port hub on the receiver |
| Serial | RS232 |
| Audio | Supported |
| EDID | Intelligent EDID management |
| Access | Single-access |
| Ships with | Transmitter, receiver, (2) 12 VDC 1.5 A supplies with cords, USB A-B cable, DVI-D cable, rubber feet |
