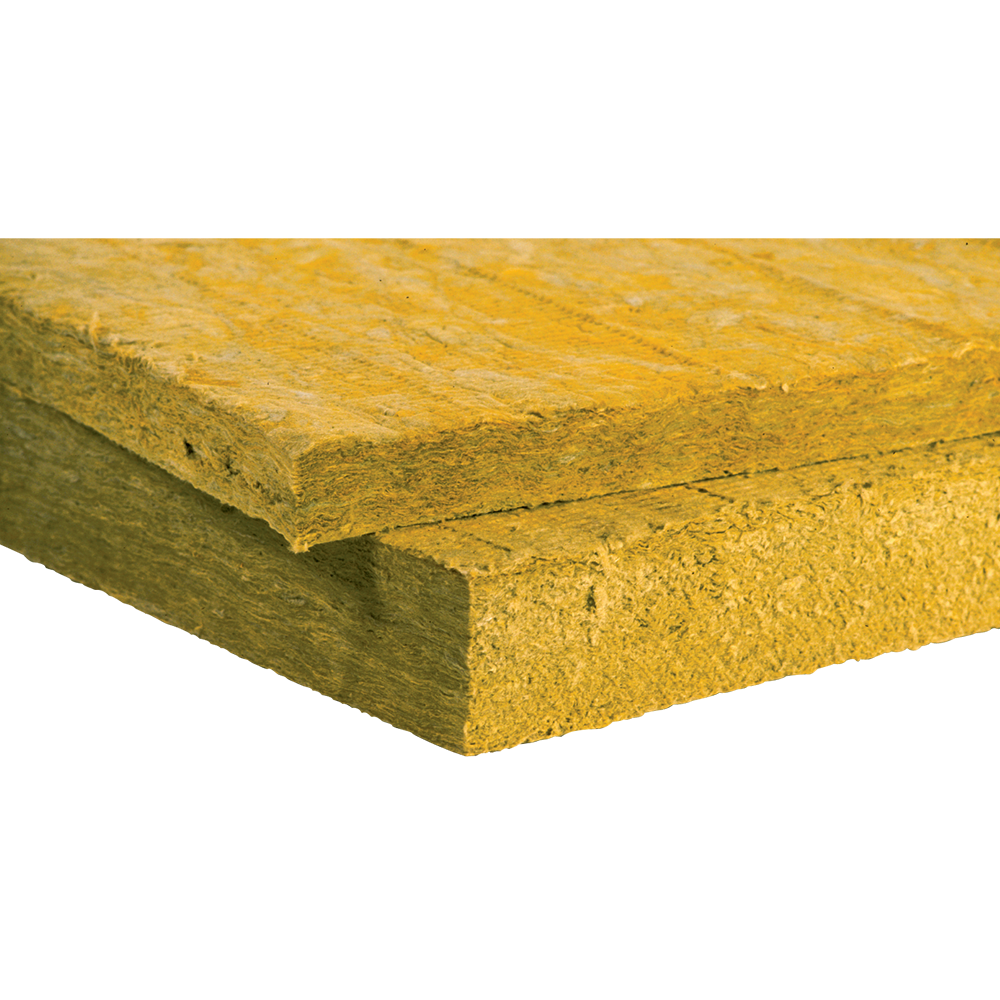

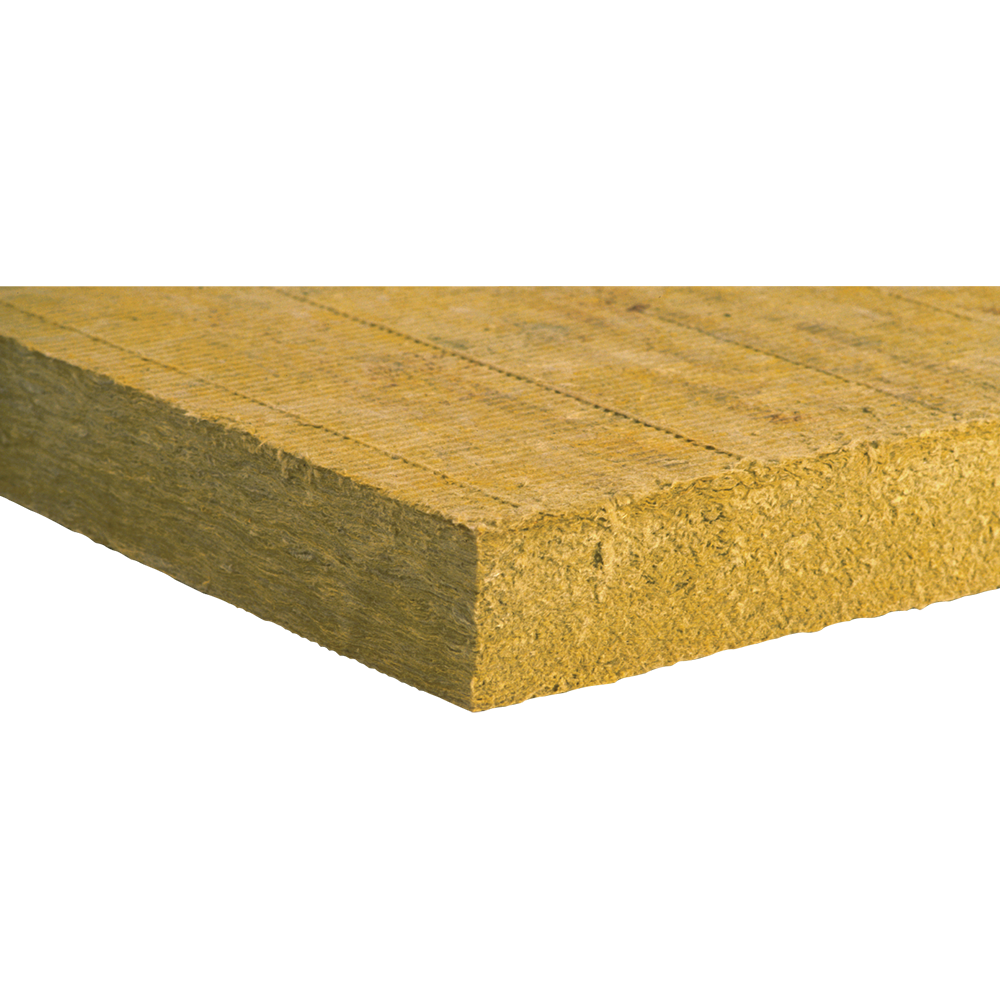

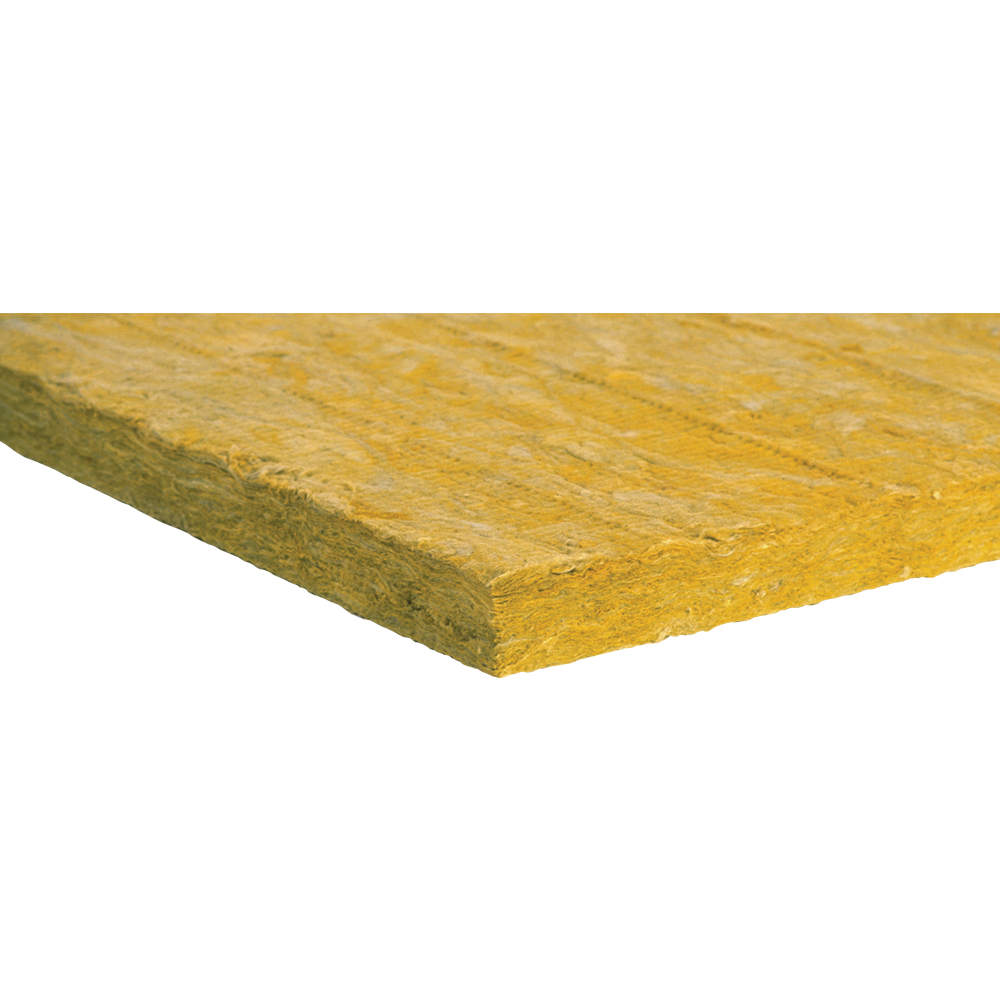

Auralex Mineral Fiber Insulation

Acoustic isolation and thermal insulation are usually two different products; Mineral Fiber does both jobs at once. At 8 pounds per cubic foot it is far denser than standard fiberglass batt, which is what gives it a meaningful NRC on top of an R-value of 4.20 per inch, so a wall or ceiling cavity gets sound isolation and thermal performance from the same fill.

Auralex builds it to pair with RC-8 Resilient Channel and SheetBlok Sound Barrier for wall and ceiling isolation, or with U-Boat Floor Floaters and SheetBlok for floor isolation, decoupling the structure on either side of the cavity the insulation fills.

NRC1.00 (2 in) / 1.05 (4 in)
Fire RatingClass A, ASTM E-84
R-Value4.20 per inch of thickness
Density8 lb per cubic foot
Coverage2 in: 6 sheets (48 sq ft); 4 in: 3 sheets (24 sq ft)
Installing Auralex Mineral Fiber in a Drop Ceiling to Enhance Audio Performance
