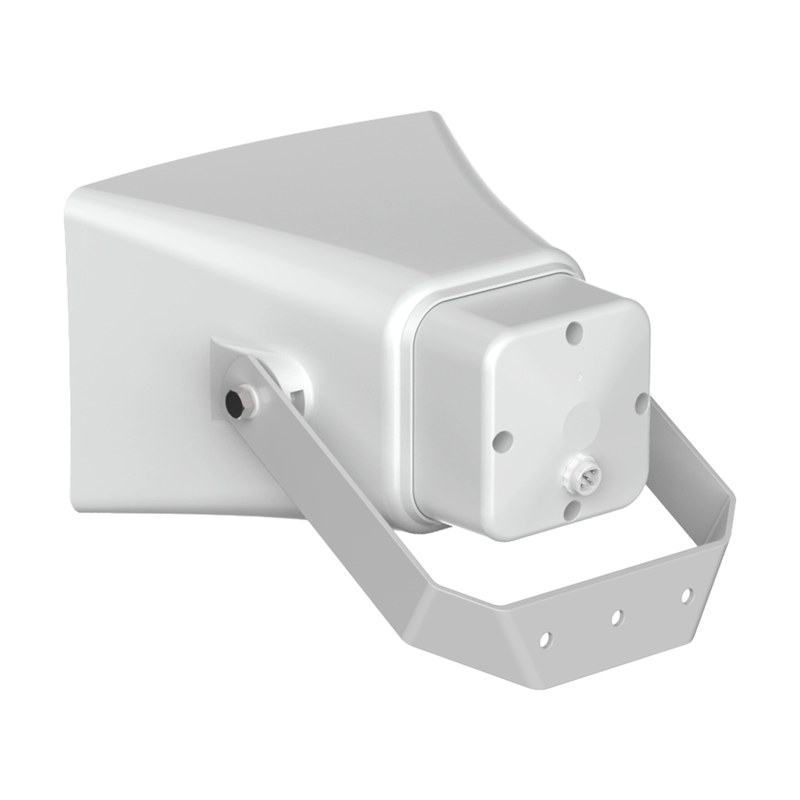

AUDAC CHA530 2-Way horn loudspeaker 5 inch

The CHA530 is AUDAC's 2-Way horn loudspeaker 5 inch. Driver configuration is 2-way horn speaker. It is rated 30 W continuous and 120 W peak. Sensitivity measures 98 dB at 1 W / 1 m over a 110 Hz - 16 kHz response.

It connects by AWX5 waterproof. The housing is Impact & UV resistant ABS. It measures 12.20 x 8.46 x 12.99 in (W x H x D) and weighs 10.36 lb. Ingress protection is rated IP66. Supplied with Mounting bracket.

Speaker type2-way horn speaker
Peak power handling120 W
Program power handling60 W
Continuous power (AES)30 W
Sensitivity (1W/1m)98 dB
Line Transformer Tappings 1167 ohms - 100 V / Not used - 70 V / 30 W
Line Transformer Tappings 2333 ohms - 100 V / 30 W - 70 V / 15 W
Line Transformer Tappings 3667 ohms - 100 V / 15 W - 70 V / 7.5 W
