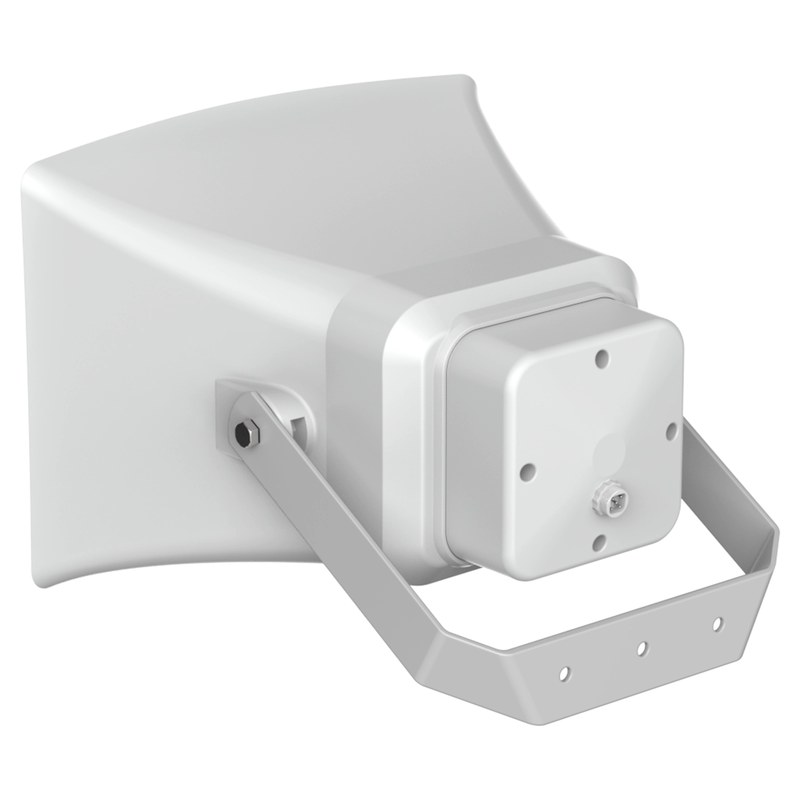

AUDAC CHA660 2-Way horn loudspeaker 6.5 inch

The CHA660 is AUDAC's 2-Way horn loudspeaker 6.5 inch. Driver configuration is 2-way horn speaker. It is rated 60 W continuous and 240 W peak. Sensitivity measures 99 dB at 1 W / 1 m over a 100 Hz - 16 kHz response.

It connects by AWX5 waterproof. The housing is Impact & UV resistant ABS. It measures 16.54 x 13.19 x 15.75 in (W x H x D) and weighs 14.77 lb. Ingress protection is rated IP66. Supplied with Mounting bracket.

Speaker type2-way horn speaker
Peak power handling240 W
Program power handling120 W
Continuous power (AES)60 W
Line Transformer Tappings 183 ohms - 100 V / Not used - 70 V / 60 W
Line Transformer Tappings 2167 ohms - 100 V / 60 W - 70 V / 30 W
Line Transformer Tappings 3333 ohms - 100 V / 30 W - 70 V / 15 W
Line Transformer Tappings 4667 ohms - 100 V / 15 W - 70 V / 7.5 W
