Atomos Shogun AV-19 19" Rack Monitor-Recorder-Switcher

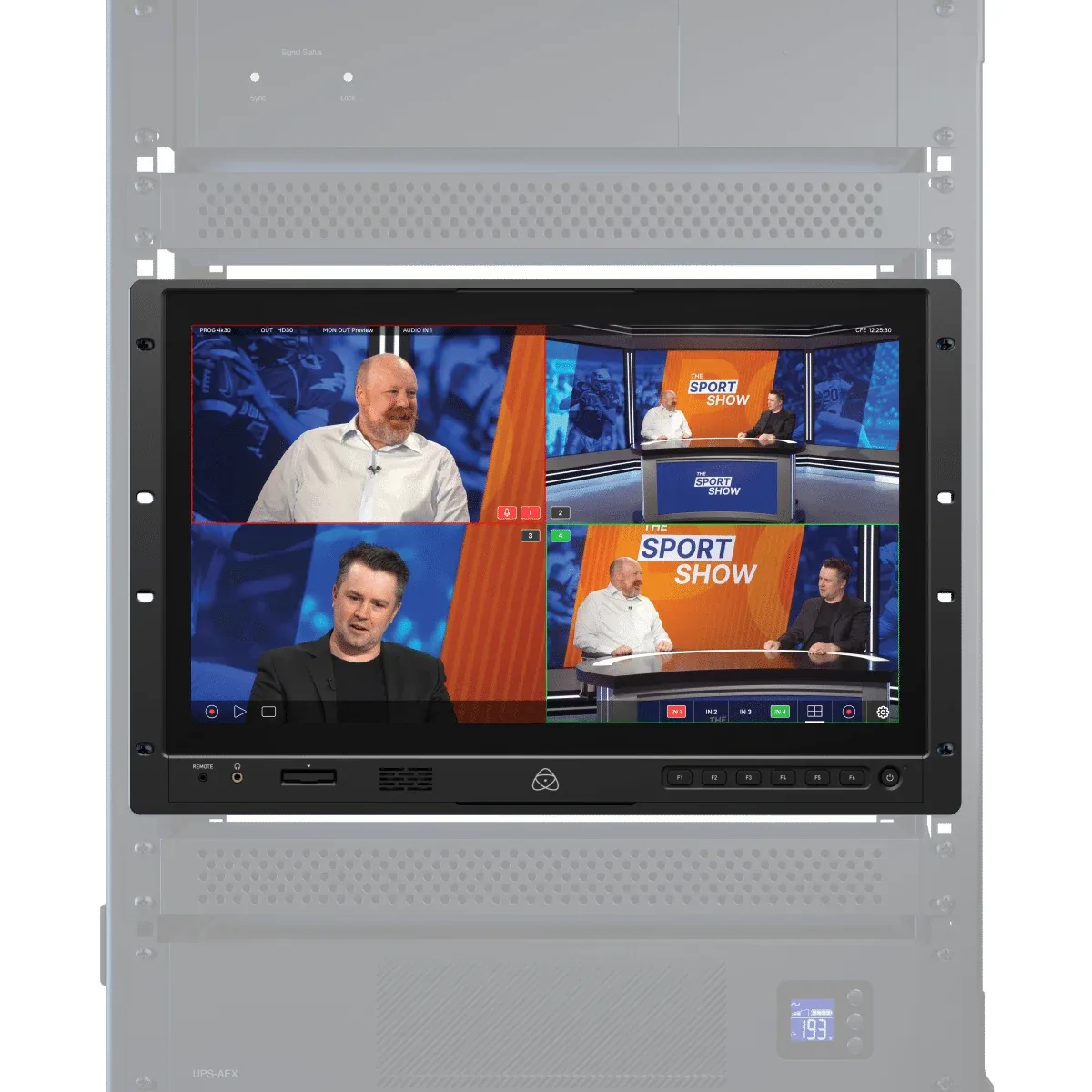

The Atomos Shogun AV-19 is a 19-inch rackmountable production hub that monitors, records, and live-switches multiple camera feeds for studio and broadcast rooms. Its 4K UHD (3840 x 2160) 10-bit display covers 100% Rec.709 and 99% DCI-P3 at up to 1200 nits, giving directors and colorists an accurate large-format reference on set.

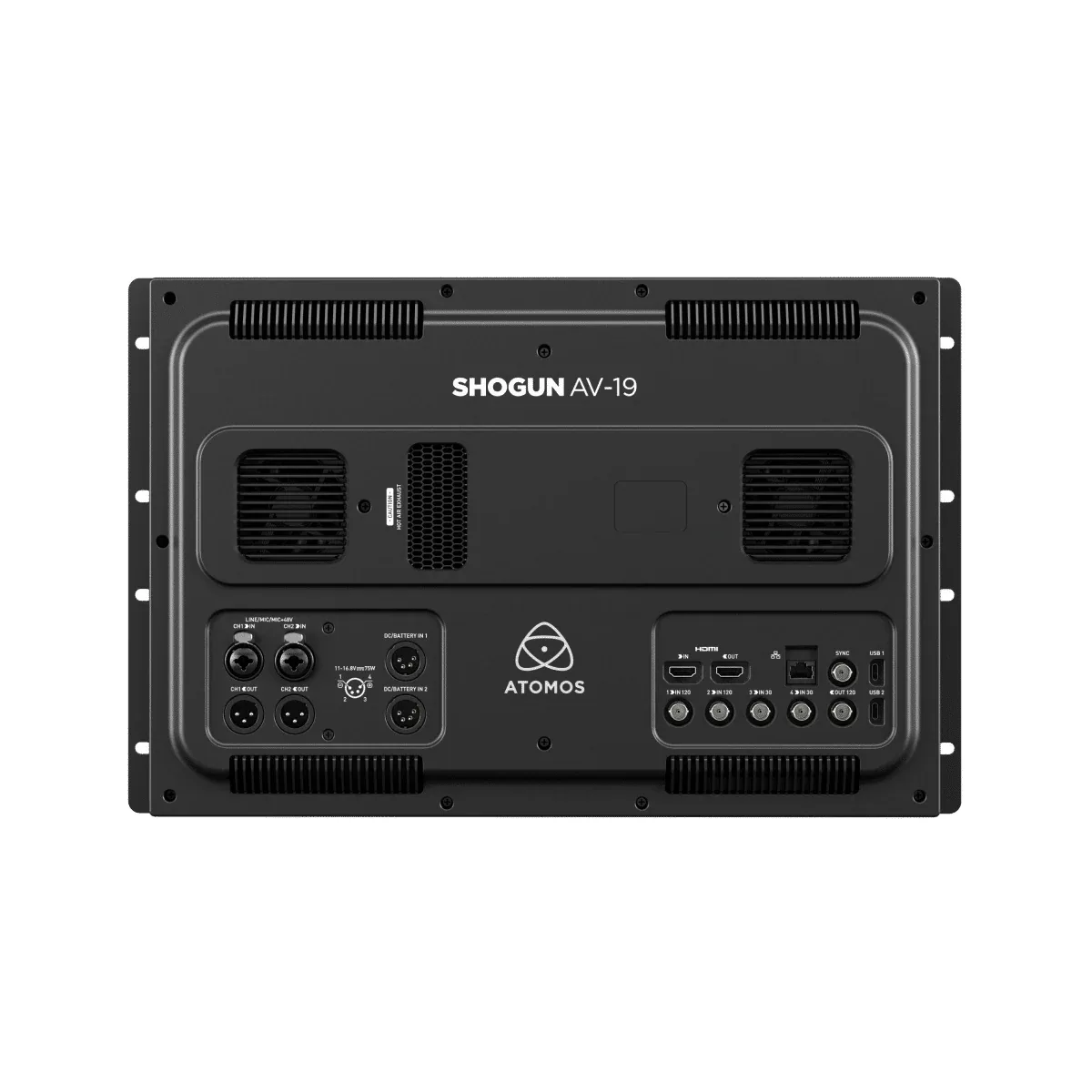

Video connectivity runs two 12G-SDI and two 3G-SDI inputs plus HDMI in/out, with a 12G-SDI output for monitoring downstream. It records Apple ProRes, ProRes RAW, Avid DNx, and H.265 up to 4K60p, with 8K RAW capture available over SDI, to CFexpress Type B cards or external USB-C media. Power draws 75W from a 12V-16.8V DC source, suited to a permanent rack install. Atomos part number ATOMSHGAV1.
