Atomos AtomX Cast Switcher Module

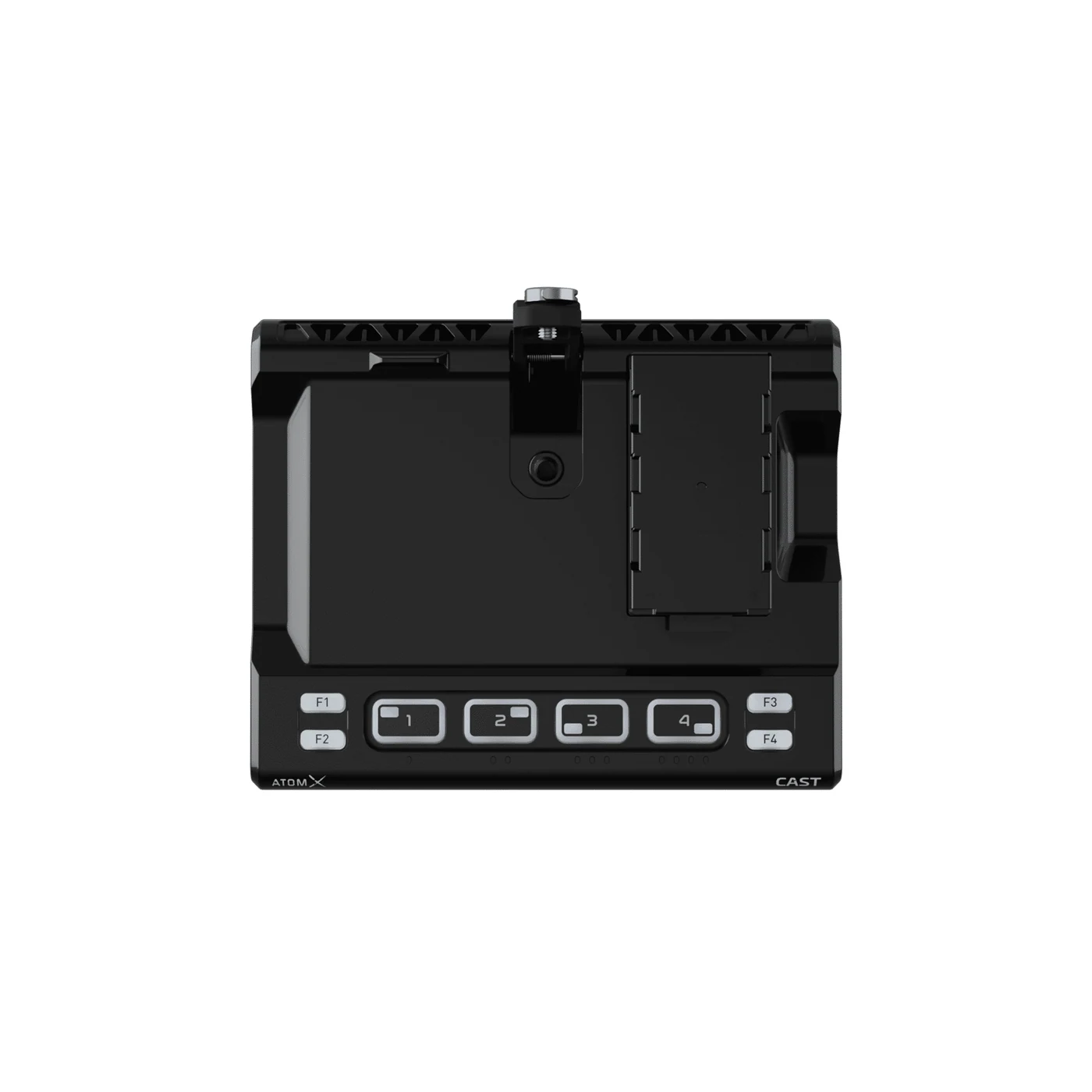

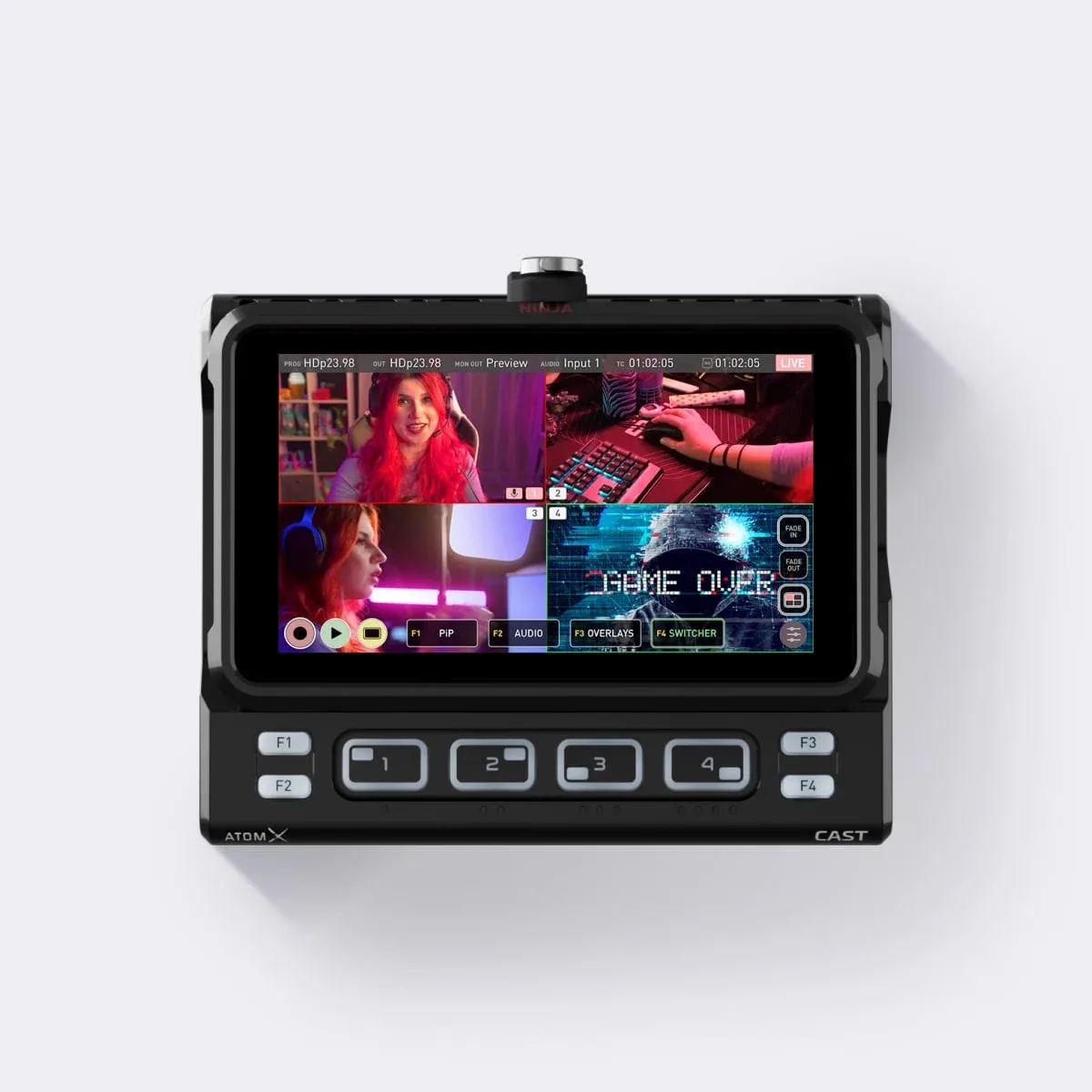

The Atomos AtomX Cast is a modular expansion for the Ninja, Ninja Ultra, and Ninja V/V+ that clips onto the monitor's AtomX port and turns its 5-inch touchscreen into a compact live production switcher. It brings in up to 4 HDMI sources and outputs clean 1080p60 video with proper switching transitions from two HDMI 2.0 outputs, all controlled by physical source-select buttons on the module itself rather than a laptop or an external control surface.

Graphics overlays and picture-in-picture layouts build directly on the switched feed, so a solo operator can run a simple multi-camera stream, add a lower third, or key in a webcam-style PIP without a separate graphics computer. Its USB-C output doubles as a UVC webcam source, so a laptop or streaming platform sees the switched program feed as a plug-and-play camera the moment it's connected, with no drivers or software setup on the computer side. Atomos part number ATOMXCST01.
