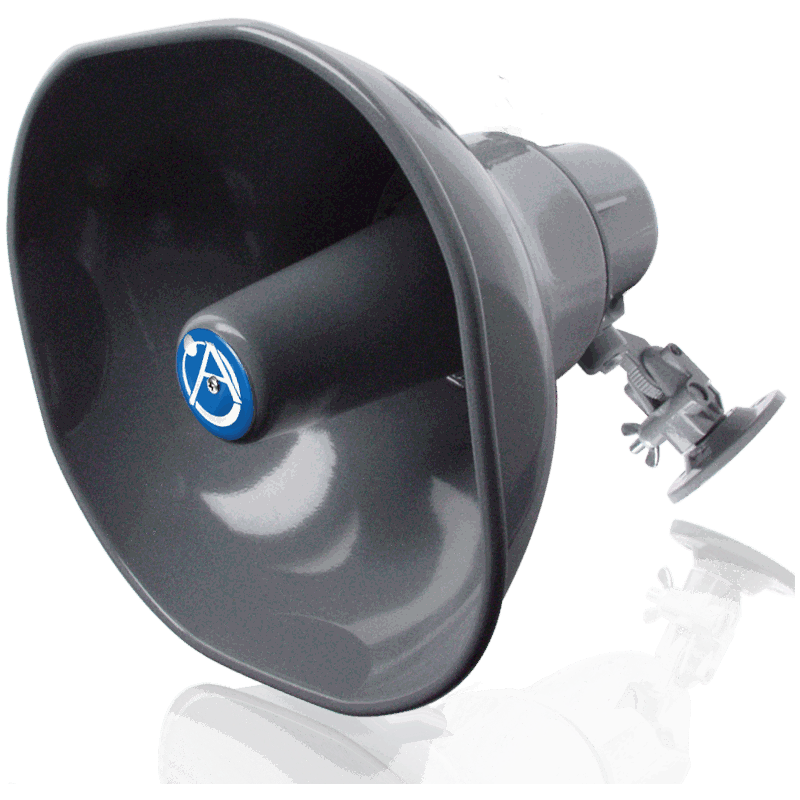

AtlasIED AP-30T Horn Speaker with 30-Watt 25V/70V/100V Transformer
The AtlasIED AP-30T is a horn speaker with 30-watt 25V/70V/100V transformer. The Model AP-30T is a double re-entrant speakers which deliver 30-watts of continuous power handling, superior intelligibility and unparalleled efficiency. The AP-30T operates within a nominal frequency response range of 300Hz - 12kHz and offers a sensitivity of 121dB at rated power to provide clear voice and signal communication. Published frequency response is 300Hz -12kHz.
The trademarked squared-bell design signifies AtlasIED quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for speaker installation on conventional surfaces as well as for strap mounting on I-beams or pillars. AtlasIED lists environment resistant for outdoor & indoor use; grey finish; high-efficiency driver with proven performance reliability; omni-purpose™ bracket for precise positioning. It measures 11" high, 10" wide, and 10 1/2" deep. It ships at 6.30 lbs and carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | AP-30T |
|---|---|
| Frequency Response | 300Hz -12kHz |
| Sensitivity | 108dB |
| Power Taps | 2, 3.8, 7.5, 15, 30 @ 70.7V |
| Dispersion | 60° |
| Operating Temperature Range | -40 to 70C |
| Height | 11" (27.94 cm) |
| Width | 10" (25.4 cm) |
| Depth | 10 1/2" (26.67 cm) |
| Shipping Weight | 6.30 lbs (2.86 kgs) |
| Operating Temperature Range | -40C to 70C |
| Warranty Period | 60 months from date of purchase |
