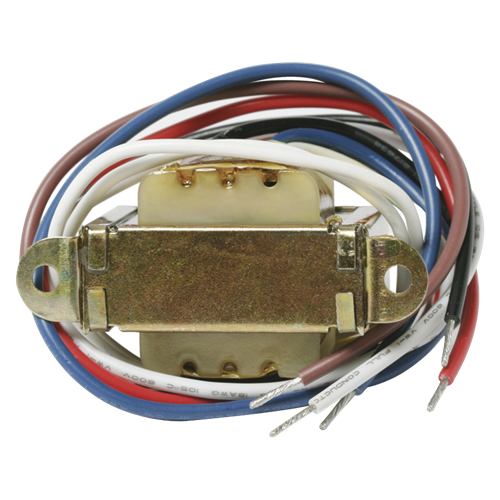

AtlasIED HT42 High-Quality 4 Watt Audio Transformer 25V
The AtlasIED HT42 is a high-quality 4 watt audio transformer 25V. Selection of single voltage or combination use constant-voltage line transformers includes models for professional and commercial sound and for intercom (45 ohm) applications. Transformers with 8 Or 4 ohm impedance mount standard 4" or 8" speakers without additional hardware except Model HT167 which may require bracket Model CX188329. Published frequency response is 60Hz - 12KHz.
For convenience and cost savings, AtlasIED speakers can be ordered with factory-installed transformers. Consult speaker specifications or technical service for proper speaker transformer combinations to meet your installation requirements. AtlasIED lists constructed with audio grade laminations; designed for use on 25 volt lines; frequency response is 60Hz - 12KHz; high quality matching transformer with only 1.0 dB insertion loss. It measures 1 5/8" high, 1.969" wide, and 3/4" deep. It ships at 0.67 lbs and carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | HT42 |
|---|---|
| Frequency Response | 60Hz - 12KHz |
| Power Taps | .5, 1, 2 & 4 |
| Power Rating | 4W |
| Primary Voltage | 25 |
| Height | 1 5/8" (4.1275 cm) |
| Width | 1.969" (5.00126 cm) |
| Depth | 3/4" (1.82626 cm) |
| Shipping Weight | 0.67 lbs (0.30 kgs) |
| Warranty Period | 60 months from date of purchase |
