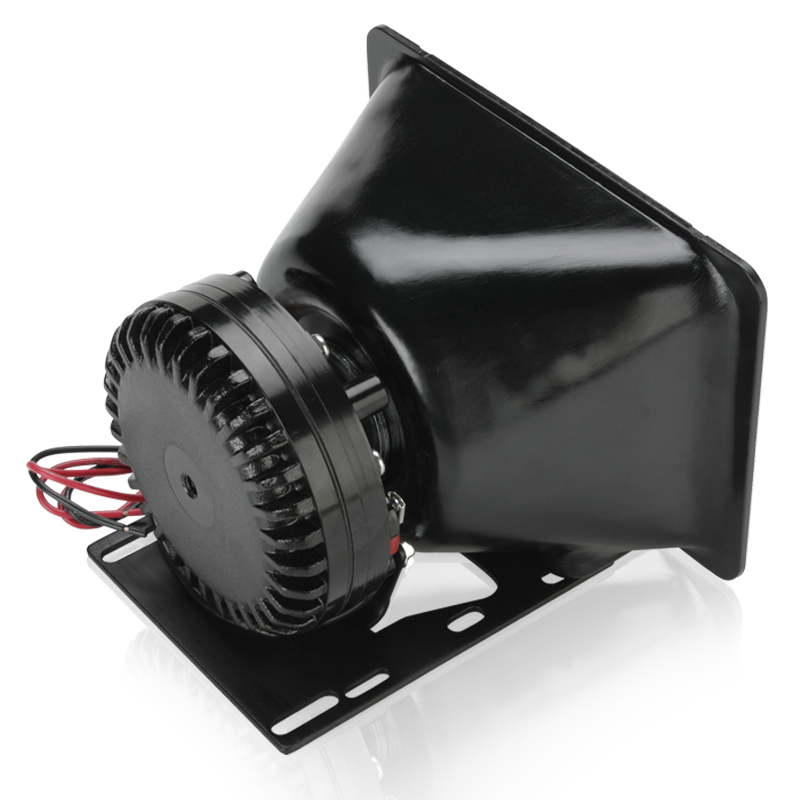

AtlasIED HPG-100N Rectangular Electronic Siren Speaker 100W @ 11Ω
The AtlasIED HPG-100N is a rectangular electronic siren speaker 100W @ 11Ω. The HPG-100N Siren Speaker is utilized for high-powered transmission of electronic siren and voice communications in vehicular applications. It is suitable for installation within light bars, engine compartments, or for mounting in front of the radiator or on the bumper of any ambulance, law enforcement, fire, utility, or other public service vehicle. Published frequency response is 450Hz - 3.5kHz.
It is rated at 100 watts RMS in electronic siren use and will provide a sound level output of 120 dB (measured on appropriate electronic siren). It is furnished with a one piece, steel mounting bracket and has a field-replaceable driver-head assembly. AtlasIED lists field-replaceable driver-head assembly; 100 watts RMS. It measures 5.3" (135mm) high, 7.47" (190mm) wide, and 6.46" (164mm) deep. It carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | HPG-100N |
|---|---|
| Frequency Response | 450Hz - 3.5kHz |
| Power Rating | 100 Watts RMS |
| Dispersion | 80° x 105°, 1kHz Octave Band |
| Height | 5.3" (135mm) |
| Width | 7.47" (190mm) |
| Depth | 6.46" (164mm) |
| Warranty Period | 60 months from date of purchase |
