Adaptive Technologies BC7-12 Beam Clamp (7" - 12" Flange)

The BC7-12 is a channel-style beam clamp that bolts onto structural I-beam flanges between 7" and 12" wide (178-305mm) to create an offset, load-rated overhead rigging point for direct loads, bridles and hitches. Only a hand wrench is needed to install it, and the beam flange must stay parallel to the floor to hold the stated working loads.

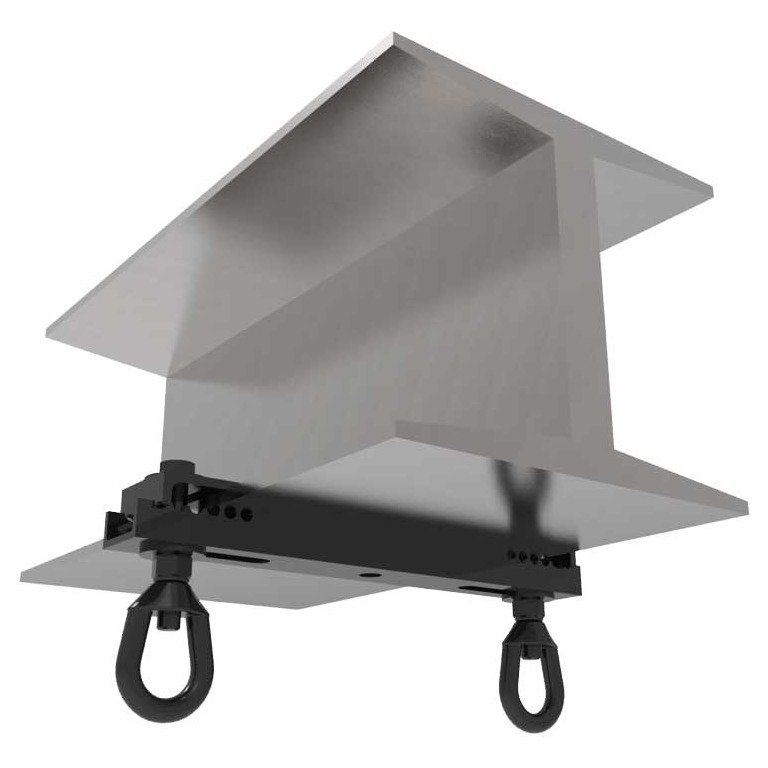

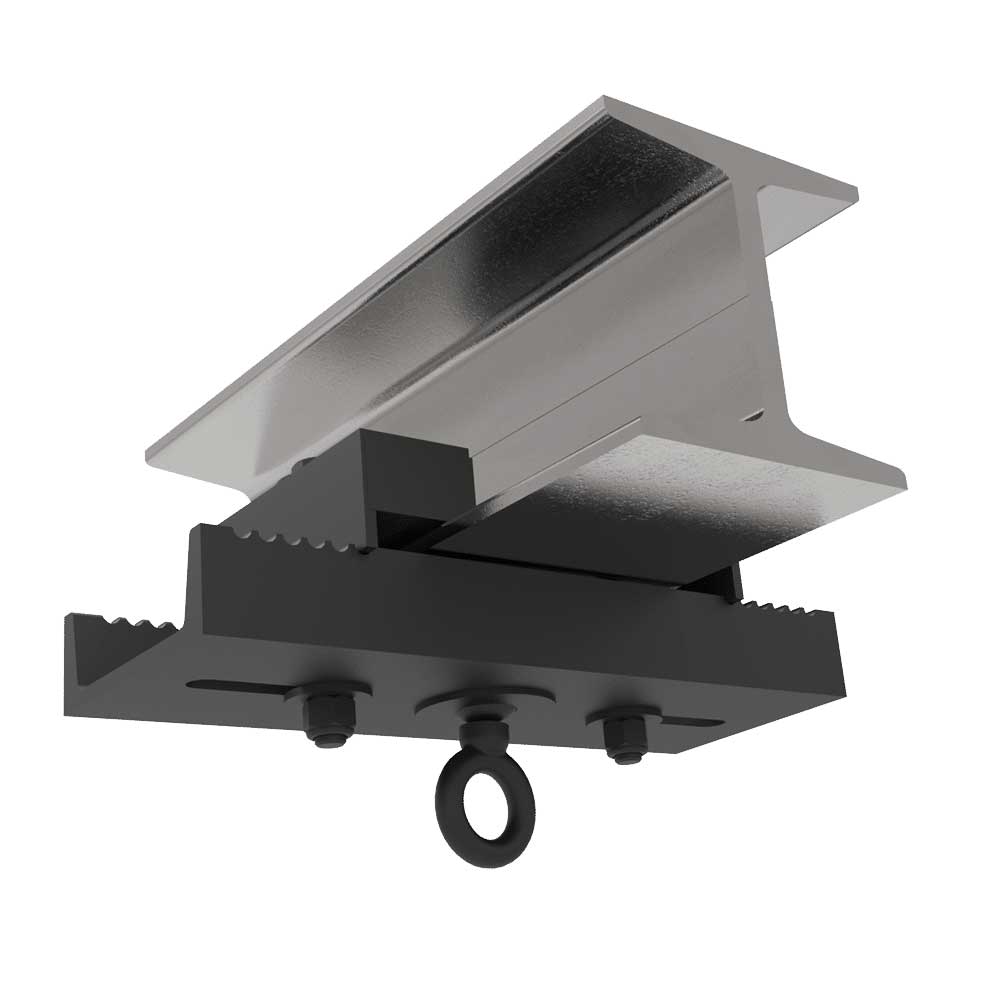

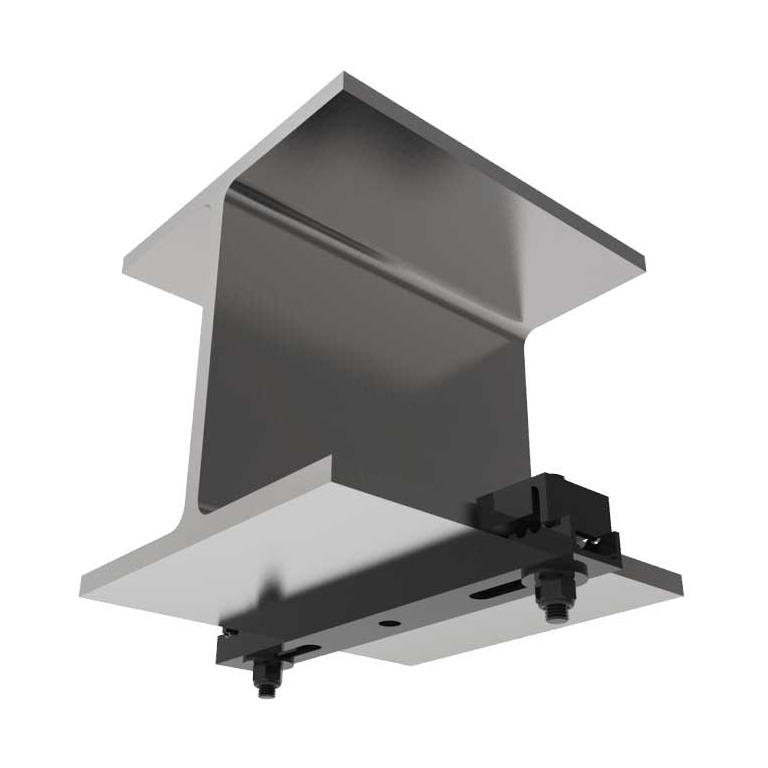

All-steel construction, black powder coat finish, 5:1 design factor, recommended install torque 40-50 ft/lb. The BC7-12-0 open hang point is rated 1600 lb vertical / 944 lb at 45 degrees; the BC7-12-2 doubles the hang point count on the same clamp, and the BC7-12-GE swaps in a gimbaled eye so the hang point can swing to follow the load angle. Ships with two 5/8" eye nuts and one channel clamp.
