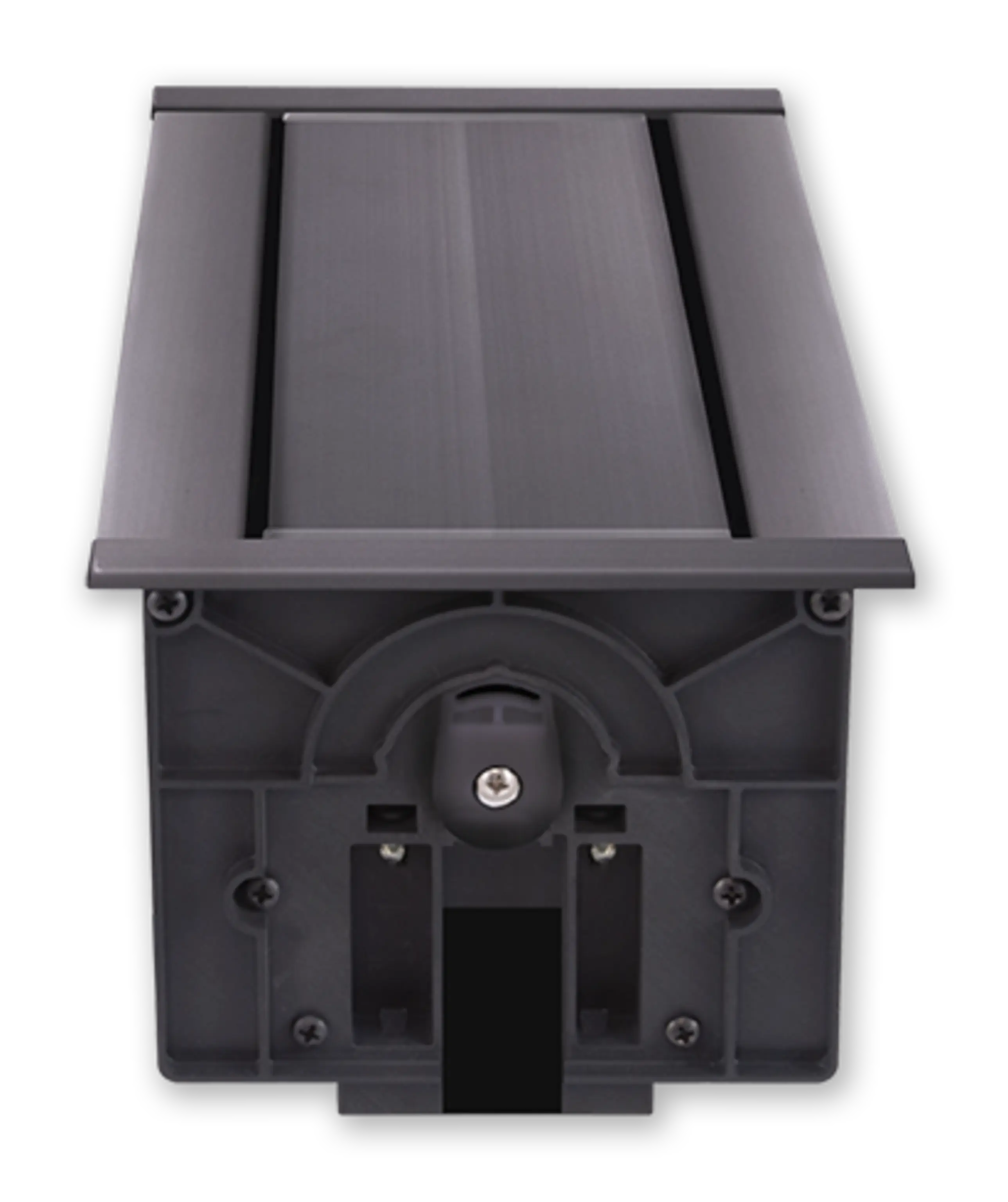

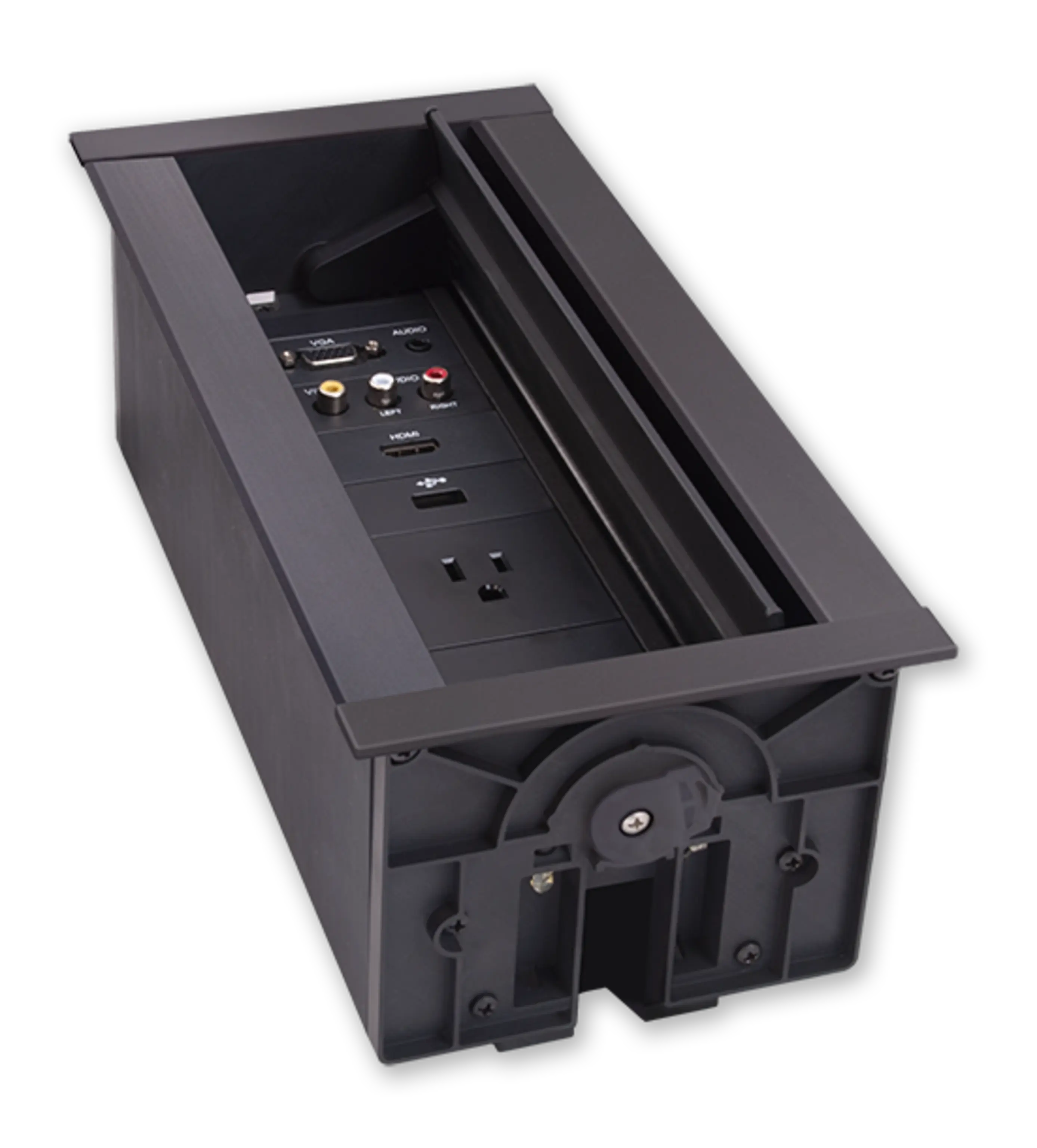

AMX HPX-900 9 HydraPort Unit Enclosure (Black Anodized)

The HPX-900 is a modular AV table box that takes nine HydraPort modules, giving a room designer the freedom to mix HDMI, USB, Ethernet and other connector modules to match exactly what a conference room or classroom needs to hand mobile devices a way to reach the projector or display. The anodized aluminum enclosure installs flush into a lectern or table, and the hinged lid opens in both directions for tidy cable routing on either side.

Because the modules are interchangeable, the HPX-900 stays useful as connector standards change, a USB-C module can replace an aging VGA module without swapping the whole box. This is the Black Anodized finish, FG560-02-BL.

Module Capacity9 HydraPort Units
Mounting Footprint11 5/32 x 5 7/16 in (283 x 138 mm)
Table Cutout10.59 x 4.84 in (269 x 123 mm)
MaterialAnodized aluminum enclosure
FinishBlack Anodized (FG560-02-BL)
LidHinged, opens in both directions
