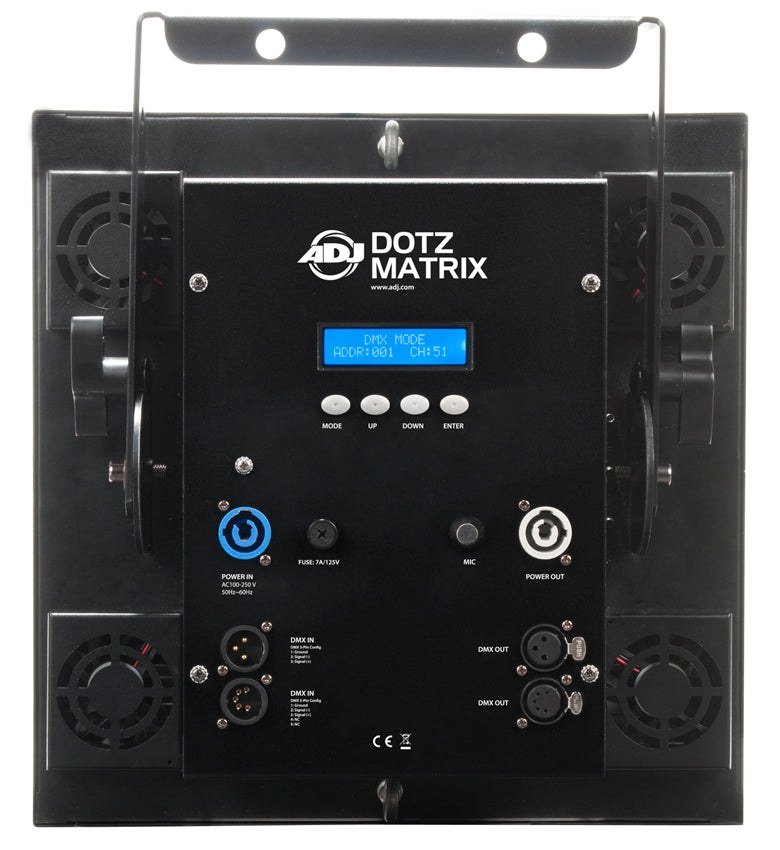

American DJ Dotz Matrix
The American DJ Dotz Matrix is a COB LED par from American DJ. American DJ lists the light source as 16x 30-Watt COB TRI LEDs (RGB: 3 in 1).
5 Dmx channel modes covers 3, 6, 7, 48 53 channel. Power draw is quoted at 430W total (All LED's @ Full). Listed dimensions (lxwxh): 13.75" x 6.75" x 14.75"/ 345 x 170 x 370mm. Ordering code DOTZ MATRIX.
- Dimensions (LxWxH)13.75" x 6.75" x 14.75"/ 345 x 170 x 370mm
- 5 DMX channel modes3, 6, 7, 48 53 channel
- Power Draw430W total (All LED's @ Full)
- Auto sensing power supplyAC 100V/60Hz - 240V/50Hz
- Weight18 lbs. / 7.8 kgs.
| 5 DMX Channel Modes | 3, 6, 7, 48 53 channel |
|---|---|
| Electronic Dimming | 0 - 100% |
| Power Draw | 430W total (All LED's @ Full) |
| Light Source | 16x 30-Watt COB TRI LEDs (RGB: 3 in 1) |
| Refresh Rate | 3.6KHz |
| Auto Sensing Power Supply | AC 100V/60Hz - 240V/50Hz |
| Dimensions (LxWxH) | 13.75" x 6.75" x 14.75"/ 345 x 170 x 370mm |
| Weight | 18 lbs. / 7.8 kgs. |
