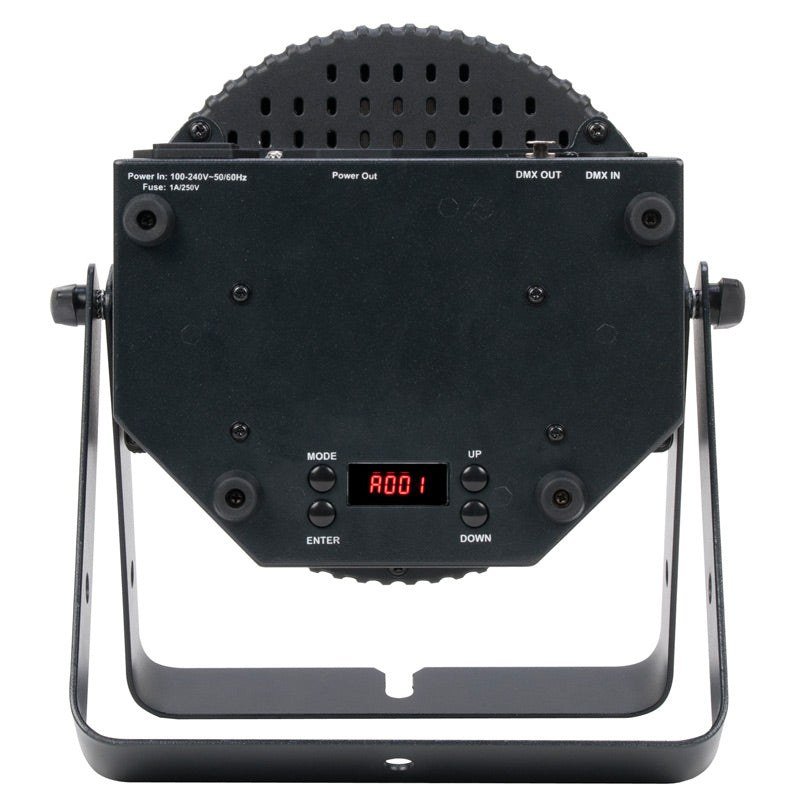

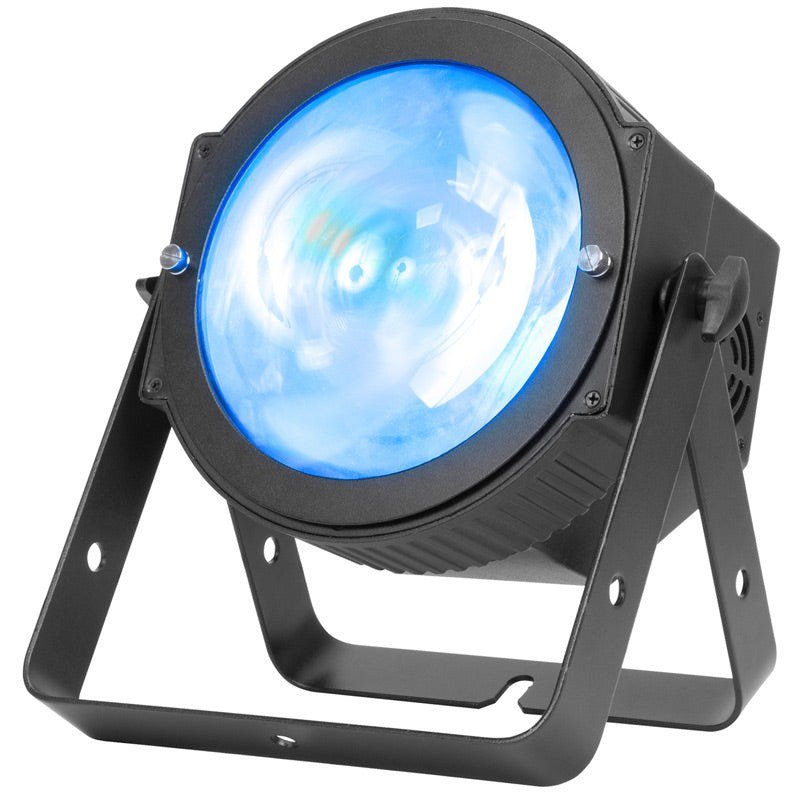

American DJ Dotz Par 100

The American DJ Dotz Par 100 is a COB LED par from American DJ. American DJ lists the light source as 1x 100W COB TRI LED (RGB: 3-IN-1, rated at approximately 50,000 hrs). Published beam angle: 80-degrees (25-degrees with supplied lens kit).

4 Dmx channel modes covers 3, 4, 5 or 9 channel. Power draw is quoted at 100W total (All LEDs @ Full On). Listed dimensions with bracket (lxwxh): 10" x 5.75" x 11"/ 254 x 146 x 280mm. Ordering code DOTZ PAR 100.

Light Source	1x 100W COB TRI LED (RGB: 3-IN-1, rated at approximately 50,000 hrs)
4 DMX channel modes	3, 4, 5 or 9 channel
Beam angle	80-degrees (25-degrees with supplied lens kit)
Light Output	2521 LUX @2M; 648 LUX @4M (25-degree beam -Lens On), 240 LUX @2M; 56 LUX @4M (80-degree beam - Lens Off)
Refresh Rate	3.6KHz
Power Draw	100W total (All LEDs @ Full On)
Dimensions With Bracket (LxWxH)	10" x 5.75" x 11"/ 254 x 146 x 280mm
Dimensions Without Bracket (LxWxH)	8" x 5.75" x 8"/ 203 x 146 x 203mm
