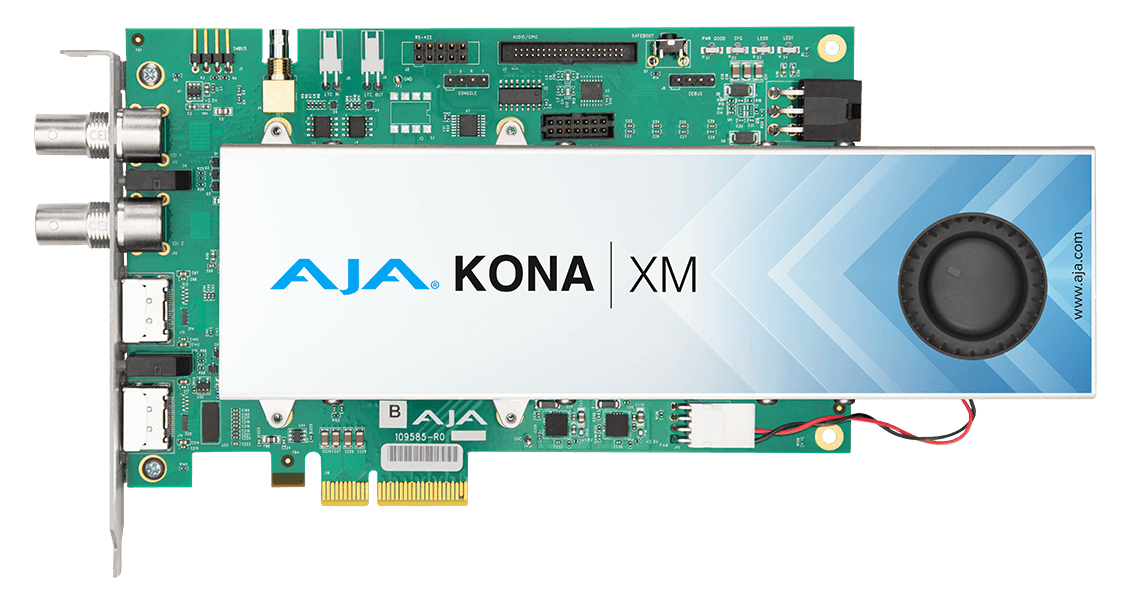

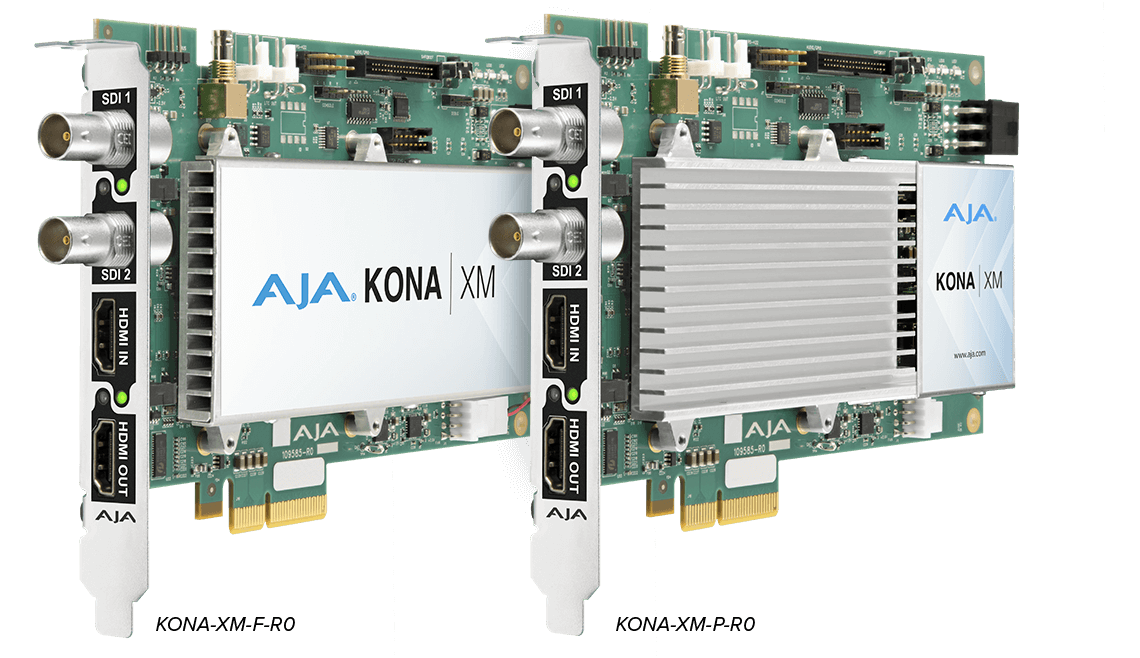

AJA KONA XM Ultra-low-latency 12G-SDI And HDMI 2.0 Developer I/O Card

KONA XM is a desktop and developer I/O card that captures and plays 4K, UltraHD, 2K, HD and SD formats up to 60p. It provides two 12G-SDI BNC connectors and two full-size HDMI 2.0 ports, with latency as low as sub-frame on processed video output.

The card carries 16-channel embedded audio over SDI, supports HDR10 and HLG via HDMI along with VPID signaling over SDI, and connects to the host through a PCIe Gen 3 x4 interface.
