AC Infinity CLOUDLINE S8 8-Inch Inline Duct Fan
The CLOUDLINE S8 is built around an 8-inch collar for high-volume exhaust in a large equipment room, mechanical closet, or ducted enclosure. A PWM-controlled EC motor drives a mixed-flow impeller across 10 speed steps set from the included controller, so airflow can be dialed to exactly what the space needs instead of running full-blast or not at all.
It is built on dual ball bearings rated for 67,000 hours, draws power from a standard 100-240V AC supply, and includes a 10-foot cord to the controller plus an 8-foot cord to the plug for flexible mounting away from the outlet.

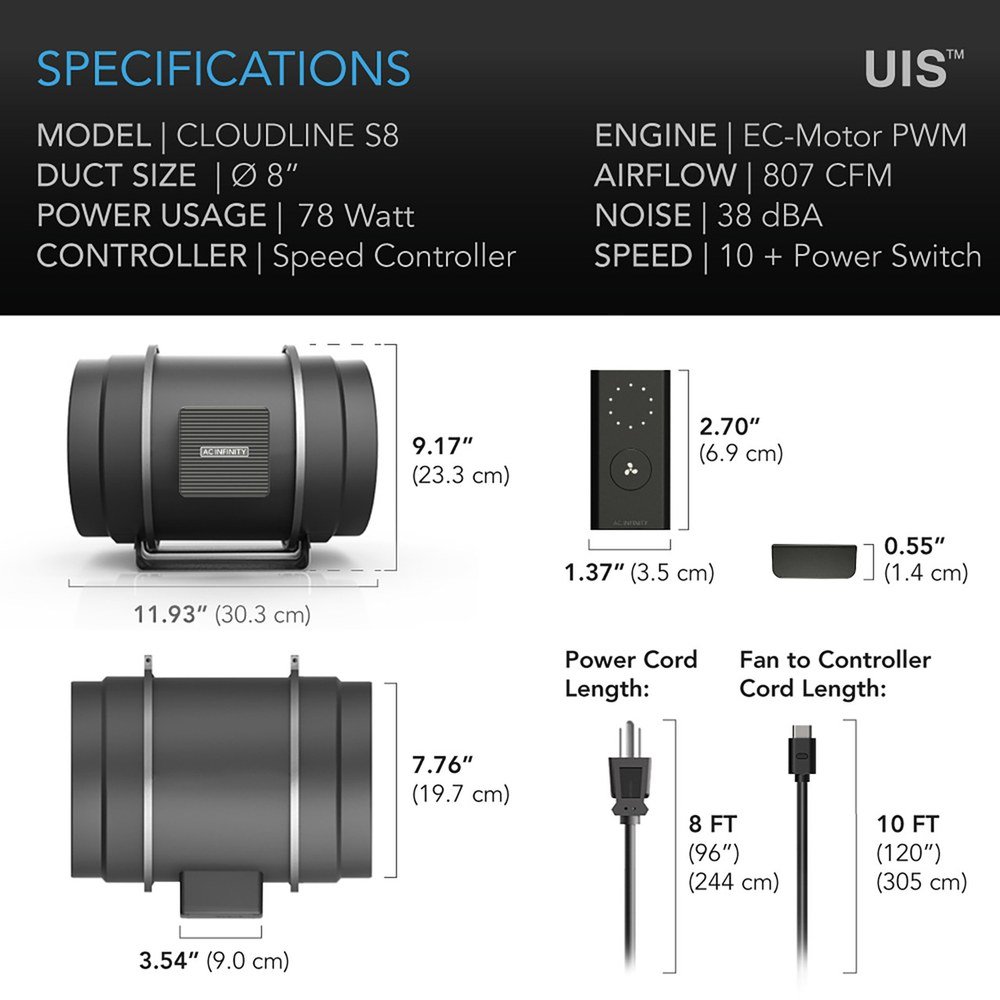

| Duct Size | 8 in. |
|---|---|
| Airflow | 807 CFM |
| Noise Level | 39 dBA |
| Static Pressure | 746 Pa |
| Power | 180 W max, 78 W average, 100 - 240V AC, 2.3A |
| Bearings | Dual Ball, 67,000-hour L10 life |
| Cord Length | 120 in. (10 ft) to controller, 96 in. (8 ft) to plug |
| Dimensions | 8.54 x 11.89 x 9.17 in. |
