AC Infinity CLOUDLINE S4 4-Inch Inline Duct Fan
The CLOUDLINE S4 moves air through 4-inch ducting to exhaust an AV closet, rack room, or any enclosure that needs active ventilation rather than passive venting. A PWM-controlled EC motor drives a mixed-flow impeller across 10 speed steps set from the included controller, so airflow can be dialed to exactly what the space needs instead of running full-blast or not at all.
It is built on dual ball bearings rated for 67,000 hours, draws power from a standard 100-240V AC supply, and includes a 10-foot cord to the controller for mounting the fan up near the ceiling or duct run while the control stays within reach.

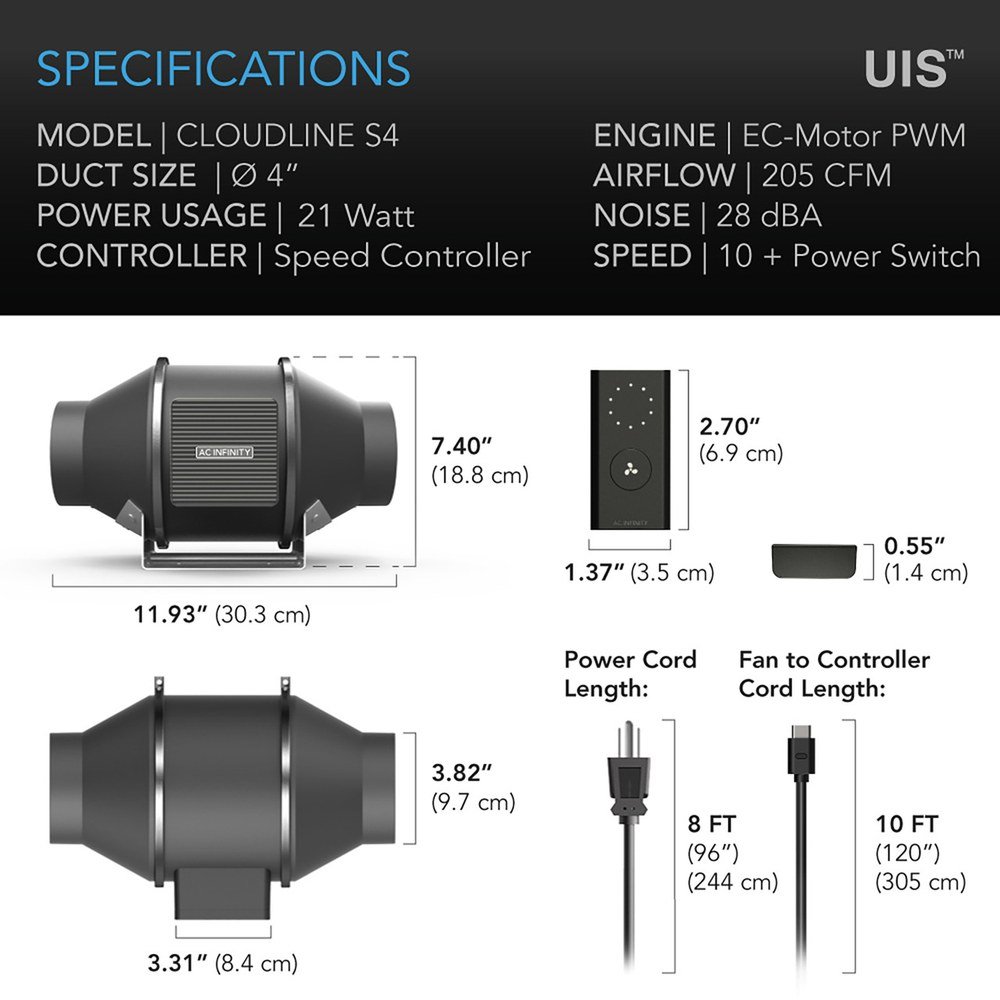

| Duct Size | 4 in. |
|---|---|
| Airflow | 205 CFM |
| Noise Level | 28 dBA |
| Static Pressure | 223 Pa |
| Power | 28 W max, 21 W average, 100 - 240V AC |
| Bearings | Dual Ball, 67,000-hour L10 life |
| Cord Length | 120 in. (10 ft) to controller |
| Dimensions | 7.40 x 11.93 x 6.93 in. |
