YoloBox PRO

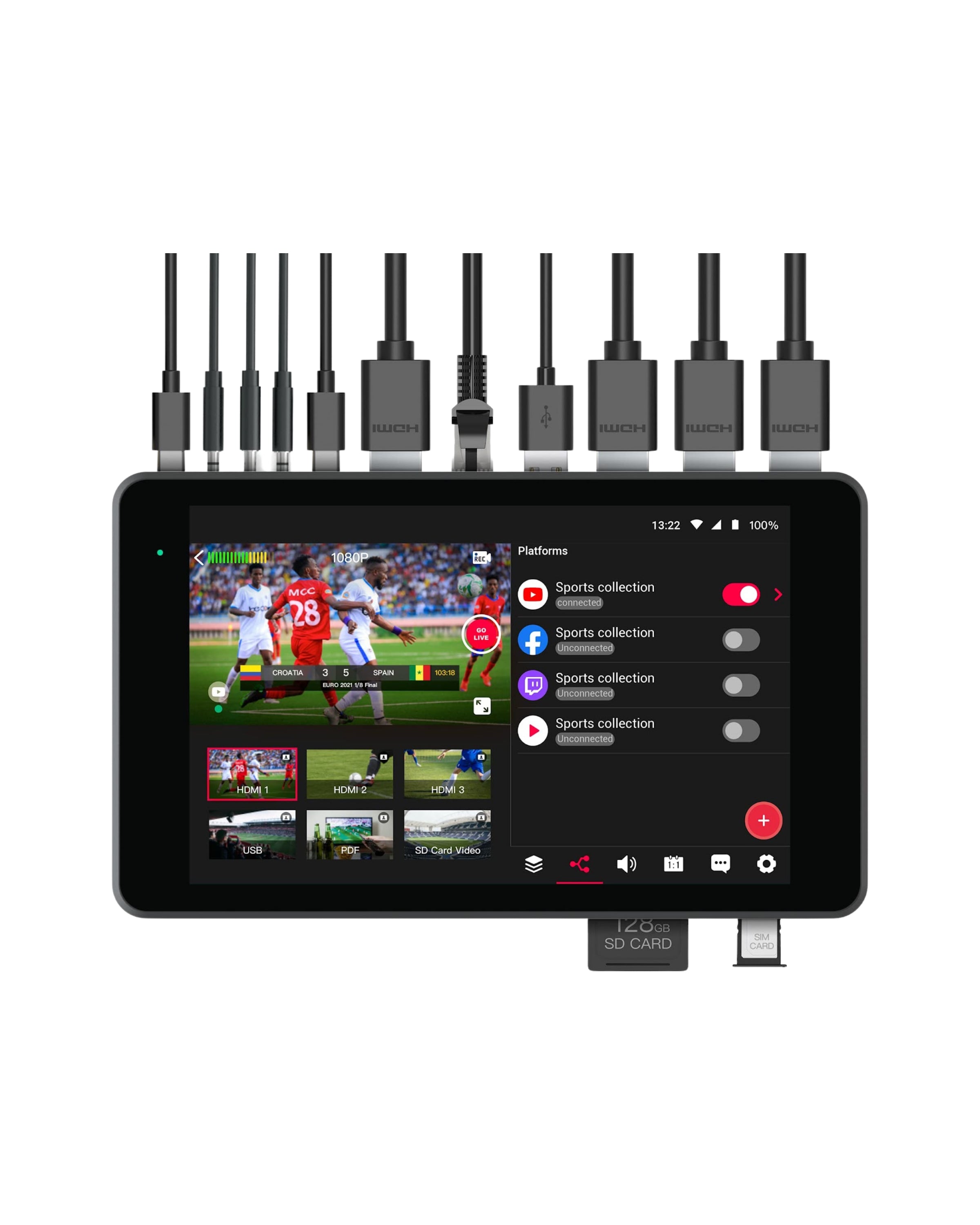

The YoloBox Pro folds the whole live-streaming rack into one 750 gram slab: switcher, H.264 encoder, monitor, and recorder, all driven from an 8 inch touchscreen. Three HDMI inputs plus USB and media stored on the SD card give you up to eight switchable sources, so a three-camera service or a panel with a slide feed runs off one operator's fingertips. You cut, add lower thirds, drop in a scoreboard or a countdown, and monitor the program feed on the same glass, without a laptop, a capture card, or a software switcher in the chain.
It gets online three ways: Ethernet, 2.4/5 GHz Wi-Fi, or 4G LTE with your own SIM, and it will push RTMP(S) to as many as three platforms at once at 540p, 720p, or 1080p. Every stream can be recorded to SD as MP4 at the same time, on cards up to 128 GB, which is your archive when the venue's uplink hiccups. Mic and line inputs handle a board feed or a shotgun, and the internal 10,000mAh battery means it will run through an event that has no power drop nearby. Charges and runs over USB Type-C with Quick Charge 3.0.

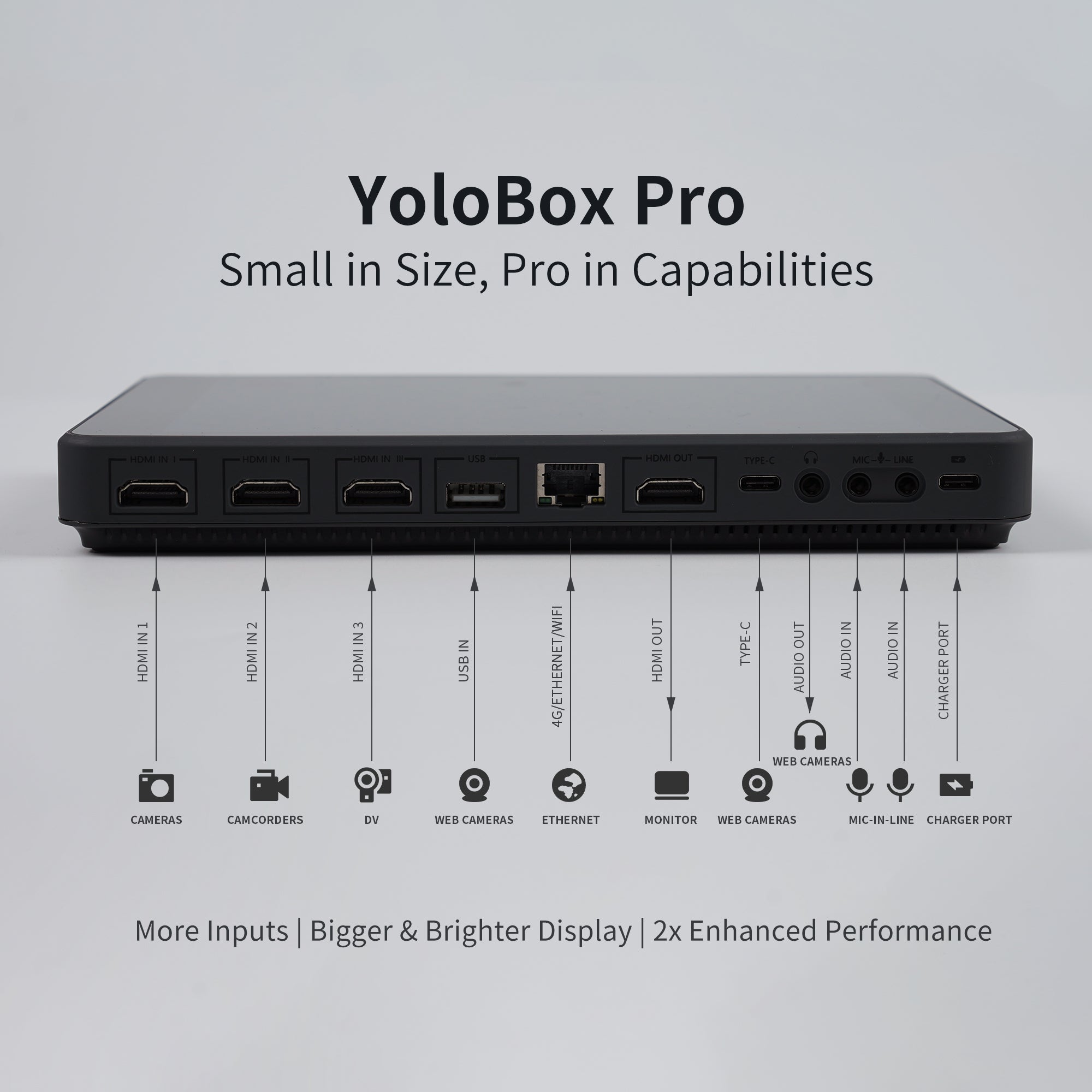

| Video Inputs | 3 x HDMI, USB, plus media from the SD card; up to 8 switchable sources |
|---|---|
| Maximum Input Format | 1080p / 1080i / 720p |
| Video Encoding | H.264 |
| Streaming Resolution | 540p / 720p / 1080p |
| Streaming Protocol | RTMP(S), up to 3 platforms simultaneously |
| Recording | MP4 to SD card, expandable to 128 GB (FAT32, exFAT, NTFS) |
| Audio | Mic in (mono) and line in (stereo); AAC encoding |
| Network | Ethernet, 2.4/5 GHz Wi-Fi, 4G LTE via SIM slot |
| Display | 8 in touchscreen |
| Battery | 10,000mAh internal |
| Power | USB Type-C, Quick Charge 3.0 |
| Dimensions / Weight | 218 x 129 x 27 mm; 750 g |
