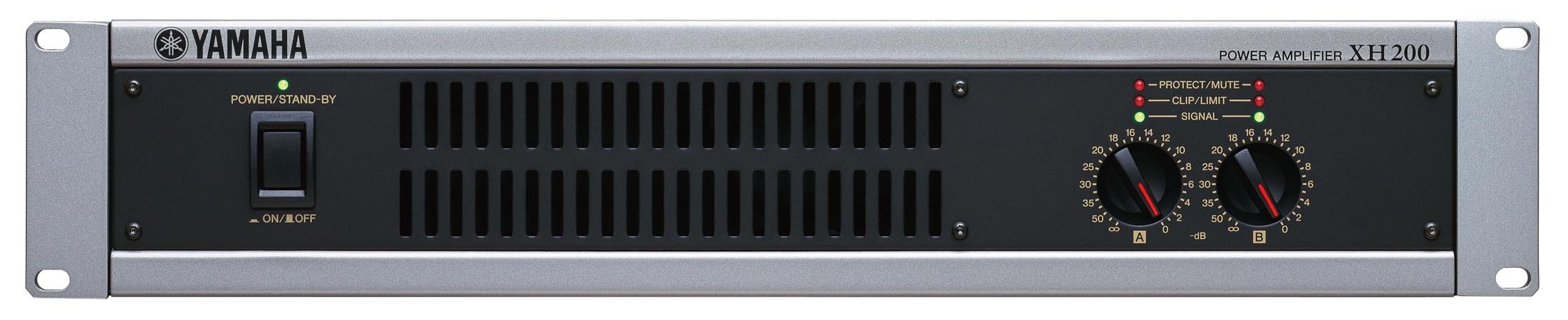

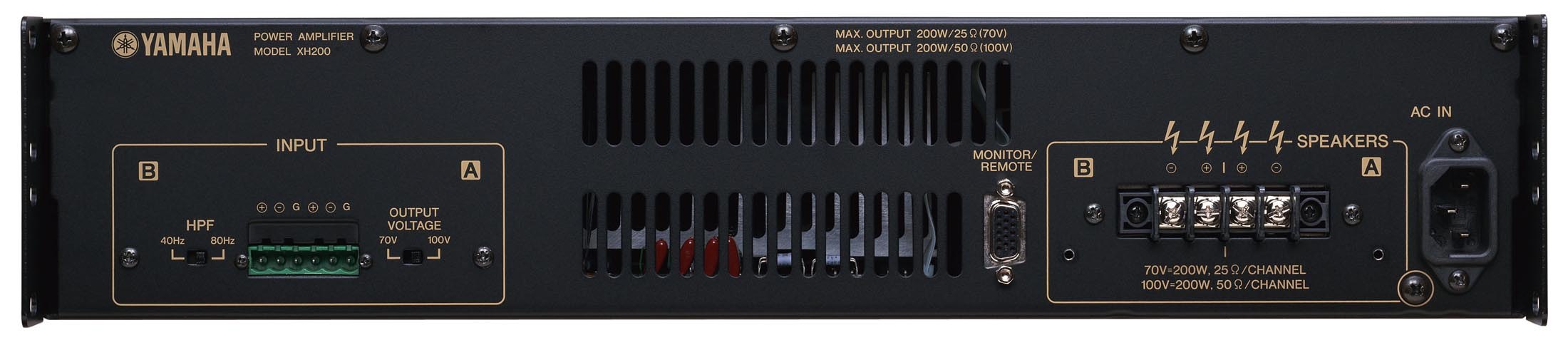

Yamaha XH200 Power Amplifier

The Yamaha XH200 is a power amplifier. Rated performance: 70v line 200W x 2, RL=50ohms; 100v line 200W x 2, RL=25ohms; frequency response +0dB, -0.5dB (HPF=40Hz, 80Hz~20kHz).

G&G Technologies is an authorized Yamaha dealer; call or email for stock and lead time.

Type	Power amplifier
70V line	200W x 2, RL=50ohms
100V line	200W x 2, RL=25ohms
Total harmonic distortion	Less than 0.1% (40Hz-20kHz; Halfpower), RL=4ohms
Intermodulation distortion	Less than 0.1% (60Hz:7kHz=4:1; Halfpower)
Frequency response	+0dB, -0.5dB (HPF=40Hz, 80Hz~20kHz)
S/N ratio	More than 103dB (DIN AUDIO)
Residual output noise	Less than -65dBu
