Yamaha HS8S Powered Studio Subwoofer
The Yamaha HS8S is a powered studio subwoofer built to extend the low end of an HS nearfield system. An 8-inch bass-reflex driver and a 150W amplifier reach down to 22 Hz, giving mix engineers a full-range picture of sub-bass content that stand-mounted monitors cannot reproduce on their own.

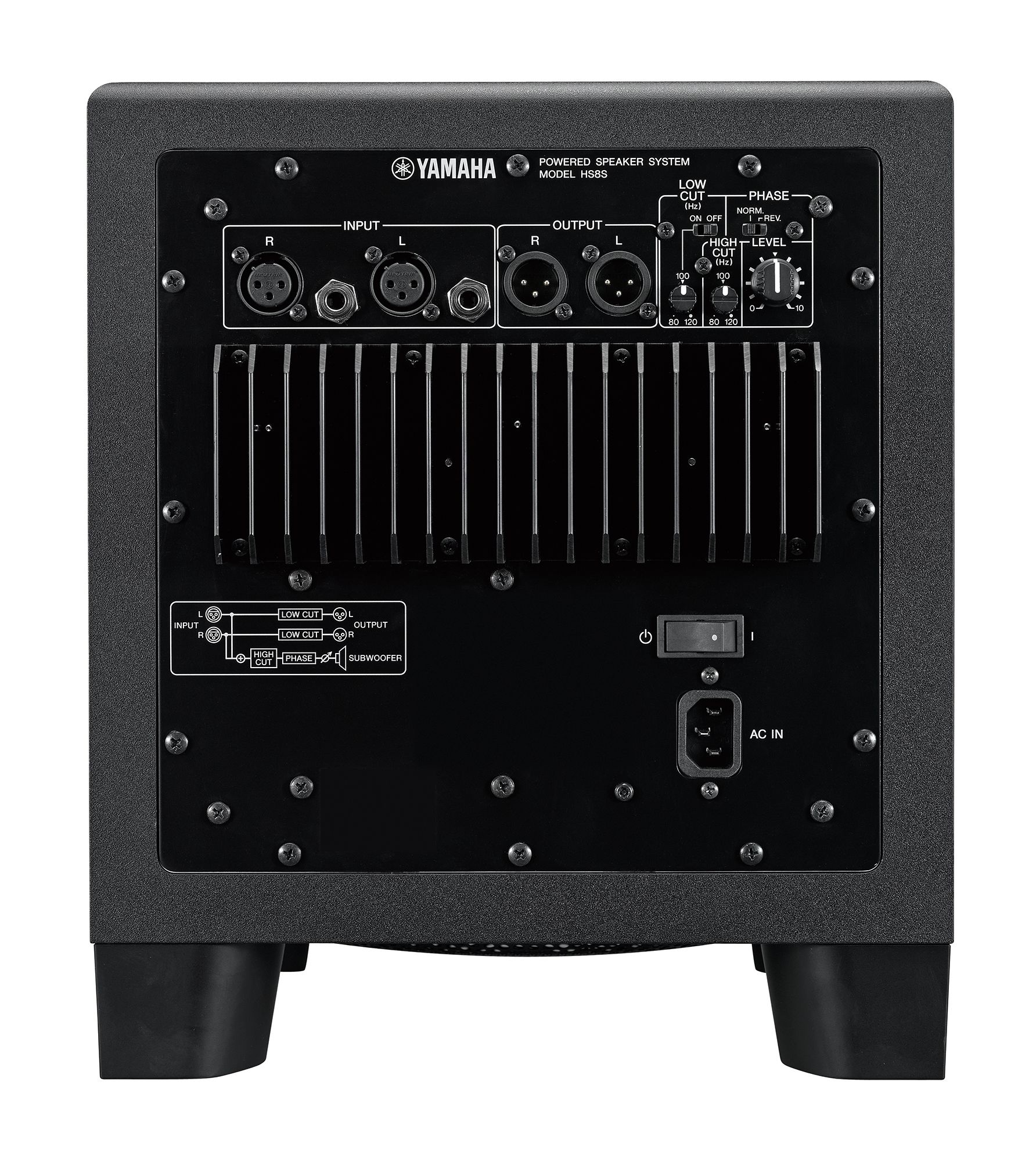

A rear PHASE switch and a variable low-cut/high-cut crossover let it integrate cleanly with the main monitors, and XLR/TRS inputs and outputs pass the main signal through for a simple 2.1 hookup. The cabinet uses the same matte finish and non-resonant construction as the rest of the HS range, so it disappears into the room rather than coloring the mix.
| Type | Powered studio subwoofer |
|---|---|
| Driver | 8" cone, bass-reflex |
| Amplifier | 150W |
| Frequency Response | 22 Hz - 150 Hz (-10 dB) |
| Crossover | Variable low-cut and high-cut |
| Inputs | XLR and TRS phone (L/R) |
| Outputs | XLR and TRS phone (L/R) with high-cut |
| Controls | Level, Phase, High/Low cut |
