Yamaha DCP Digital Control Panel

The DCP series is Yamaha's wall-mount control panel line for a DME7 or MTX/MRX processor, or an MA/PA series amplifier, so a conference room, classroom, or zone can adjust its own volume and recall presets without anyone touching the rack. Every panel connects over a single CAT5 cable that carries RS485 control data and power together, so there is no separate power supply to run to the wall plate.

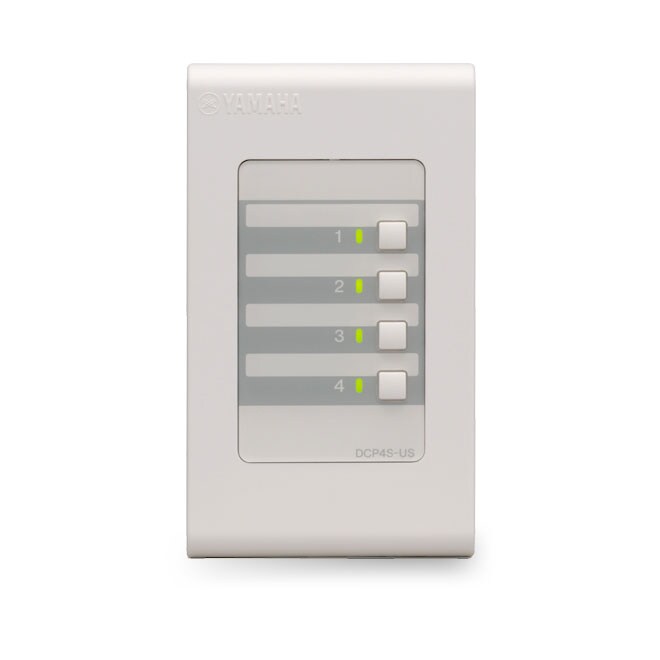

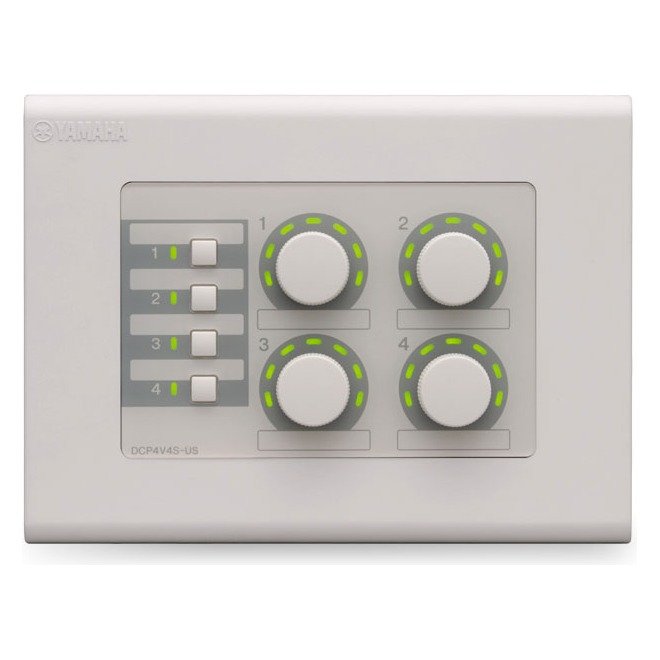

The three panels differ only in control layout: the DCP1V4S-US pairs one volume knob with four assignable switches, the DCP4S-US drops the knob for four switches only, and the DCP4V4S-US steps up to four volume knobs plus four switches for a room with several zones or sources at one plate. Up to 8 DCP panels can run off a single DME7 or MTX/MRX processor, or up to 2 off an MA2120 or PA2120 amplifier.
