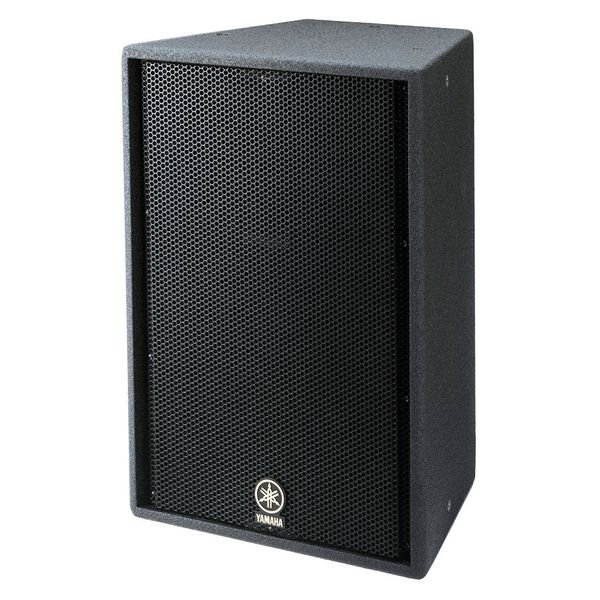

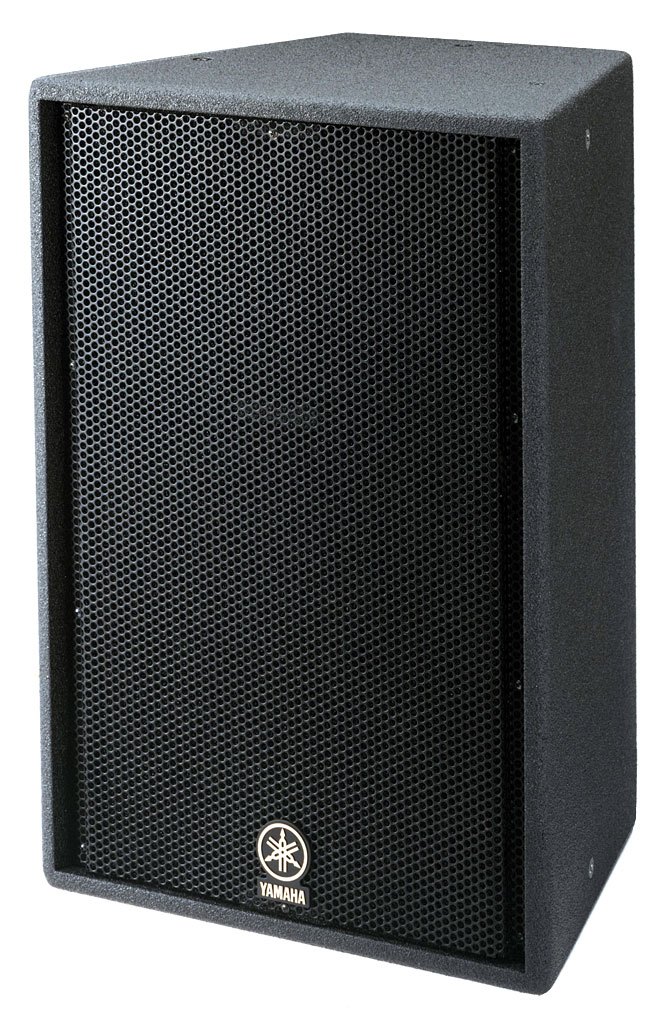

Yamaha Concert Club V Installation Loudspeaker

The Concert Club V cabinets share the drivers and voicing of the portable Club Series V but are trimmed for fixed installation, where the box goes up once and stays there. Each is a two-way bass-reflex design with a 2-inch voice-coil compression driver on a 90 x 40 degree horn, matched across the range so a room can mix 12-inch and 15-inch boxes without a coverage seam.

C112V, C115V, and C215V keep the portable connector panel of two 1/4-inch phone jacks and two Neutrik Speakon NL4MP connectors. The VA models change the back panel to a barrier strip terminal and ship with four 3/8-inch eyebolts, which is what a contractor wants when the cabinet is flown from structure and wired in conduit. Nominal impedance is 8 ohms on the single-driver cabinets and 4 ohms on the dual-15 C215V.
