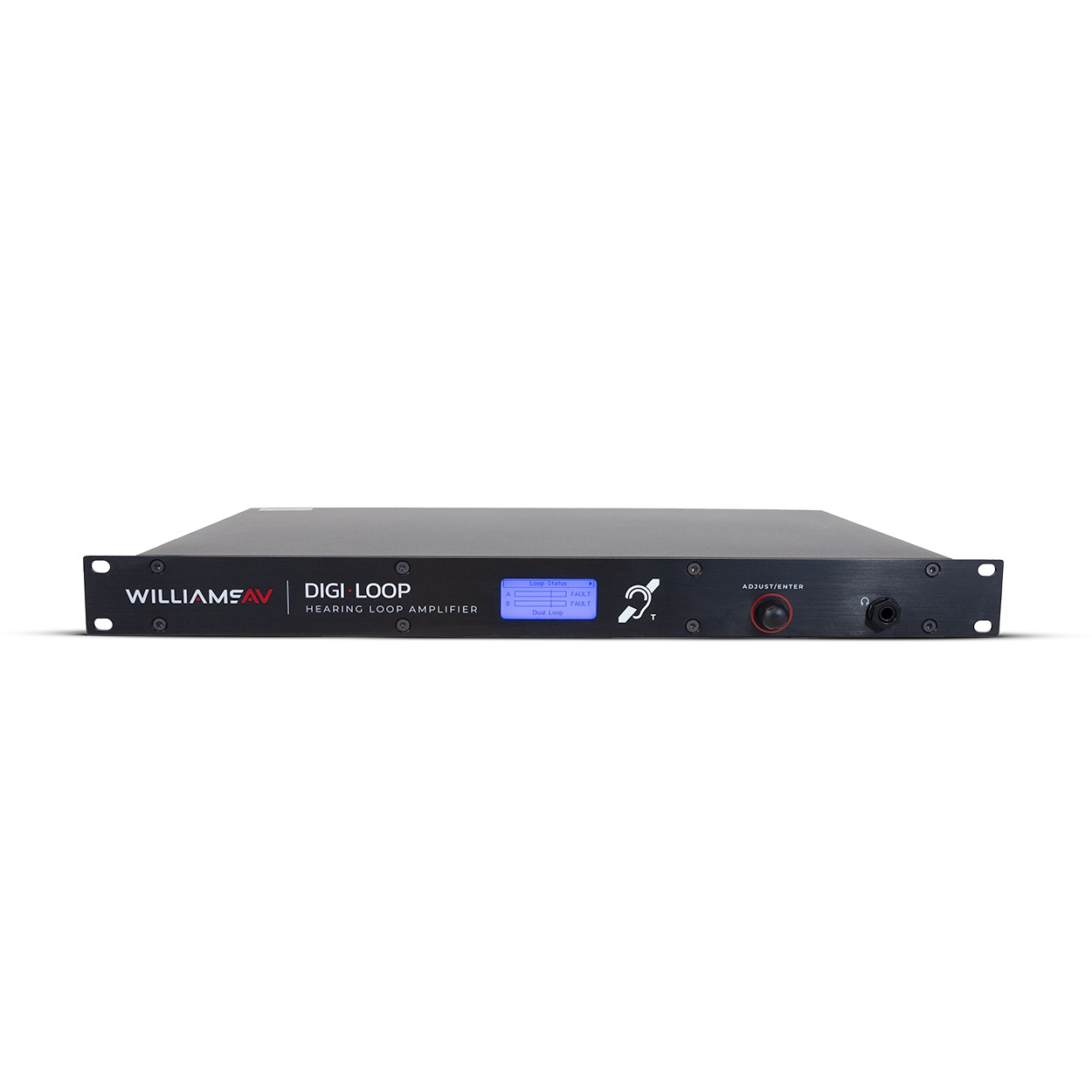

Williams AV Digi-Loop Medium Area, Single Channel Hearing Loop System
The DL107 SYS Hearing Loop System, designed for medium spaces, extends hearing support across a single channel those with T-coil-enabled hearing aids, cochlear implants and included hearing loop receivers. Network-control capability provides seamless, remote system set-up, operation, and monitoring via laptop or tablet. This amplifier is well-suited for areas such as waiting rooms and small meeting rooms.

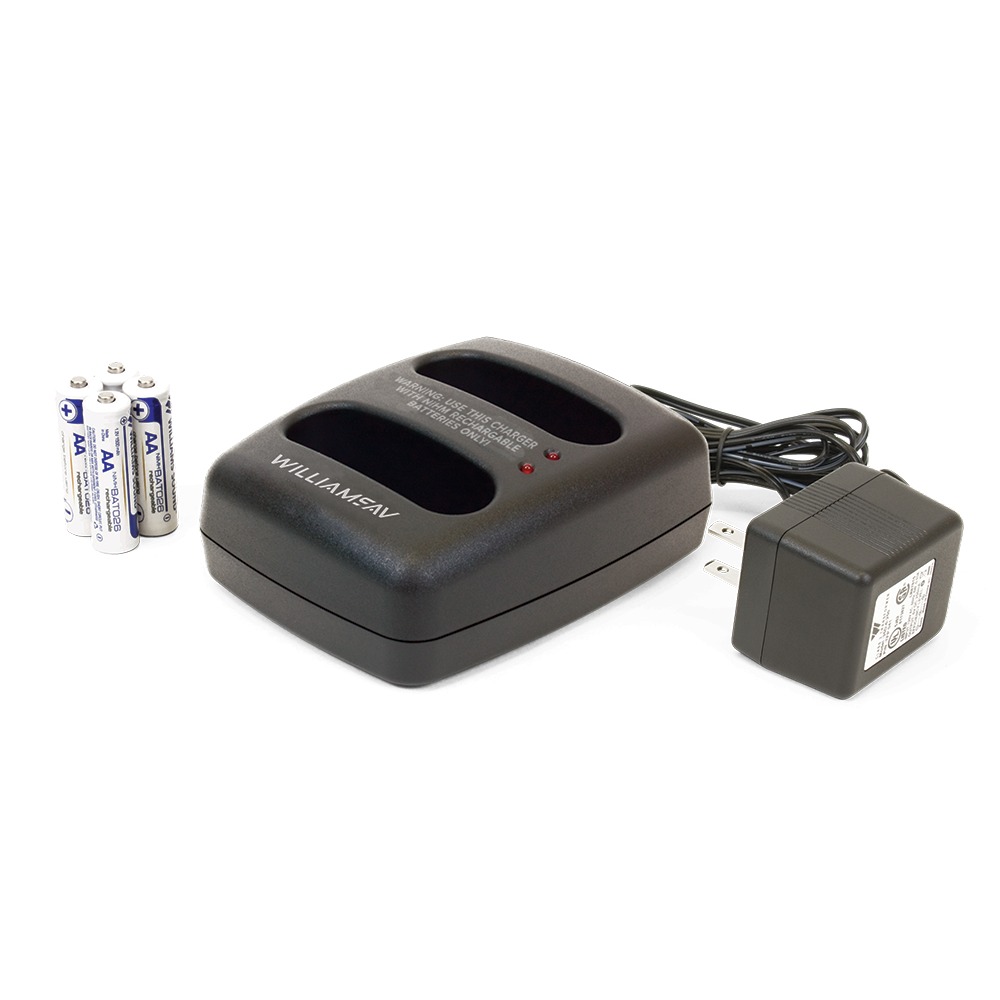

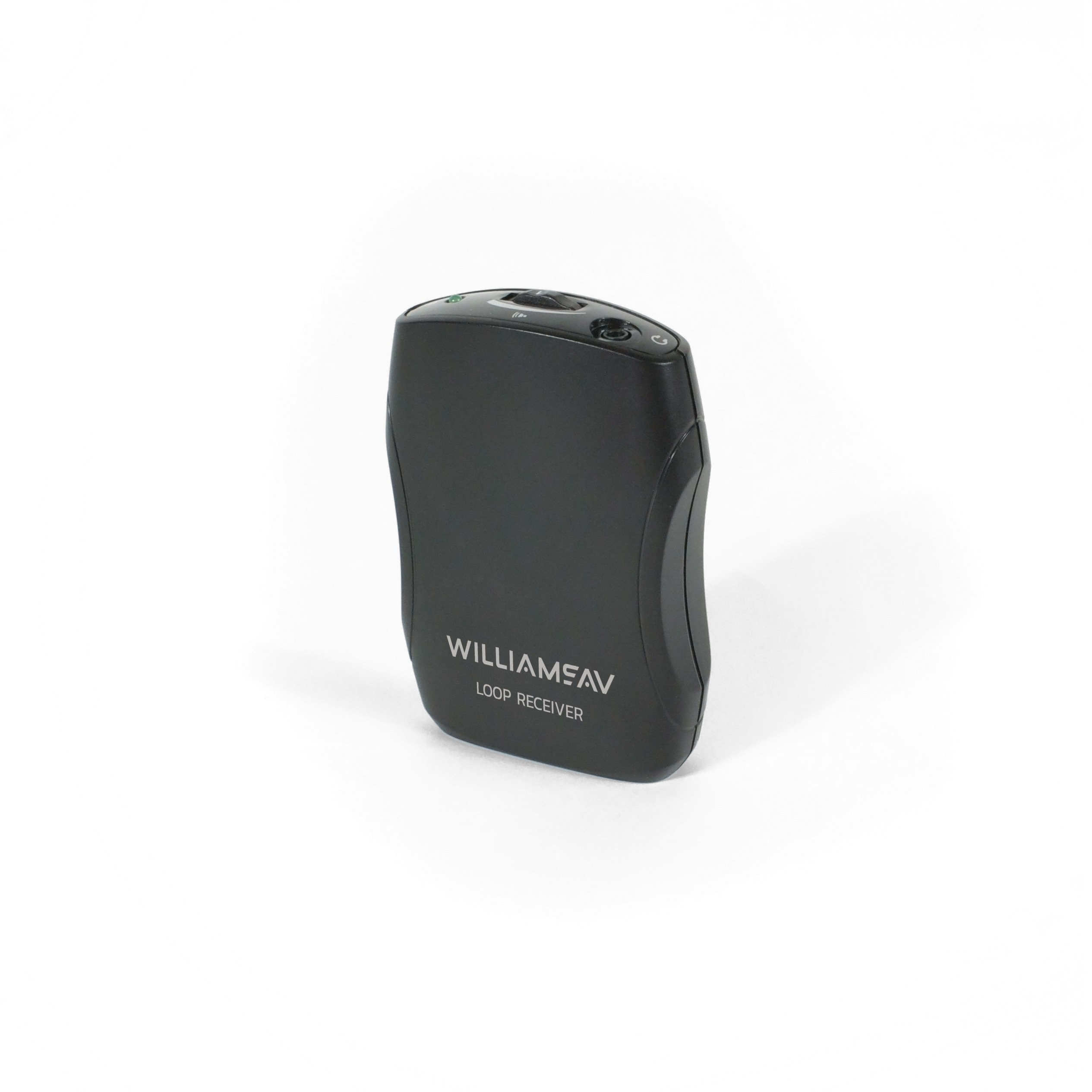

Williams AV builds for install: the transmitters rack, the receivers charge in bays rather than one at a time, and the earphones and neckloops are replaceable parts rather than a sealed accessory. Ordered as part number DL107SYS. Published dimensions, power and warranty are in the specifications tab.
| Part Number | DL107SYS |
|---|---|
| Category | Hearing Loop Systems, ProAV, Perimeter Loops |
| Dimensions | 1 RU Rackmount, 19" W x 1.75" H x 10" D. Chassis is 17" W. |
| Weight | DL107: 9.2 lbs (4.2 kg) DL207: 9.2 lbs (4.2 kg) |
| Color | Case: Black, white and blue legends on front, white legends on back. LCD: Backlit Blue. |
| Fan cooling | Variable Speed, Temperature Controlled |
| Power supply | Internal, Universal 100-240 VAC, 50/60 Hz, 200 Watt. Fuse: 5 x 20 mm, 5 A, 250 V. AC power plug is IEC 320-C14. |
| Heat output @ 120 VAC | DL107 : Sleep State: 63 BTU/hr; Idle State: 71 BTU/hr; Driving one loop @ 9.5 A: 339 BTU/hr |
| Warranty | 2 years |
| Brand | Williams AV |
