Whirlwind PLR-PS2 Rack Power Pack with LED Bar

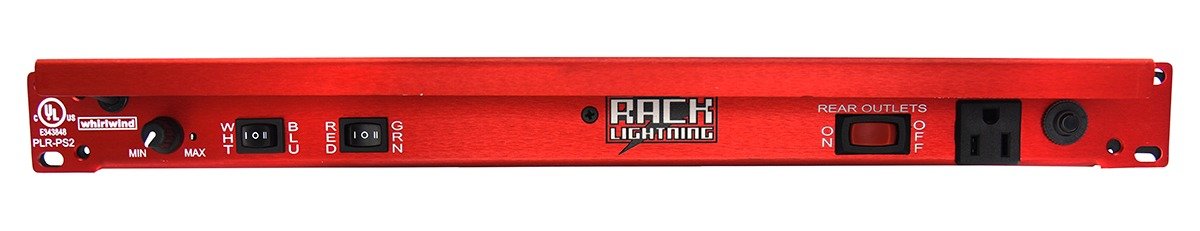

The PLR-PS2 combines a filtered rack power pack with a built-in light. An integrated horizontal LED bar does RGBW colour mixing with variable dimming down to off, so the rack lights itself instead of relying on somebody's phone torch.
Outlets are three rear 15 A duplex on the switched circuit, one rear 15 A duplex unswitched, and one front 15 A simplex unswitched. Surge suppression and EMI filtering are built in at better than 50 dB differential mode and better than 40 dB common mode from 200 kHz to 10 MHz, with a maximum inrush current of 91 A. It is 1 RU, 5.5 in. deep, on a 6 ft captive power cord, and carries the 5 year Power Link warranty.
| Type | Rack mount AC power pack with integrated lighting |
|---|---|
| Lighting | Integrated horizontal LED bar, RGBW colour mixing, variable dimming plus off |
| Switched outlets | Three 15 A duplex, rear |
| Unswitched outlets | One 15 A duplex rear, one 15 A simplex front |
| EMI filtering | Differential mode > 50 dB, common mode > 40 dB, 200 kHz to 10 MHz |
| Max inrush current | 91 A |
| Format | 1 RU, 5.5 in. deep, 6 ft captive power cord |
| Warranty | 5 years |
