Wooden Camera UMB-1 Universal Mattebox (Pro)

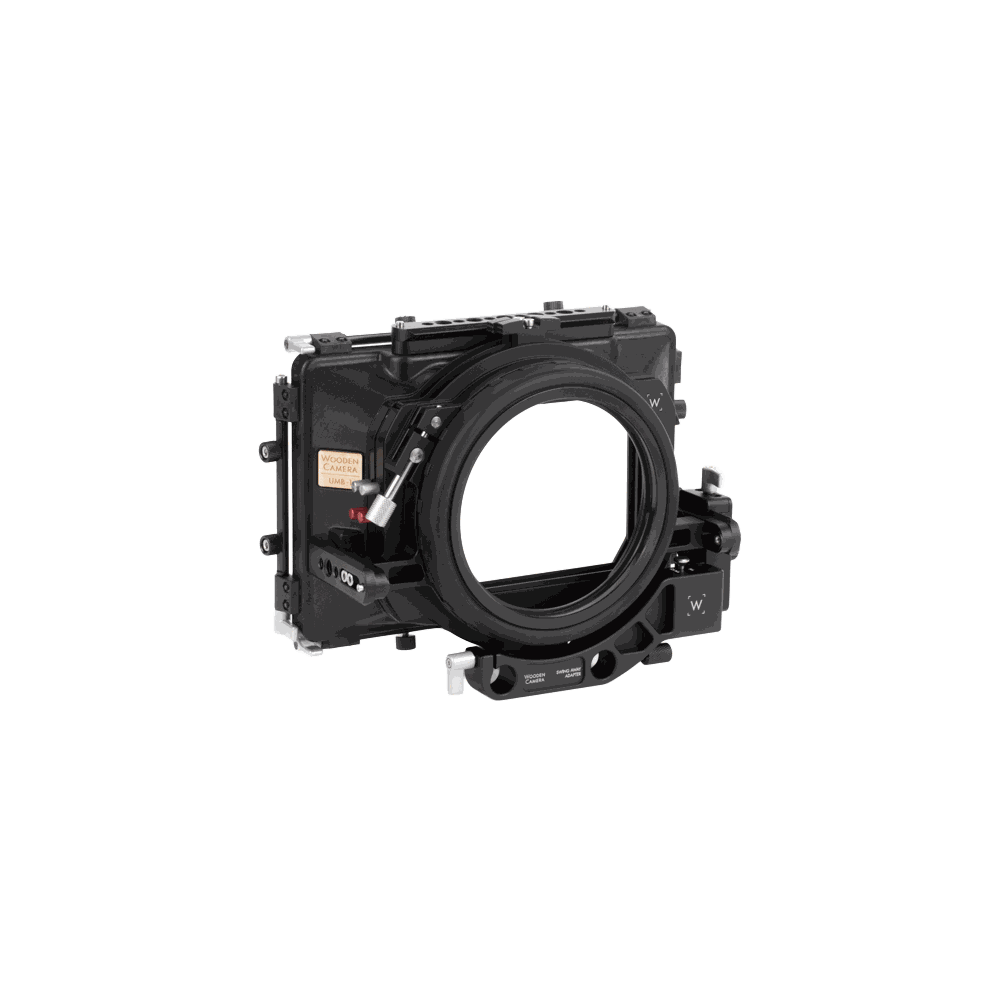

The UMB-1 Pro is natively 15mm LW rod based, with two rotating 4x5.65 filter stages (a third optional), a folding French flag, a 143mm native opening, and NATO-standard accessory rails on left, right, and top. ARRI-style rubber bellows with a 114mm standard opening pair with a complete set of snap-in reduction rings that share tabs compatible with third-party 114mm threaded bellows, making lens changes fast.
A height-adjustable swing-away bracket, left and right side flags, a bottom flag, and a full clamp-on adapter set are all included, and the whole system adapts to 15mm Studio or 19mm rods via the separate Universal Mattebox adapter accessories. It ships in custom foam sized for a Pelican 1550 hard case (not included).
| Filter Stages | 2x rotating 4x5.65 (3rd stage optional) |
|---|---|
| Bellows | ARRI-style rubber, 114mm standard opening |
| Reduction Rings Included | 80, 87, 95, 104, 110mm |
| Clamp-On Adapters Included | 80, 87, 95, 104, 110, 114, 125, 134, 136mm |
| Weight | 1.85 lb (2.3 lb with top flag) |
| Dimensions | 9 x 6 x 3.5 in |
| Rod Compatibility | 15mm LW native; 15mm Studio/19mm via adapter |
