Wooden Camera Quick-Disconnect Receivers

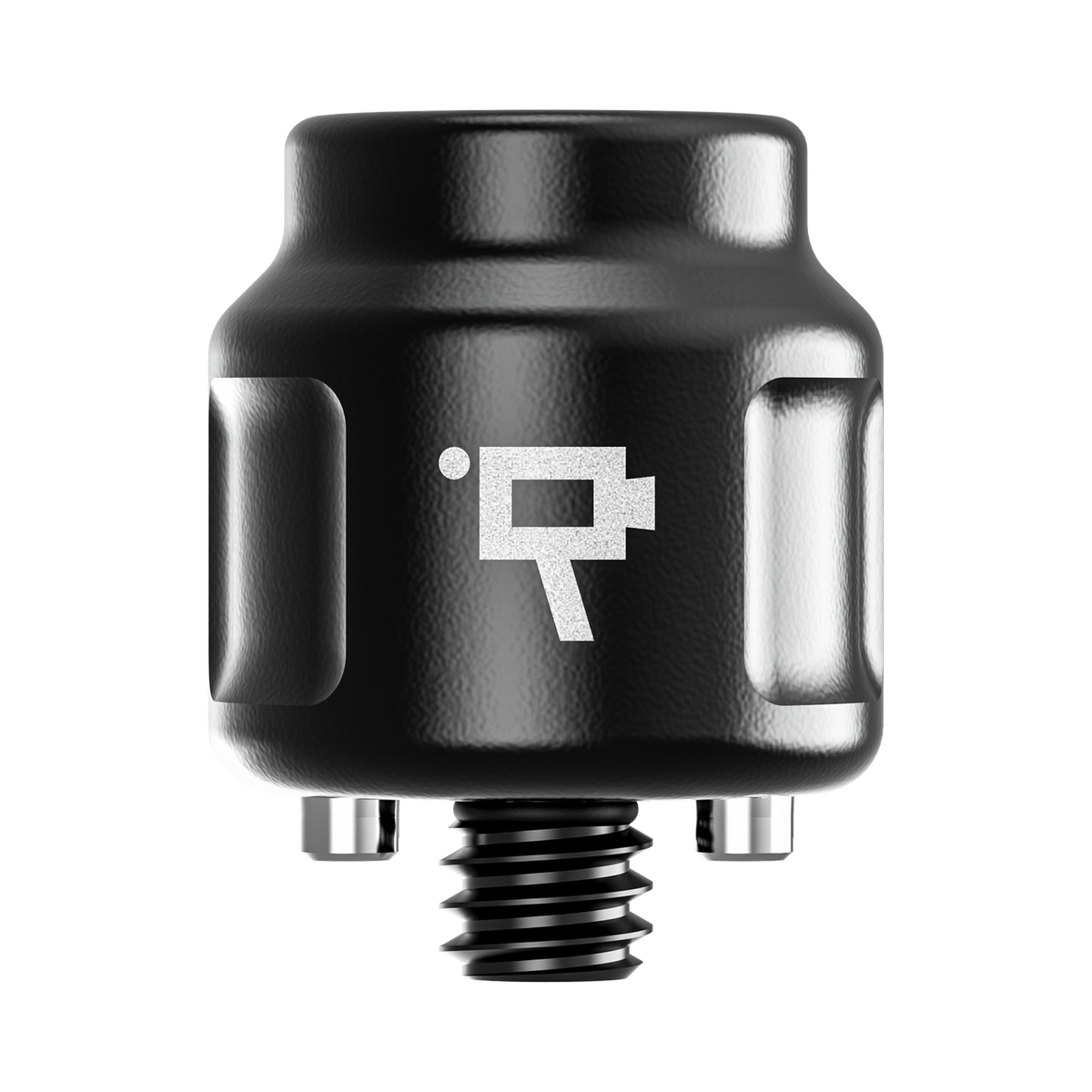

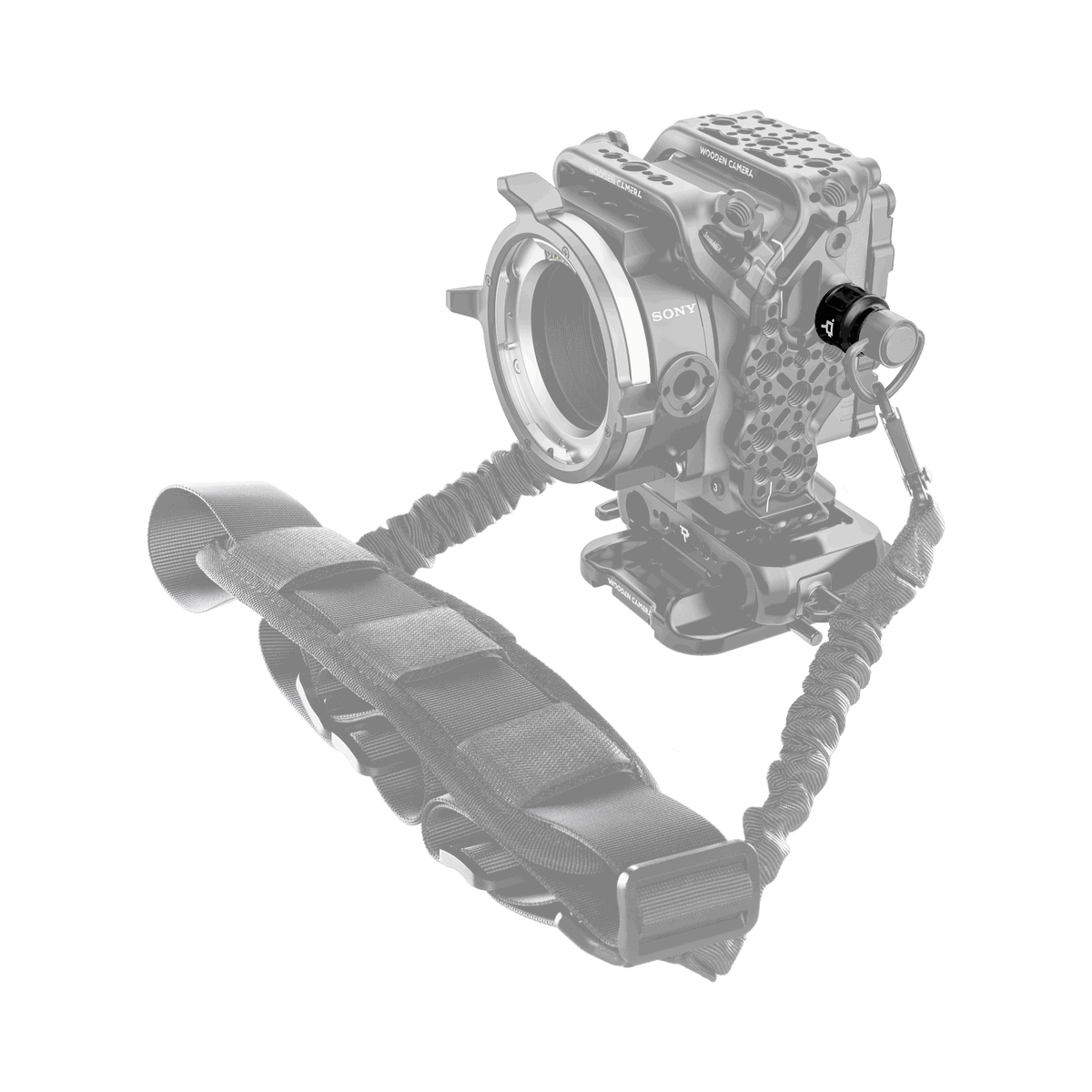

These are the anti-twist swivel receivers for Wooden Camera's QD camera strap system - the half that stays bolted to the rig while the strap comes and goes. They come in two designs and three mounting patterns, so you can match the receiver to the hardware you already have: a single 3/8"-16, a single 1/4"-20, or a dual 1/4"-20 that sits lower against the body.

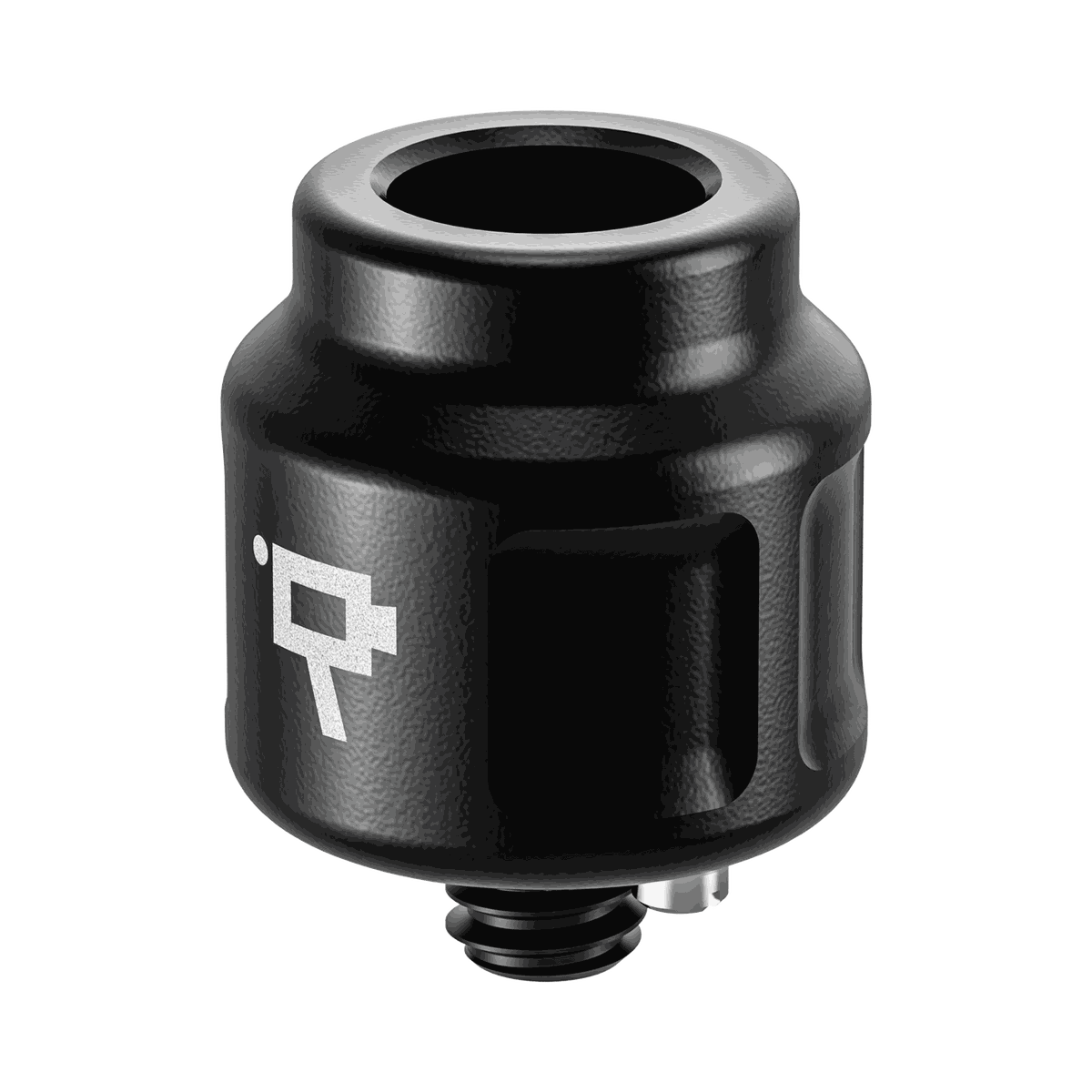

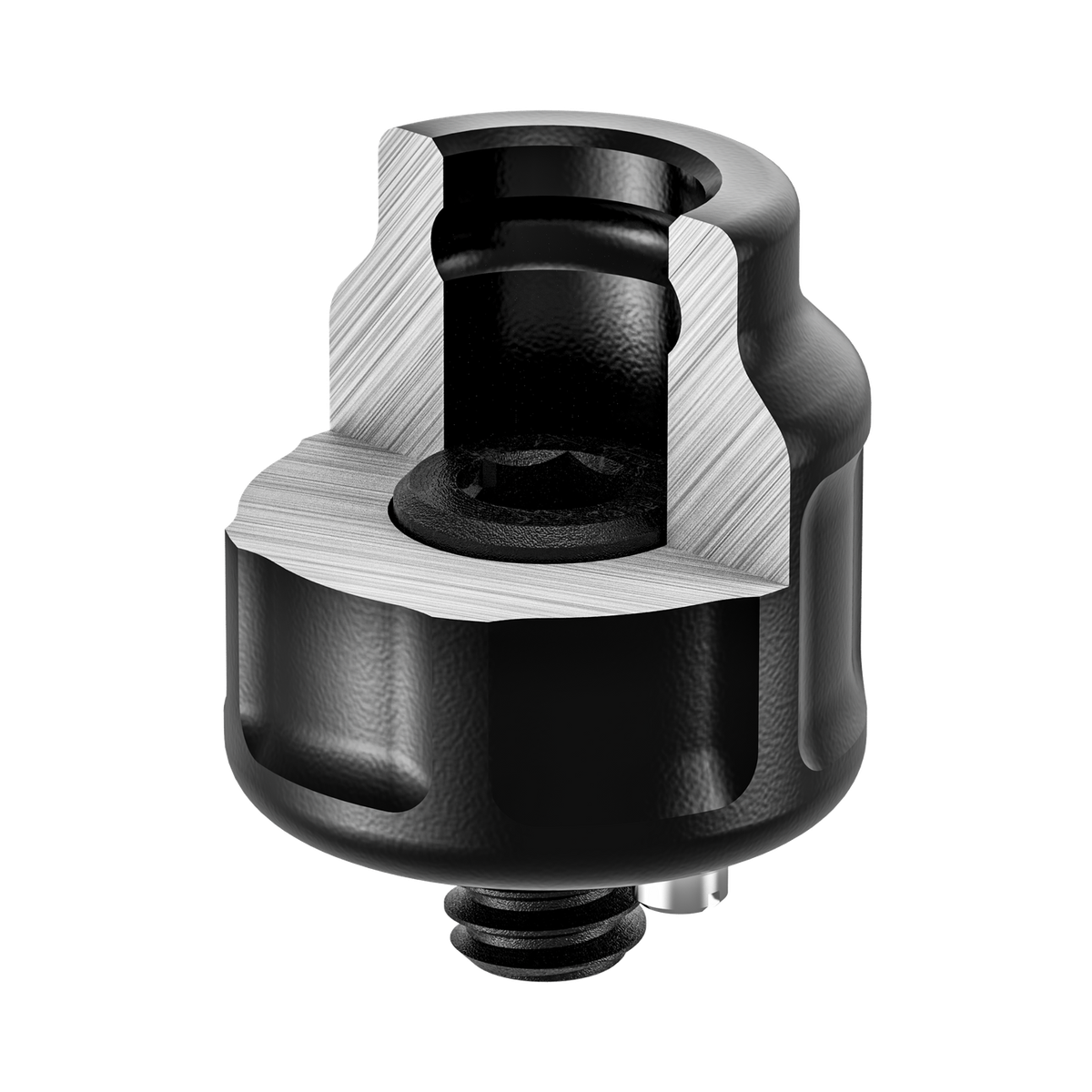

The 8-Position version uses a biconvex detent that locks the D-ring in place, holding a chosen triangle-ring orientation instead of letting it free-spin and creep out of balance; eight positions cover most builds. The 360-degree version does the opposite on purpose, spinning freely so a strap can move with the operator. The 1/4"-20 receivers include removable anti-twist pins that set to 10.4mm, 11.68mm and 15mm patterns with two spares in the base, and a 3/16 inch hex tool secures either style to its screw hole.
