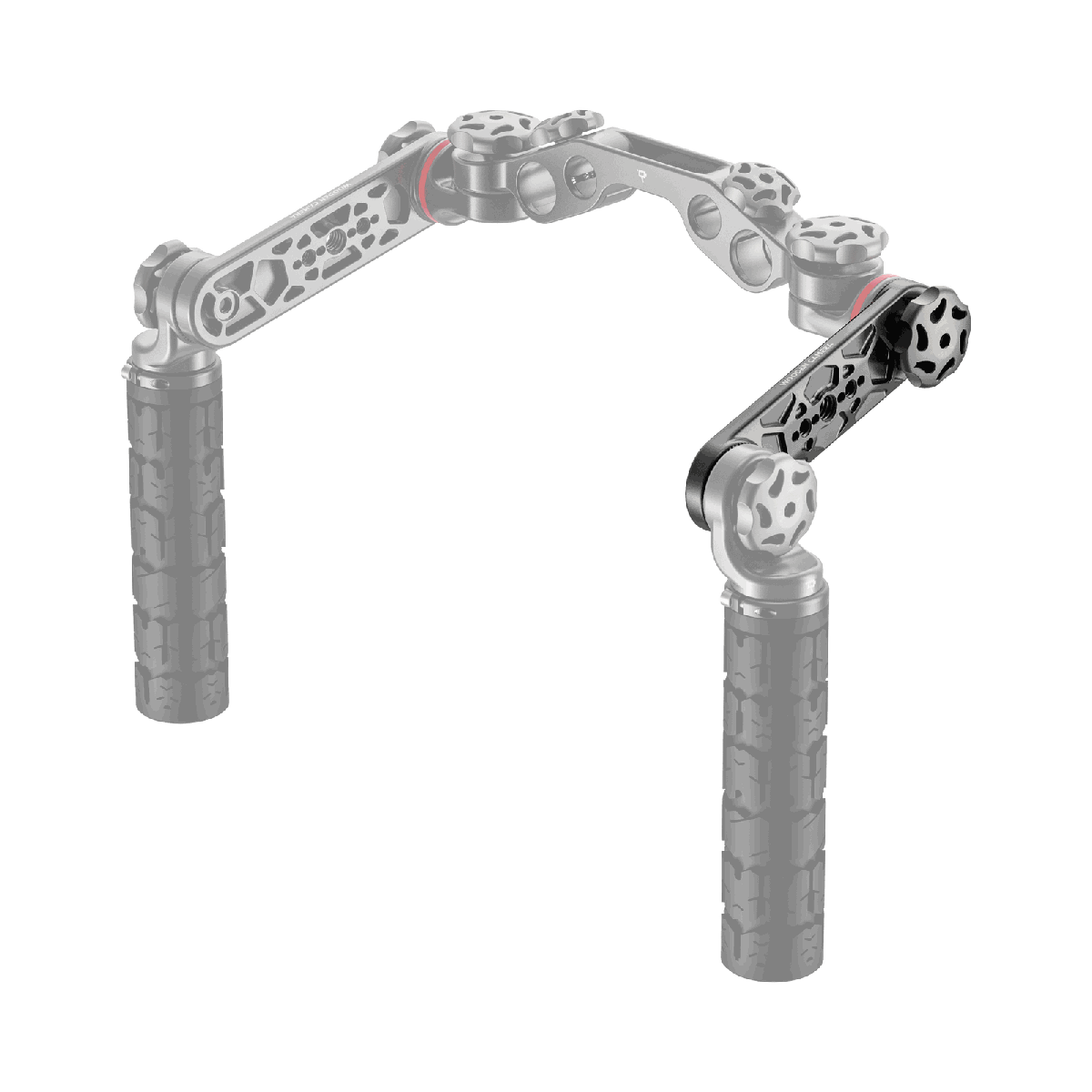

Wooden Camera Extension for Elite Handheld Accessories
The Extension for Elite Handheld Accessories is a shoulder rig component from Wooden Camera. This lightweight Extension is manufactured with 7075 Aluminum featuring a pentagonal design to maintain the structure and strength for high-stress shooting scenarios. Each extension incorporates a 5-degree offset allowing the full kit units to fold down for storage and 32mm rosettes take the industry standard M6 screws to tie in rosette accessories. 1/4"-20 and 3/8"-16 mounting points are added along the center of the extension for attaching accessories like monitors.
G&G stocks it in 3 versions: 4", 6", 8". The 2" Extension weighs 58.51g (0.13 lbs) and measures 39.7 x 29.5 x 29.7 mm (1.56 x 1.16 x 1.17 in). It mounts via 1/4"-20, 3/8"-16, M6. The body is machined from aluminum.
| Type | Shoulder Rigs |
|---|---|
| Weight (2" Extension) | 58.51g (0.13 lbs) |
| Dimensions (2" Extension) | 39.7 x 29.5 x 29.7 mm (1.56 x 1.16 x 1.17 in) |
| Weight (4" Extension) | 129.3g (0.28 lbs) |
| Dimensions (4" Extension) | 134.7 x 31 x 32.6 mm (5.3 x 1.22 x 1.28 in) |
| Weight (6" Extension) | 156.5 g (0.35 lbs) |
| Dimensions (6" Extension) | 185.5 x 31 x 32.6 mm (7.3 x 1.22 x 1.28 in) |
| Weight (8" Extension) | 182.3g (0.4 lbs) |
| Dimensions (8" Extension) | 236.6 x 31 x 32.6 mm (9.31 x 1.22 x 1.28 in) |
| Mounting / Interface | 1/4"-20, 3/8"-16, M6 |
| Material | Aluminum |
| Available Versions | 4", 6", 8" |
| Manufacturer Part Number | A00885, A00886, A00887 |
