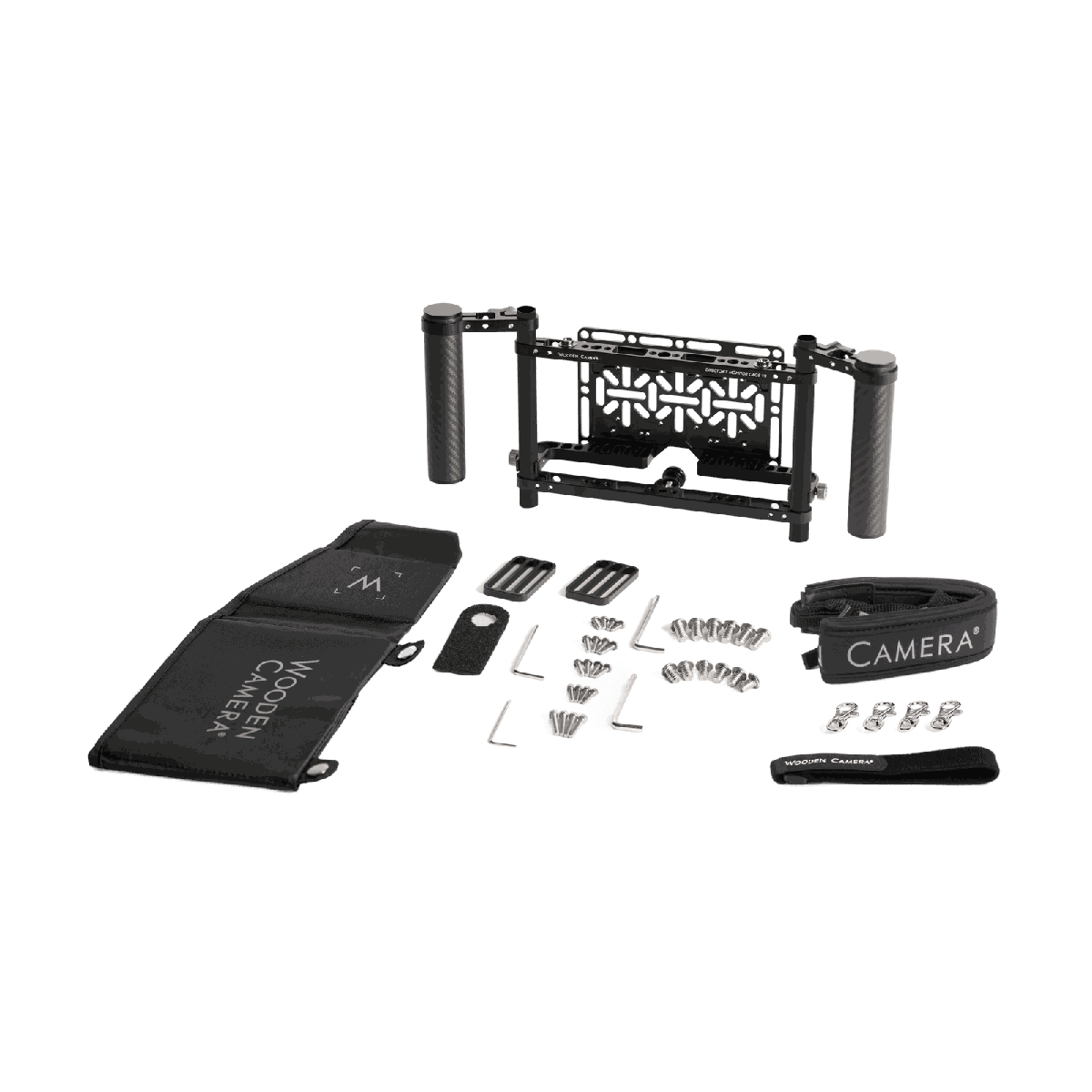

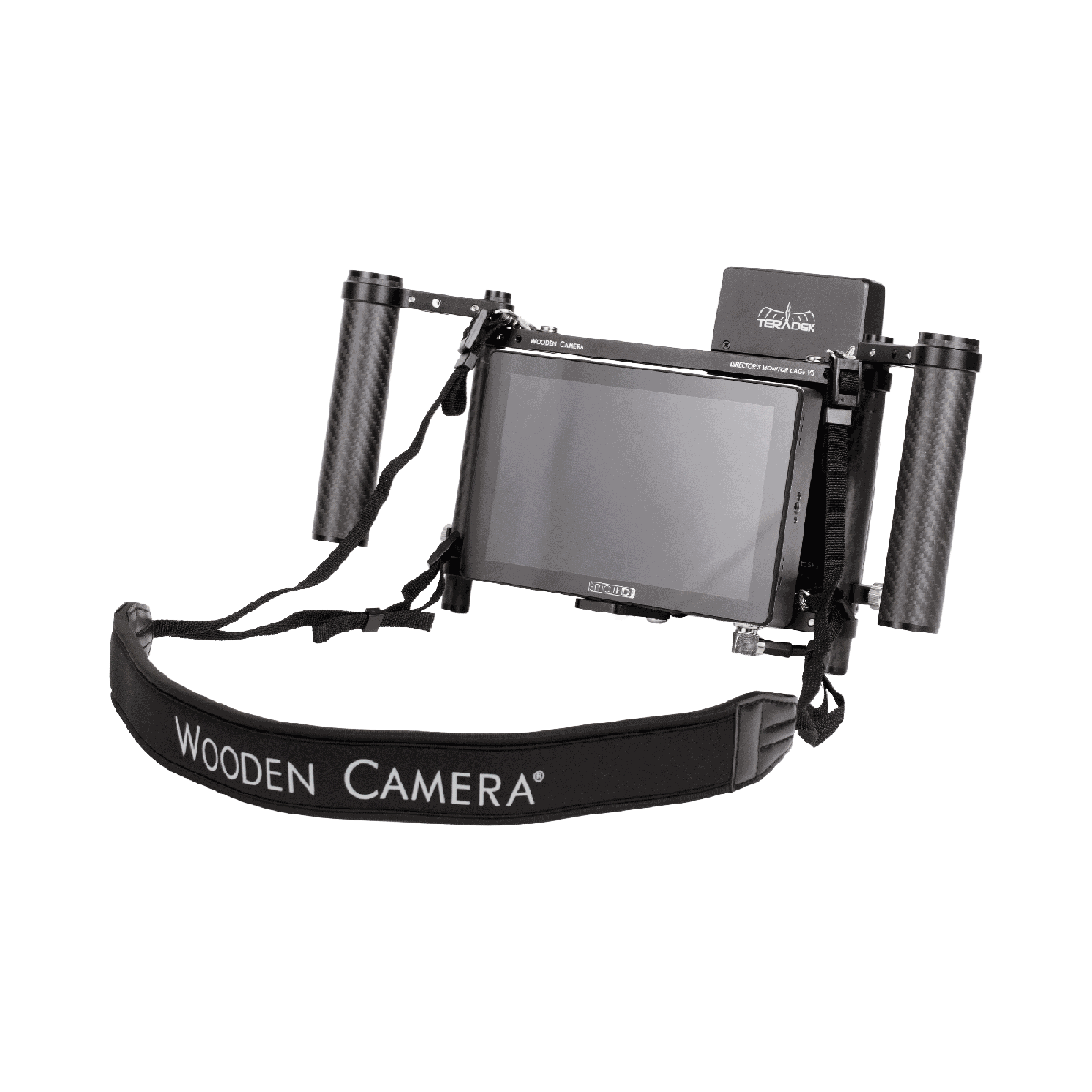

Wooden Camera Director's Monitor Cage v3

The DMC v3 fits any monitor up to 9 inches diagonally and mounts via top, bottom, or rear 1/4-20 points. It's 33% lighter than the previous version and adds a dual-direction swing-away bracket, a quick-release neck strap, dual Teradek mounting areas, and carbon-fiber handles - arriving mostly pre-assembled, with rod-based height adjustment and tool-less folding hand grips positioned via built-in 15mm clamps.

The battery mounting plate takes V-Mount or Gold Mount and swings away in either direction for access to the monitor's rear and any wireless receivers mounted there; a built-in baby-pin clamp with a locking thumbwheel adds stand mounting. An adaptable sun shade snaps to the cage frame and doubles as a protective cover when folded down, and a padded neck strap with four mounting points and quick-release clips is included. Pair with the WC V-Mount or WC Gold Mount (Dual D-Tap) plate to power the monitor and a wireless receiver from one battery.

Monitor CompatibilityUp to 9 in diagonal - SmallHD, TVLogic, Ikan, Odyssey, Atomos, and others
Battery MountV-Mount or Gold Mount attachment points
Weight476 g (1 lb)
Dimensions279.4 x 177.8 x 101.6 mm (11 x 7 x 4 in)
MountingTop, bottom, or rear 1/4-20
HandlesCarbon fiber, tool-less fold
IncludedSun shade, neck strap, Teradek mounting hardware
Discover the Director's Monitor Cage v3
