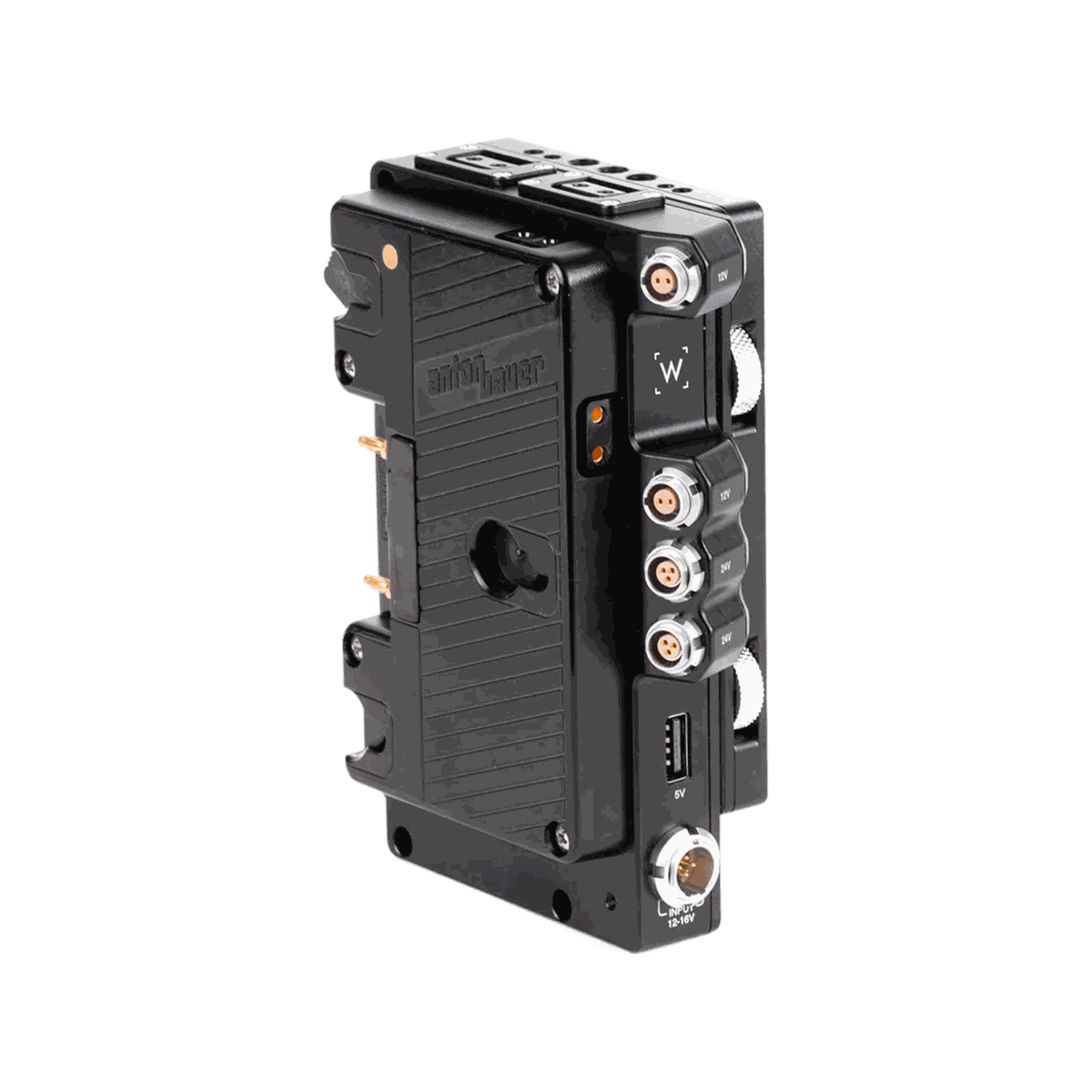

Wooden Camera D-Box for DSMC2

This D-Box adds power distribution, standardized remote start/stop, and hot-swap capability to RED DSMC2 brains - Monstro, Helium, Gemini, Weapon, Epic-W, Scarlet-W, Raven, and other DSMC2 bodies. It's completely tool-less, using a cable-less interface that attaches straight to the back of the camera, the Base Expander Module, RED Volt Expander Module, or a Teradek O-Mod.

Connectors include 2x 2-pin (12V), 2x 3-pin Fischer (24V with run/stop), 4x D-Tap (12V), and 1x USB, all contoured to the Expander Module so cables install without collisions; any ARRI-standard start/stop trigger works through the 3-pin Fischer port. Physical fuses are replaced by a processor-controlled amp limit switchable to 3.8, 5.8, or 9A - if accessories exceed the set current, only the accessory outputs disable, leaving the camera running, and a reset button restores power once the load is corrected. All D-Box units are RED 7.0+ (IPP2) firmware compatible.
