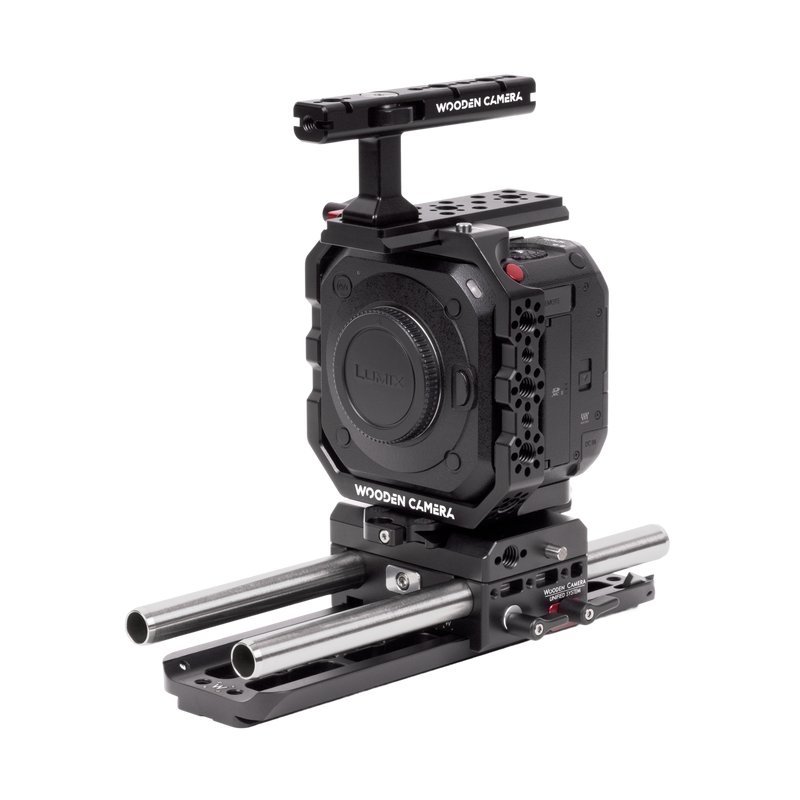

Wooden Camera Camera Cage for Panasonic BGH1/BS1H

Built for the box-style Panasonic Lumix BGH1 and BS1H, this cage wraps the camera body and adds 1/4-20 and 3/8-16 mounting points along both sides, plus a NATO rail with a spring-loaded pin so accessories cannot walk off during a shoot. Engraved focal-plane markings help set flange distance for adapted lenses.

An ARCA-Swiss top plate slides into a dovetail slot on top of the cage and can be repositioned forward or back, giving rows of 1/4-20 and 3/8-16 ARRI-standard mounts for a Mini Top Handle or Tilt Monitor Hinge, or a straight-through connection to a gimbal or drone.

Camera CompatibilityPanasonic Lumix BGH1, BS1H
Weight260 g (0.5 lb)
Dimensions110 x 65 x 115 mm (4.3 x 6.5 x 4.5 in)
Mounting Points1/4-20 and 3/8-16, ARRI-standard locating pins
Top InterfaceARCA-Swiss top plate, slides fore/aft
Accessory RailNATO rail, spring-loaded retention pin
Included2x 1/4-20 flat head screw
