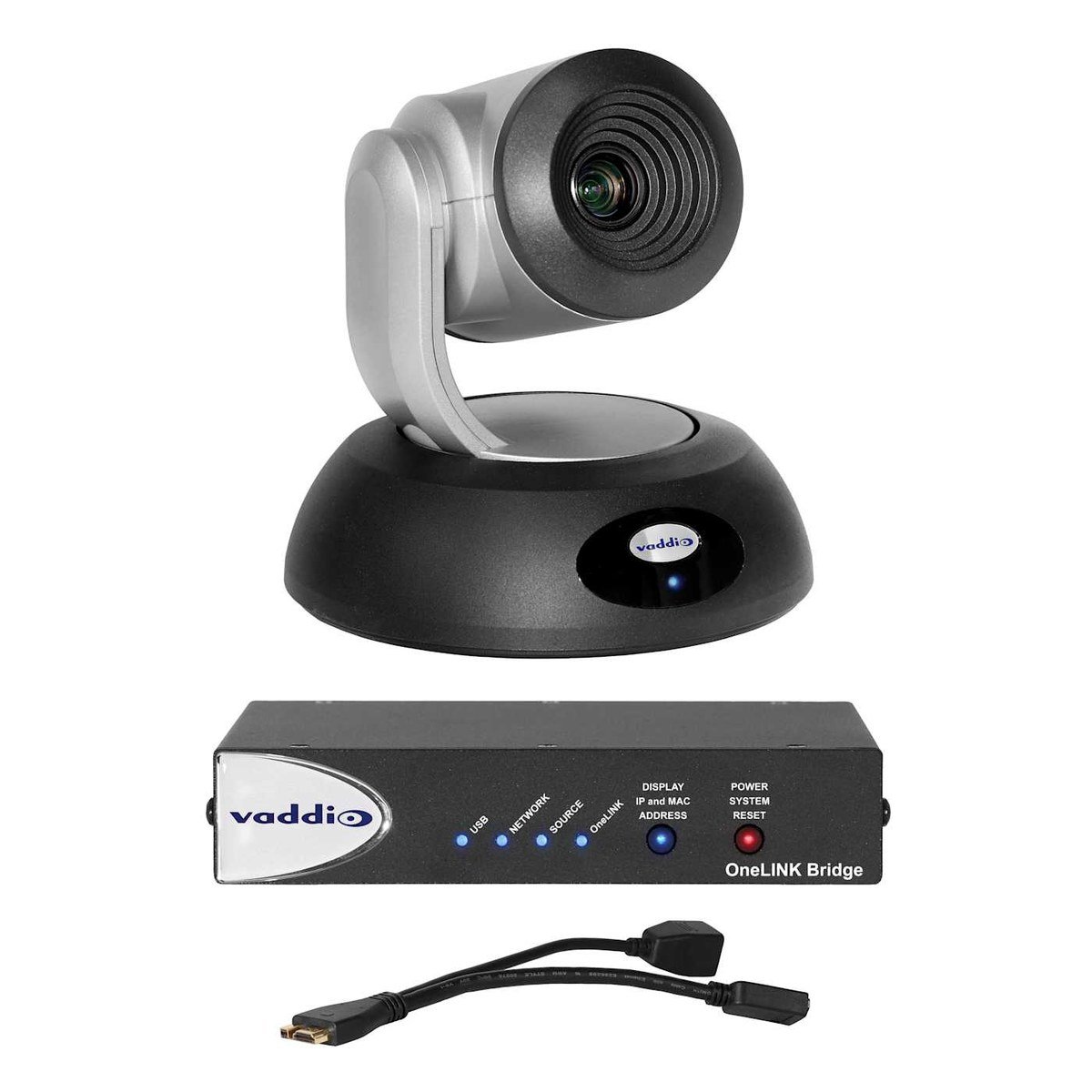

Vaddio RoboSHOT 12 OneLINK Bridge System for Cisco SX Codecs

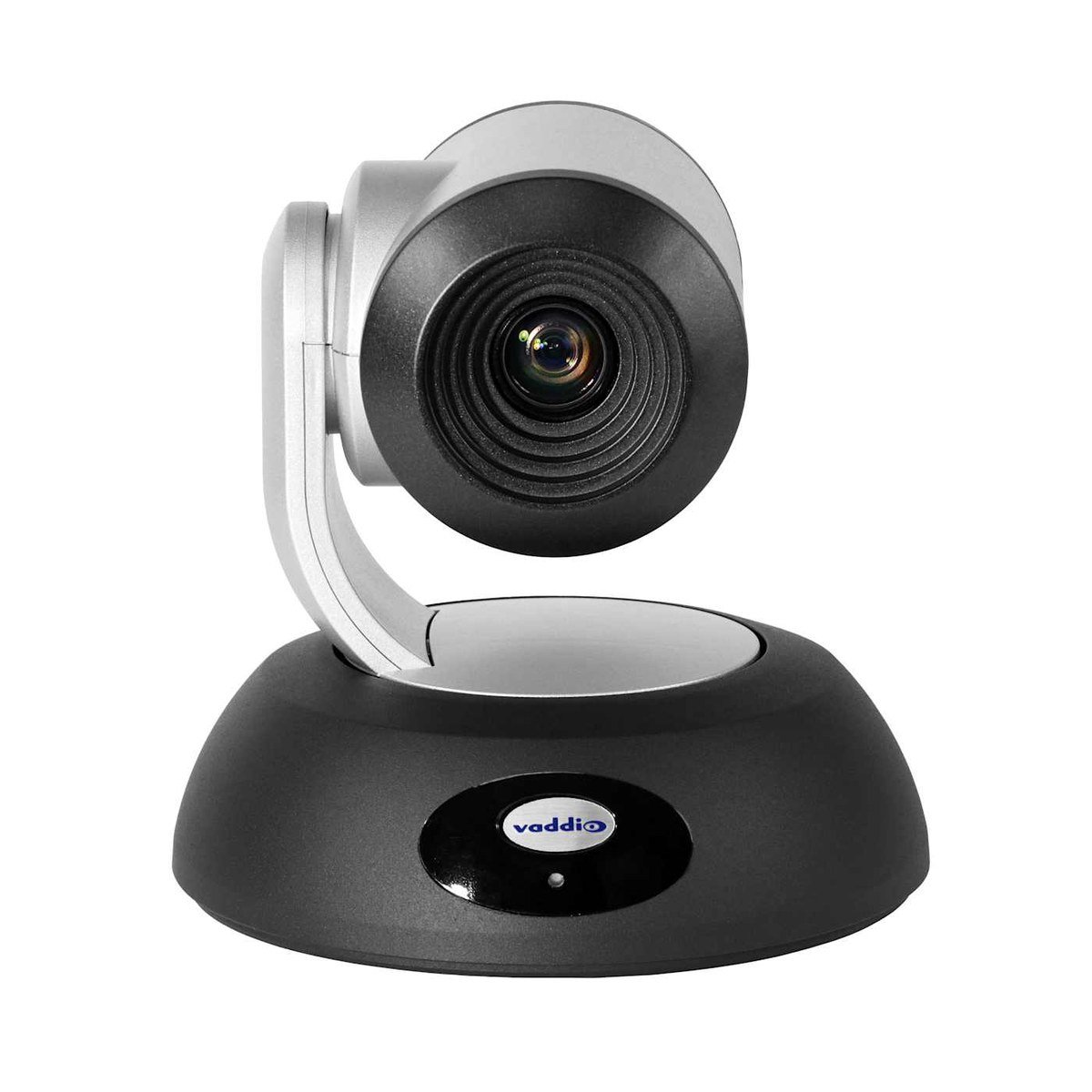

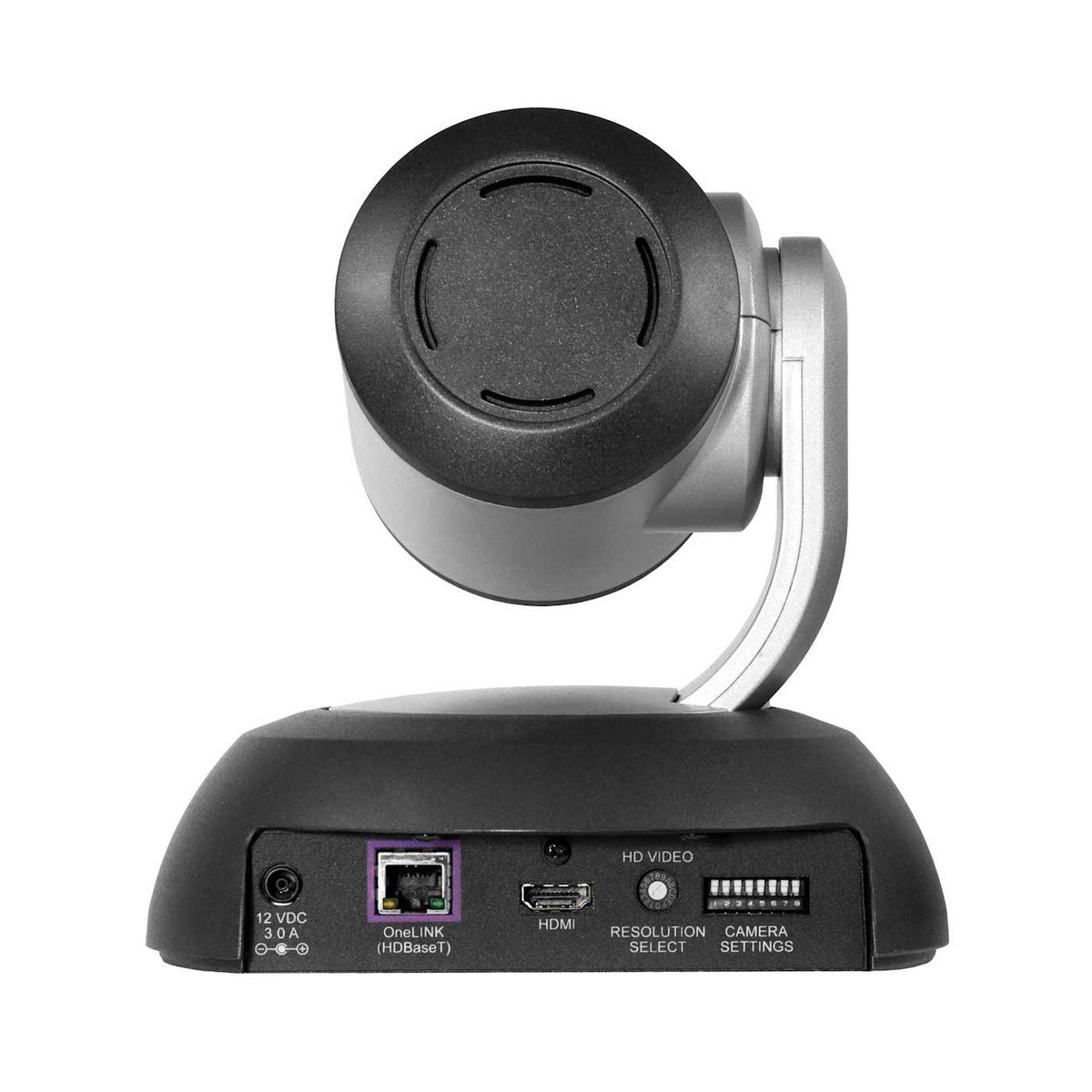

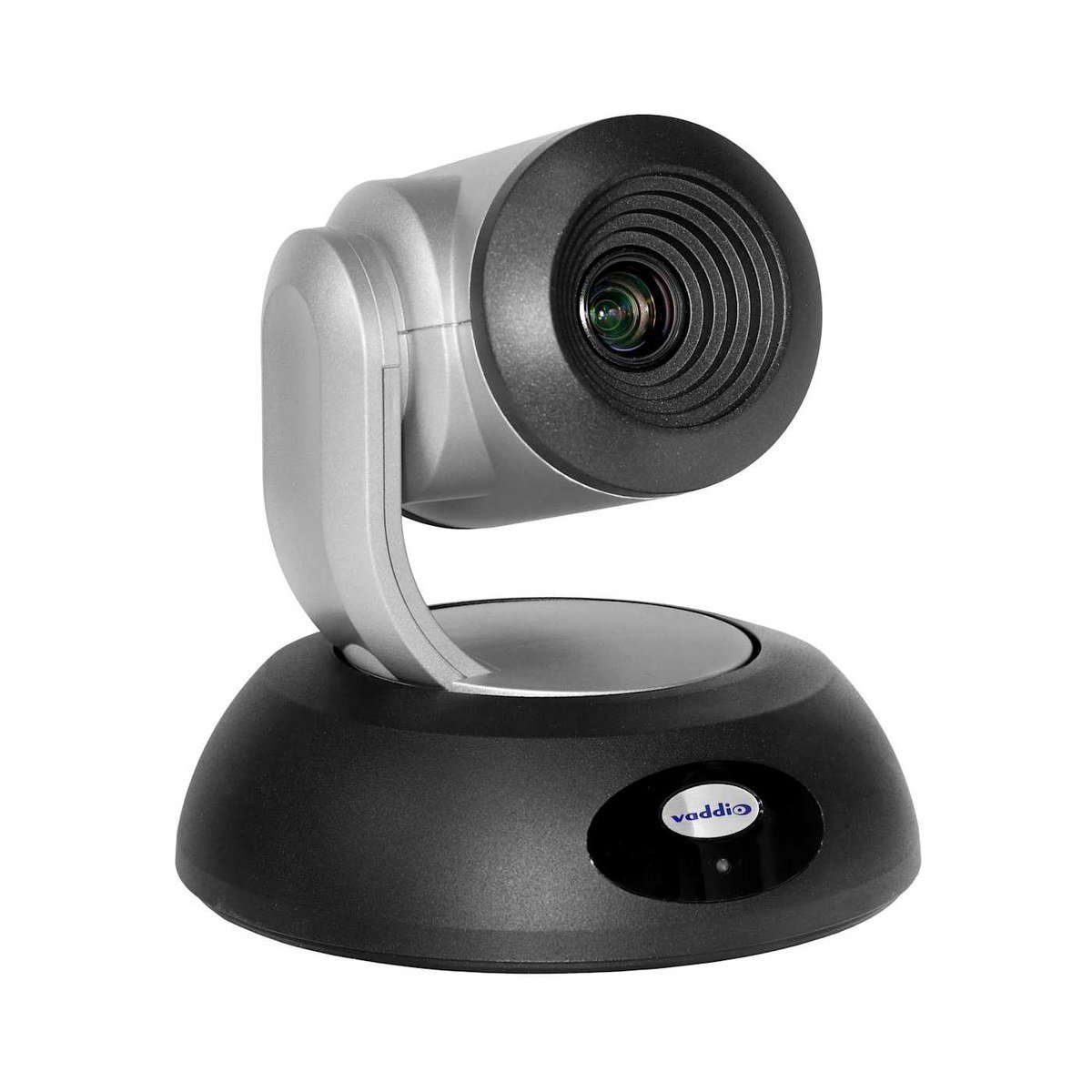

This system pairs the RoboSHOT 12 HDBT PTZ camera with a OneLINK Bridge interface and the exact cabling to integrate with a Cisco SX codec. The camera is built on a 1/2.8-type Exmor CMOS sensor with 10x optical zoom (12x in super-wide mode) and a 73-degree wide field of view, shooting up to 1080p/60. Silent direct-drive motors and Tri-Synchronous Motion move pan, tilt and zoom together between presets so shots arrive already framed.

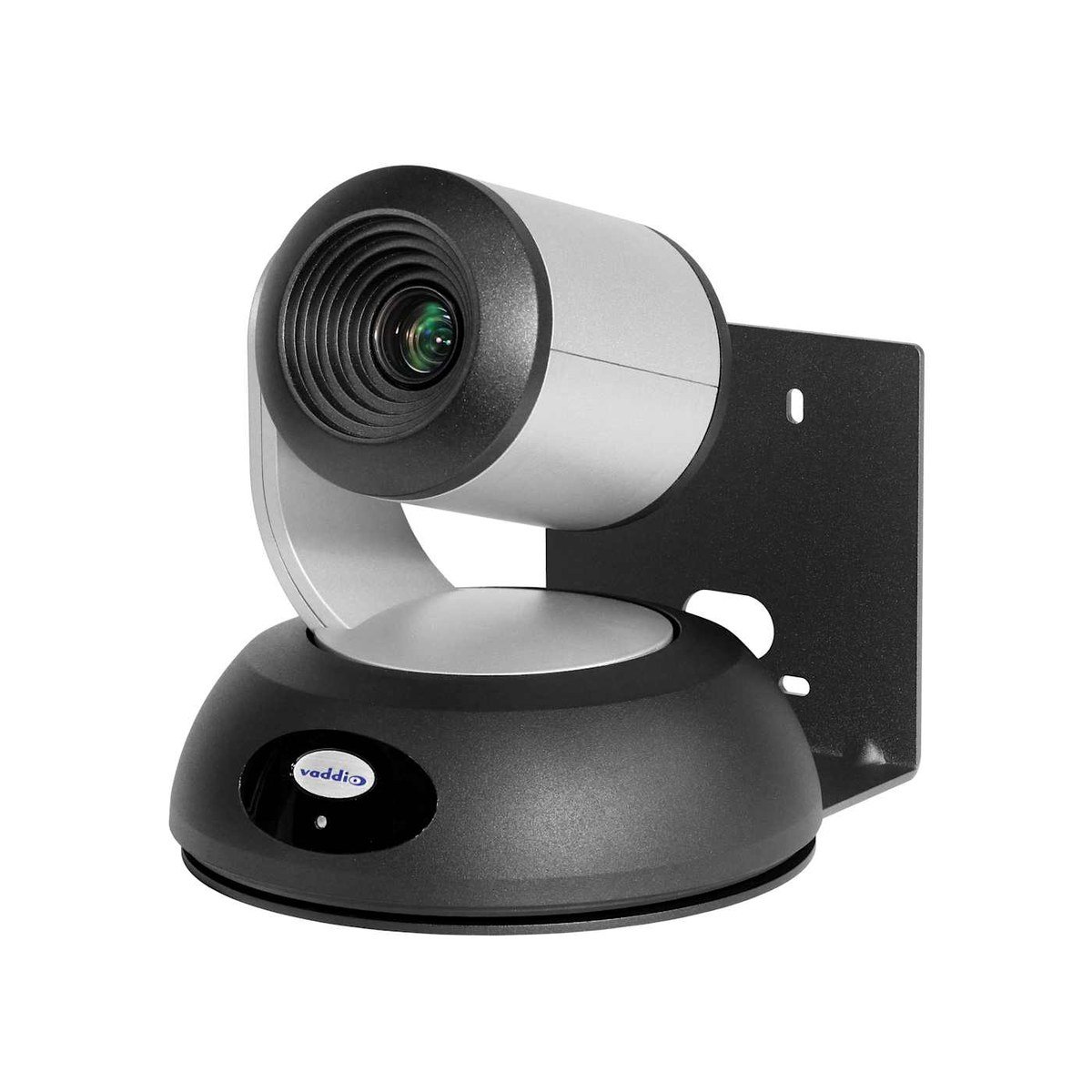

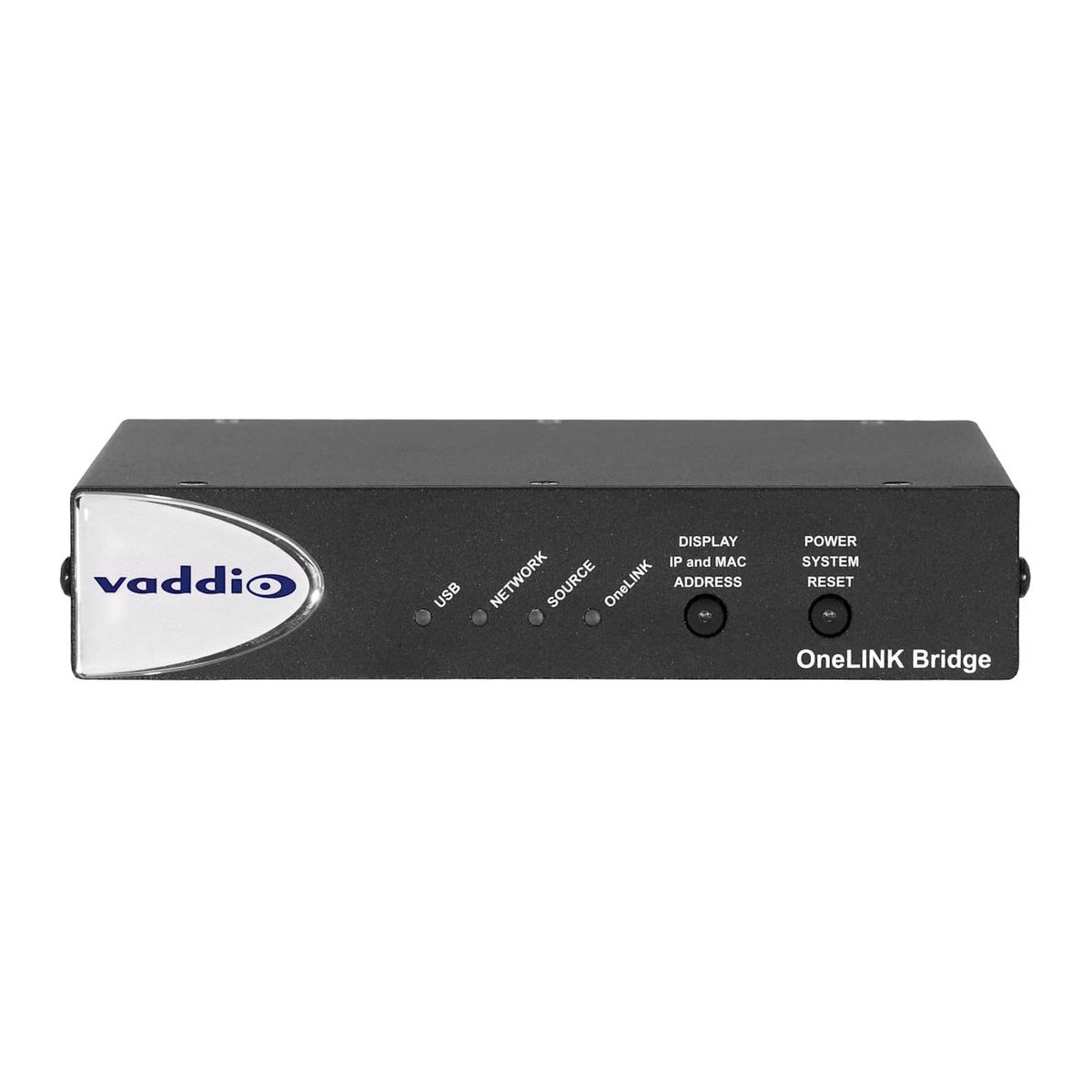

A single Cat-5e run over HDBaseT carries power, control and video to the OneLINK Bridge, which adds Vaddio's AV Bridge functionality: simultaneous uncompressed USB 3.0, HDMI and HD-SDI outputs plus balanced audio, so the same camera feeds both the Cisco codec and a soft conferencing client. In the box: the RoboSHOT 12 HDBT camera, a black Thin Profile Wall Mount with hardware, the Vaddio IR Remote Commander, the OneLINK Bridge interface, a 48V power supply, four 3-position phoenix connectors, the Cisco CAB-PHD4XS2-SPLIT and directional Cat-5 cables for the SX20, a 3 ft HDMI cable, a 6 ft USB 3.0 cable, two EZCamera RS-232 control adapters, the Cisco application note, and quick-start guides.
