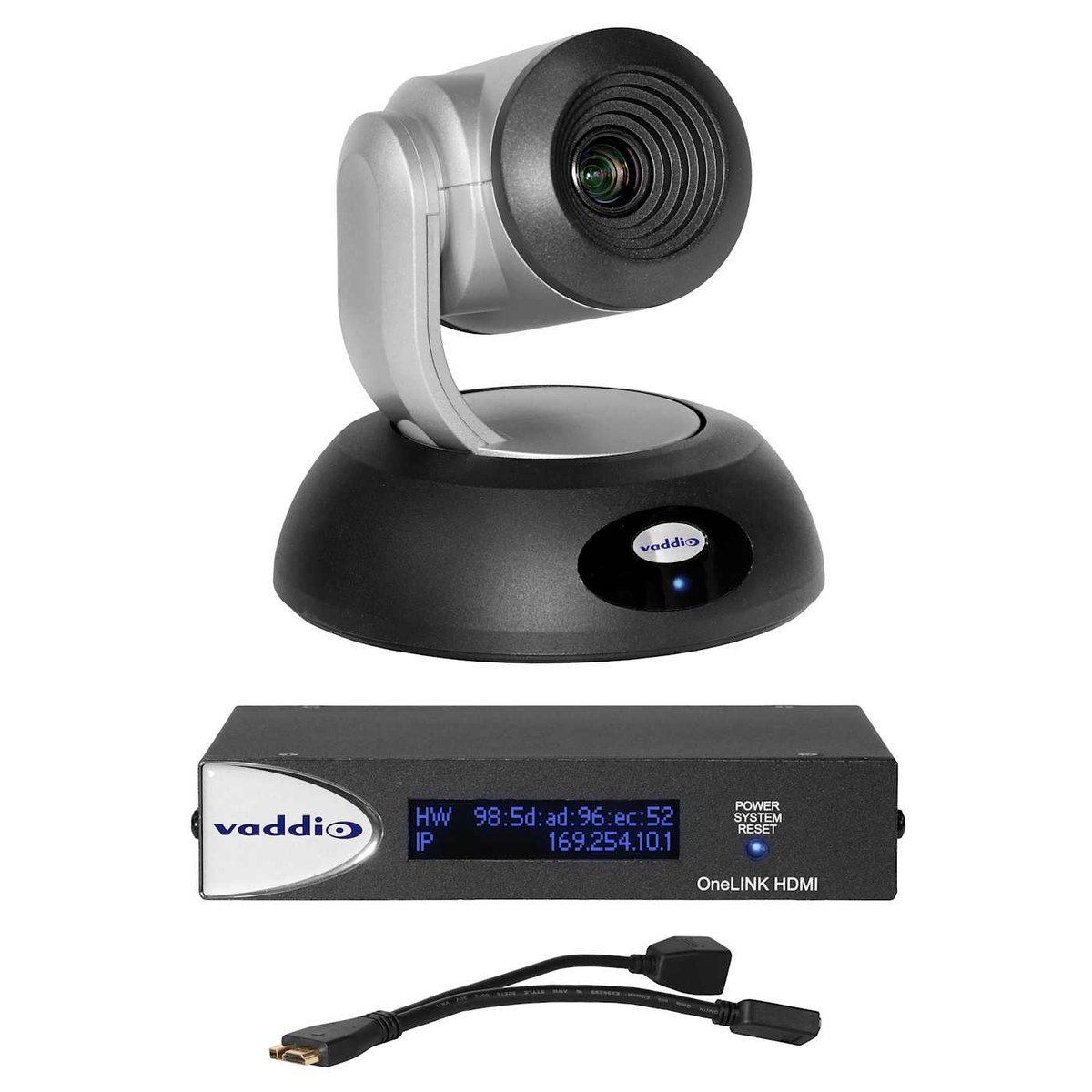

Vaddio RoboSHOT 12 OneLINK HDMI System for Cisco SX Codecs

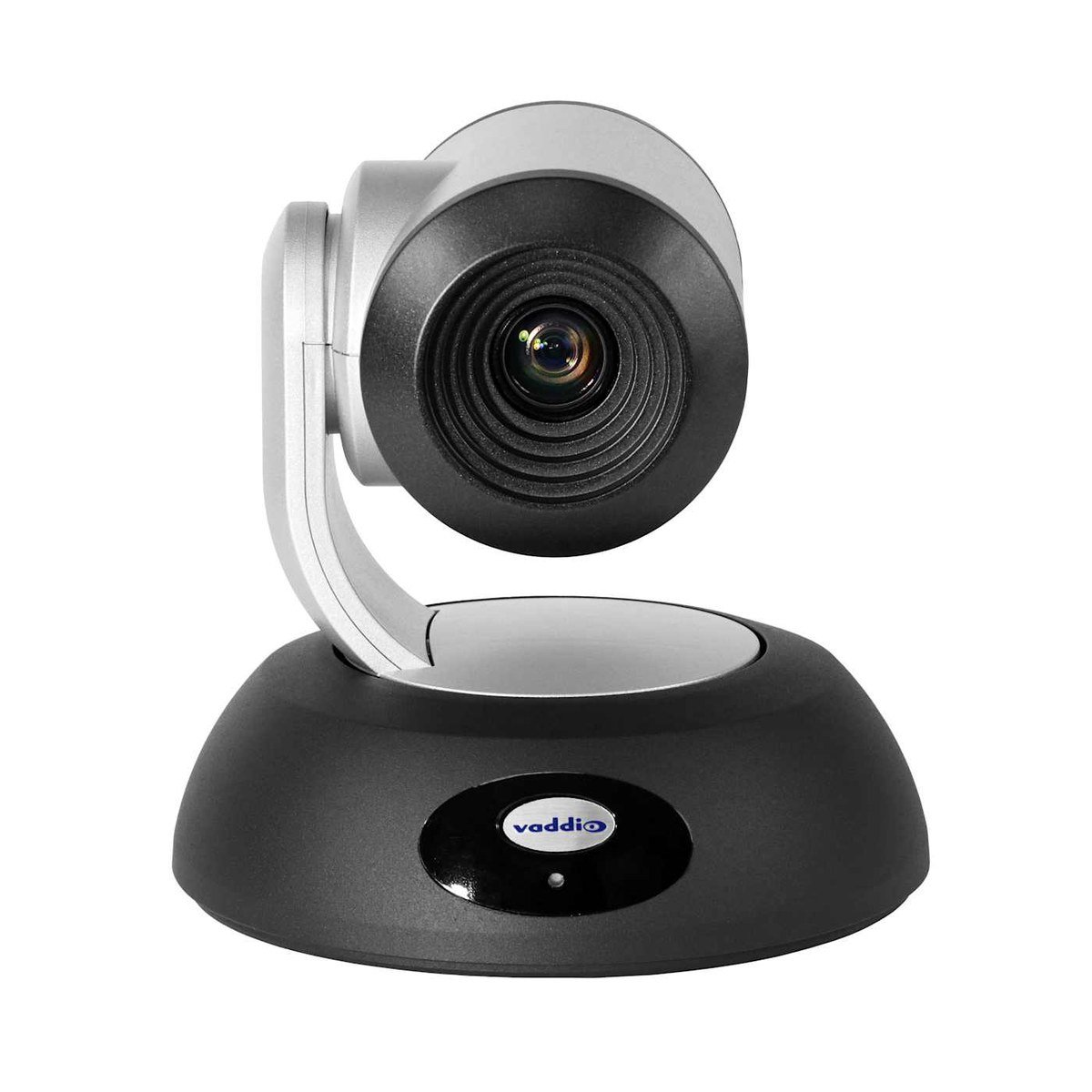

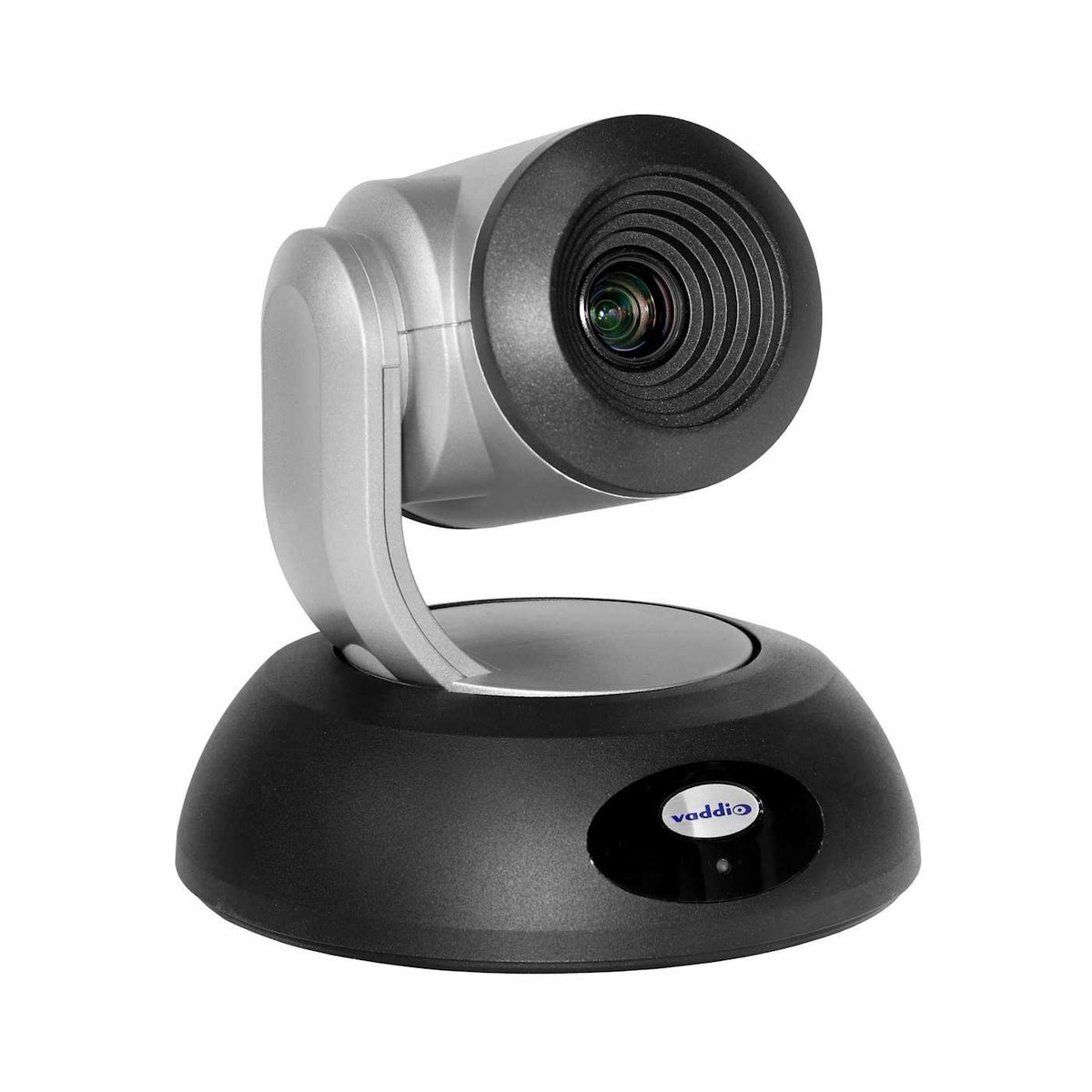

This system pairs the RoboSHOT 12 HDBT PTZ camera with a OneLINK HDMI interface and the exact cabling to drop it into a Cisco SX codec room. The camera is built on a 1/2.8-type Exmor CMOS sensor with 10x optical zoom (12x in super-wide mode) and a 73-degree wide field of view, shooting up to 1080p/60. Silent direct-drive motors and Vaddio's Tri-Synchronous Motion move pan, tilt and zoom together between presets, so shots arrive framed without the stop-and-zoom crawl of ordinary PTZ heads.

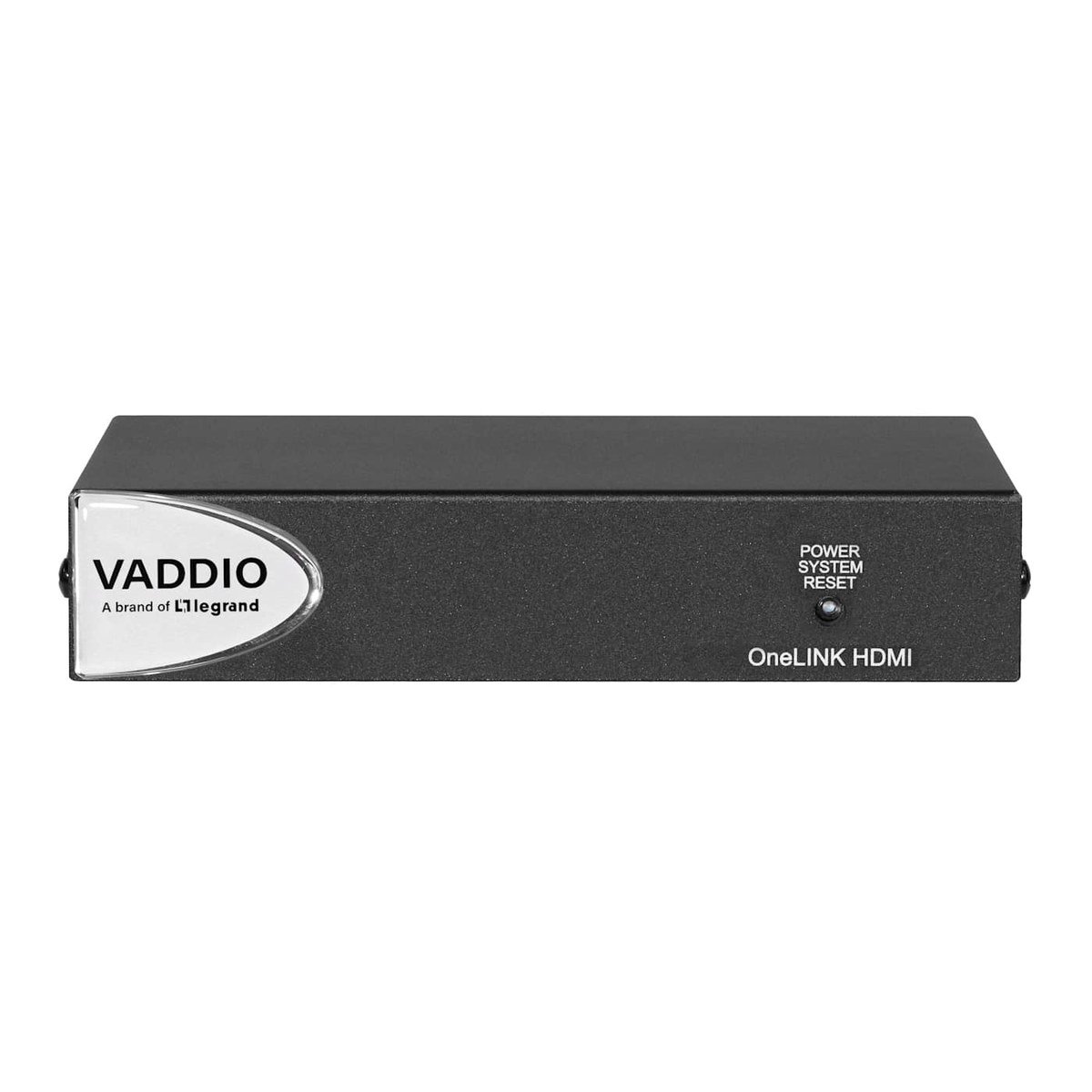

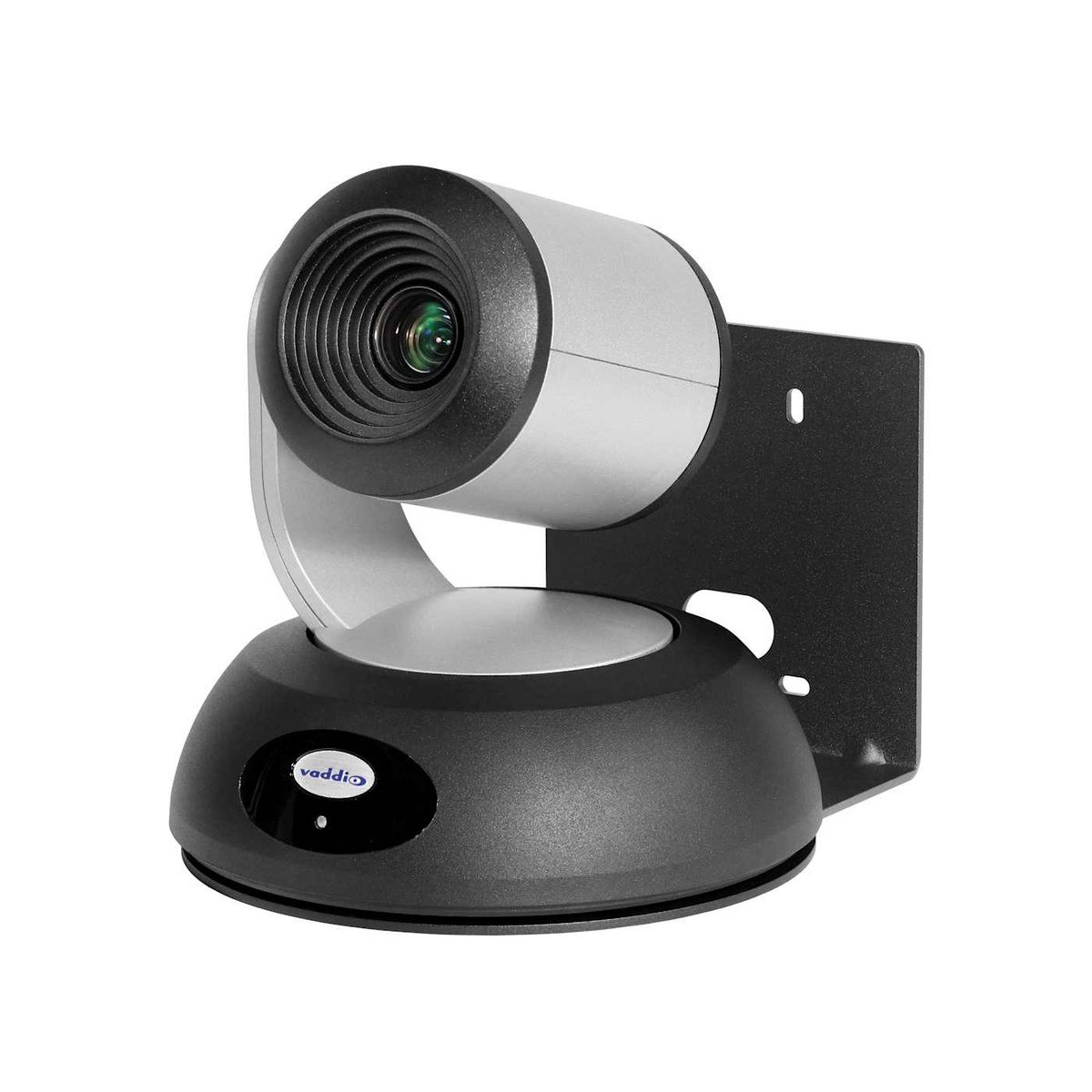

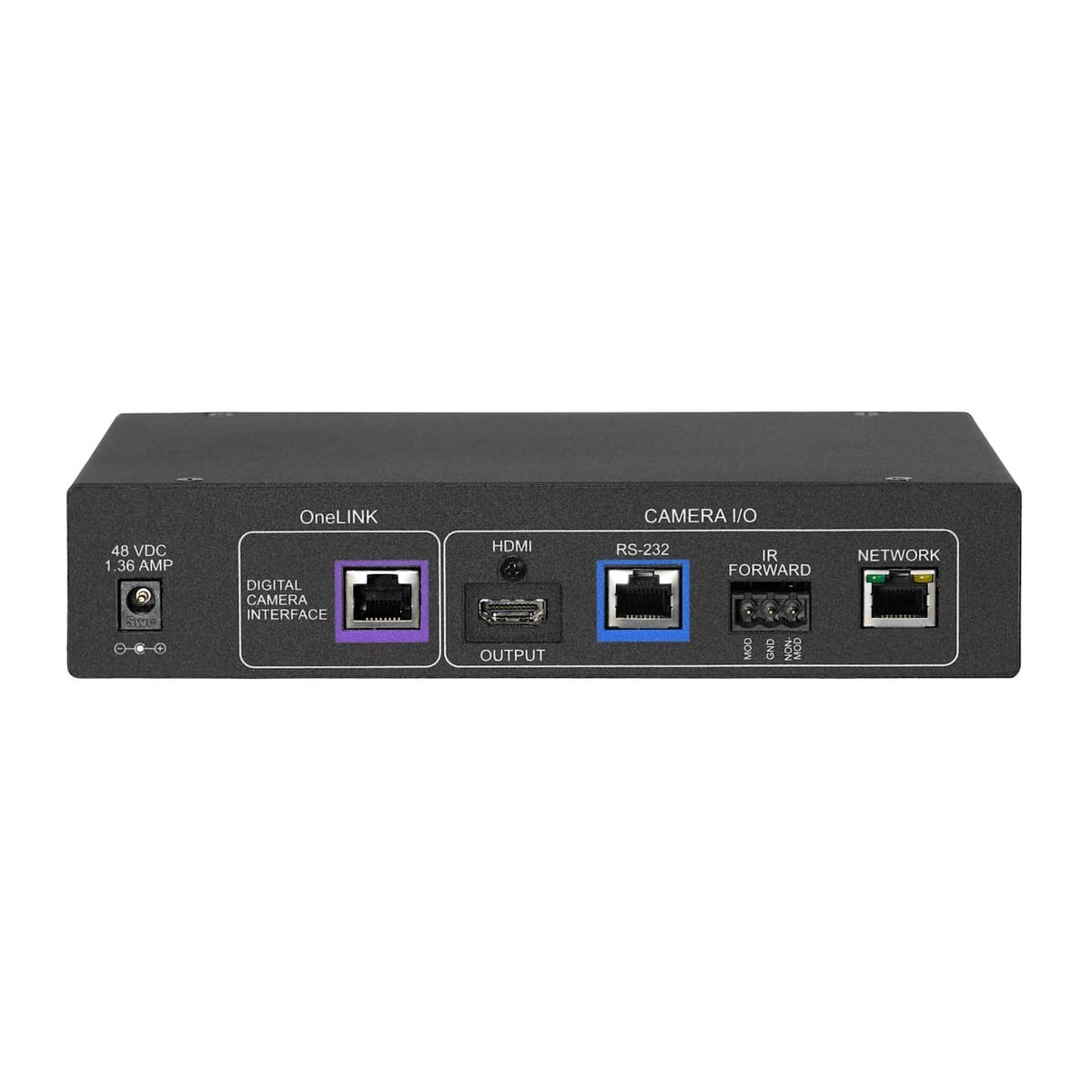

A single Cat-5e run over HDBaseT carries power, control and video between the camera and the OneLINK HDMI interface, extending the camera up to 328 ft from the rack. In the box: the RoboSHOT 12 HDBT camera, a black Thin Profile Wall Mount with hardware, the Vaddio IR Remote Commander, the OneLINK HDMI interface, a 48V power supply, the Cisco CAB-PHD4XS2-SPLIT and directional Cat-5 cables for the SX20, a 3 ft HDMI cable, two EZCamera RS-232 control adapters (including one for Cisco 9-pin ports), the Cisco application note, and quick-start guides.
