Tascam US-1x2HR USB Audio Interface

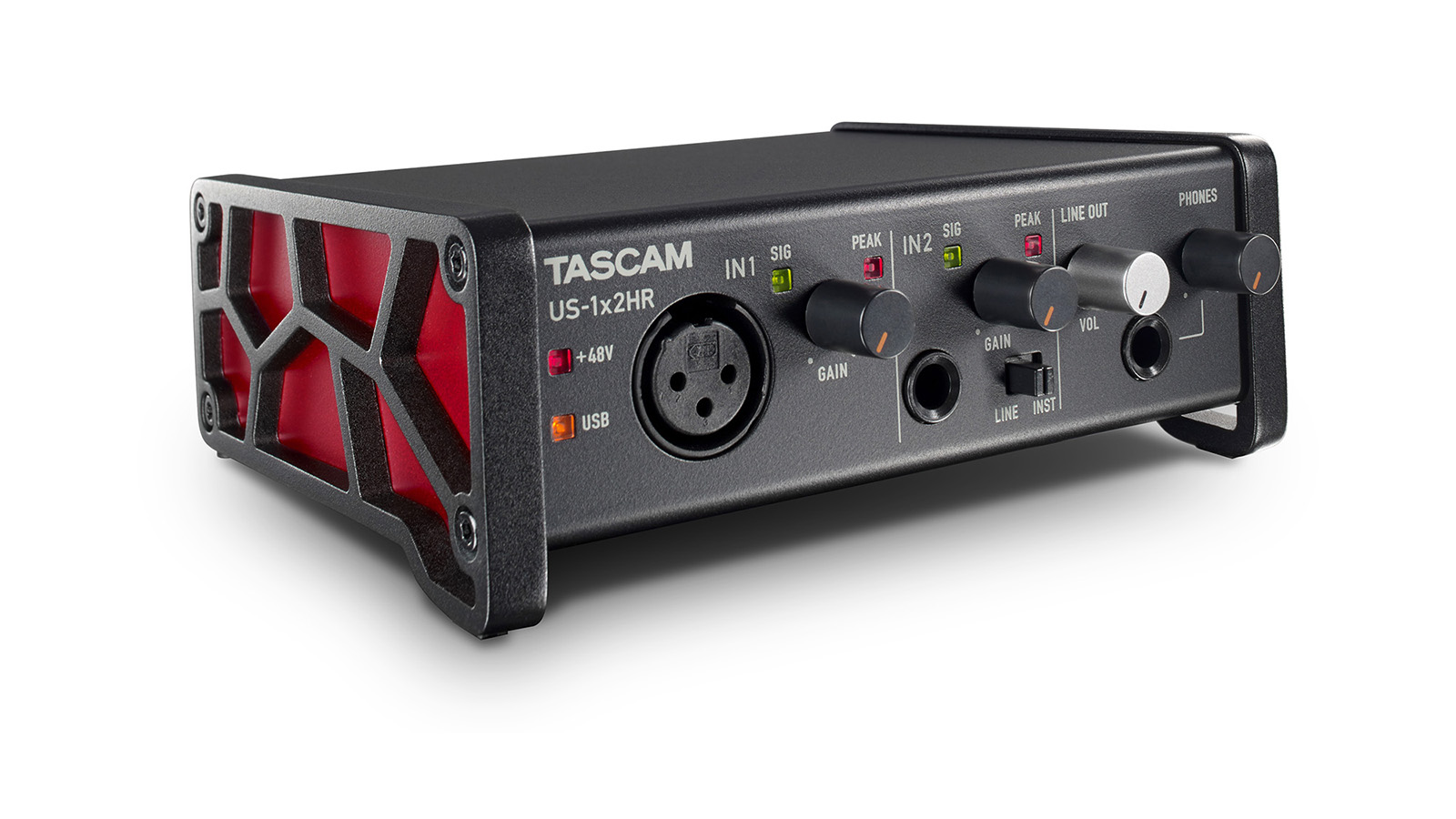

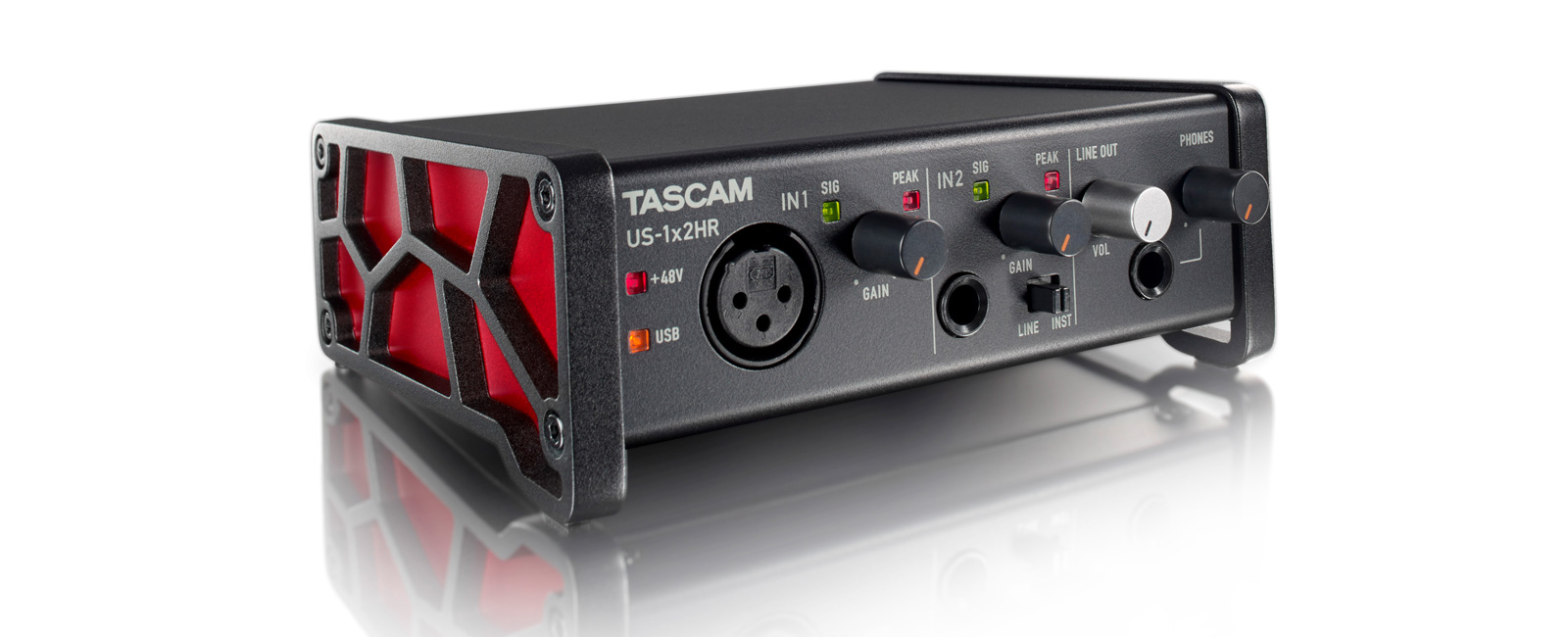

The US-1x2HR is a two-in, two-out USB interface with one balanced XLR microphone input and one TRS line input that also takes a guitar directly. It records at up to 192 kHz and 24-bit, which is more headroom than most single-mic sessions need but costs nothing to have.

Bus power over USB-C means no adapter on a laptop setup, and the built-in loopback function plus OBS support make it straightforward to route computer audio back into a stream. Mic input impedance is 2.4 kohms, line output impedance is 100 ohms, the connection is USB 2.0 high speed, and the unit draws 1.8 W.

MIC IN (IN 1) Input impedance2. k ohms
LINE OUT Output impedance100 ohms
MIC IN (IN 1) ConnectorXLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
USB FormatUSB2.0 HIGH SPEED (480Mbps)
Sampling frequency44.1k/48k/88.2k/96k/176.4k/192k Hz
Quantization bit rate24bit
Power consumption1.8W
Dimensions146(W) x 55(H) x 120(D)mm (including protrusions)
