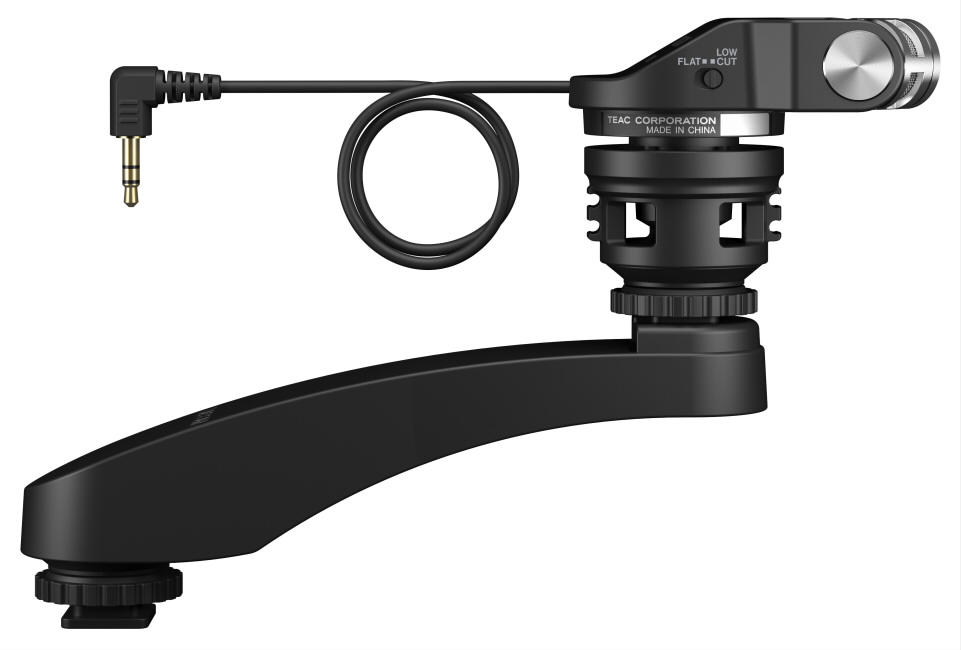

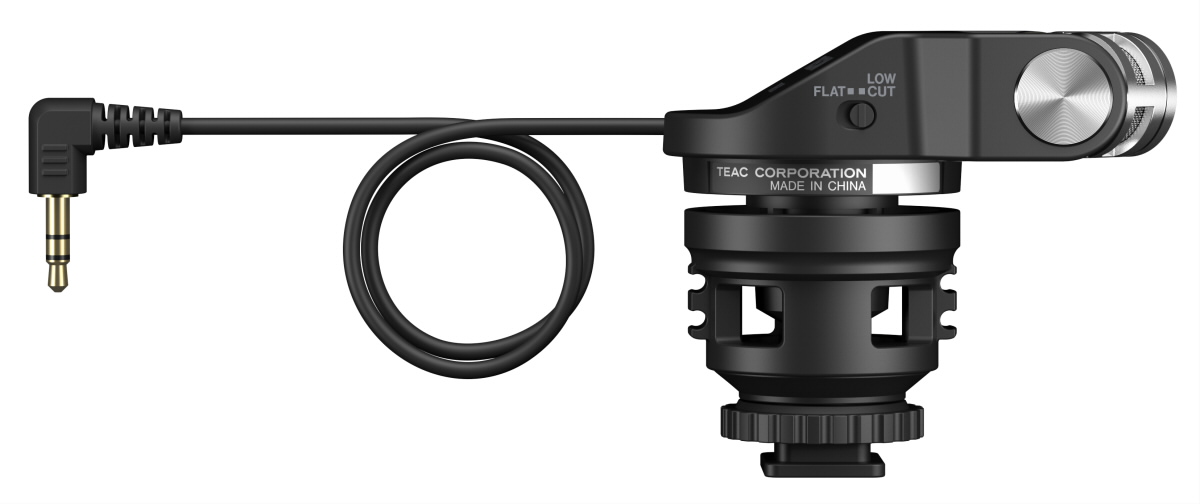

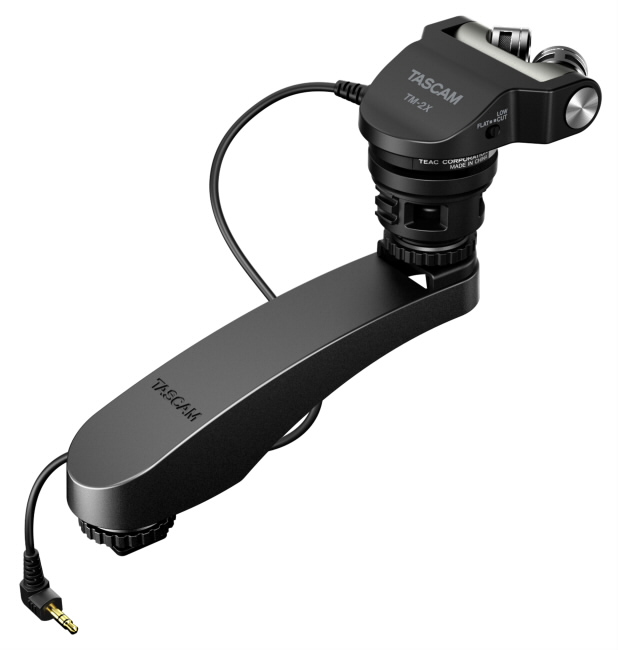

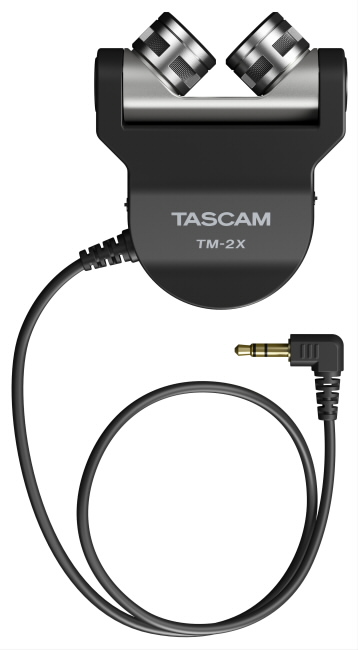

Tascam TM-2X X-Y Stereo Condenser Microphone for DSLR Cameras
The TM-2X is an X-Y stereo condenser microphone that mounts in a camera shoe and replaces the on-board microphone of a DSLR or mirrorless body. The X-Y arrangement keeps the two capsules coincident, so the stereo image stays phase-coherent and collapses cleanly to mono, which matters when the audio is destined for a mixed programme.
It runs entirely on plug-in power to the JEITA CP-1203A standard, so there is no battery to check before a shoot. Frequency range is 50 Hz to 20 kHz, maximum input level is 120 dB SPL, and the microphone weighs 2.4 oz. A low-cut filter and a sensitivity switch cover the difference between a quiet interview and a loud location.
| Microphone type | Cardioid |
|---|---|
| Input output ratings Maximum input level | 120dB SPL (at 1kHz, SENS: H, LCF=Flat, RL: 2.2k ohms, Vcc: 2.5V) |
| Input output ratings Output impedance | 1.6k ohms (RL: 2.2k ohms, Vcc: 2.5V) |
| Frequency range | 50Hz to 20kHz |
| Power | Plug-in power (JEITA standard CP-1203A) |
| Dimensions (WxHxD) TM-2X main unit | 2.24" x 2.3" x 2.7" / 57 x 59 x 69 mm (excluding cable and connectors) |
| Weight TM-2X main unit | 2.4 oz. / 75 g |
| Input output ratings S/N ratio | 74dB (at 1kHz, 1Pa, A weighted) |
